UT-15702-A - Homelite Expand-It Brush Cutter Attachment Brush Cutter Parts Diagram

Expand-It Brush Cutter Attachment

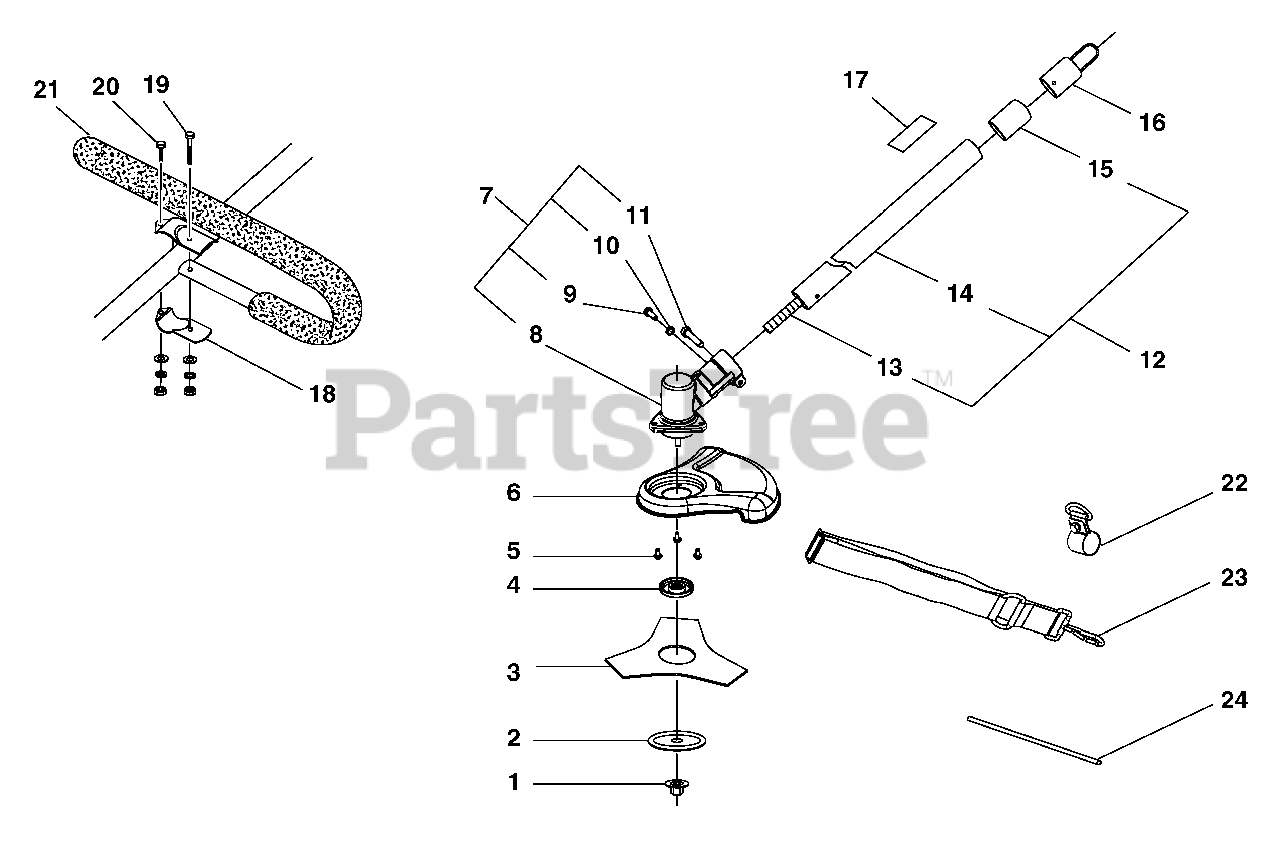

Brush Cutter Parts Diagram

  • Title

1

Homelite 099078001002

NUT-LOCK(M8)
(Superseded to 662450001)

$1.49

$

In Stock, only 4 left!

0

2

Homelite 099078001003

FLANGED WASHER

$

$

Not available

3

Homelite 099075001001

BLADE
(Superseded to 638006004)

$12.99

$

Usually ships in 3-7 days

0

4

Homelite 099078001005

CUPPED WASHER

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 099075001002

SCREW-HEX (10-24UNC) WITH DISH WASHER
(Superseded to 88049)

$

$

Not available

6

Homelite 099075001003

SHIELD
(Superseded to 638120001)

$

$

Not available

7

Homelite 099075001004

GEARHEAD & SCREW ASSEMBLY

Note: (INCLUDES KEY NOS. 8-11)

$

$

Not available

8

Homelite 099075001005

GEAR HEAD ASSEMBLY
(Superseded to 308210008)

$

$

Not available

9

Homelite 099078001030

HEXAGON HEAD SCREW (M5 X 12 mm)

$

$

Not available

10

Homelite 099078001031

LOCK WASHER

$

$

Not available

11

Homelite 099078001032

CAP HEAD SCREW (M6 X 30 mm)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 099068001016

BOOM ASSEMBLY

Note: (INCLUDES KEY NOS. 13-15)

$29.99

$

Usually ships in 3-7 days

0

13

Homelite 099068001017

FLEXIBLE SHAFT

$

$

Not available

14

Homelite 099068001018

DRIVE SHAFT HOUSING ASSEMBLY

$

$

Not available

15

Homelite 099078001037

DUST PROOF COVER

$

$

Not available

16

Homelite 099078001039

HANGER
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

17

Homelite 099075001006

WARNING LABEL
(Superseded to 984102001)

$

$

Not available

18

Homelite 099075001007

HANDLE BAR CLAMP

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 099075001008

BOLT ASSEMBLY (LONG)

$

$

Not available

20

Homelite 099075001009

BOLT ASSEMBLY (SHORT)

$

$

Not available

21

Homelite 099075001010

J-HANDLE AND GRIP
(Superseded to A08130)

$15.99

$

Usually ships in 3-7 days

0

22

Homelite 099075001011

STRAP HANGER
(Superseded to 07255)

$

$

Not available

23

Homelite 099075001012

SHOULDER STRAP ASSEMBLY
(Superseded to 944701)

$6.99

$

Usually ships in 3-7 days

0

24

Homelite 099078001040

HOLDING PIN

$1.49

$

In Stock, only 4 left!

0

Homelite 983000605

OPERATOR'S MANUAL (099075001013)

$

$

Not available

Homelite NLA

REPAIR SHEET (REV:00)

$

$

Currently unavailable
