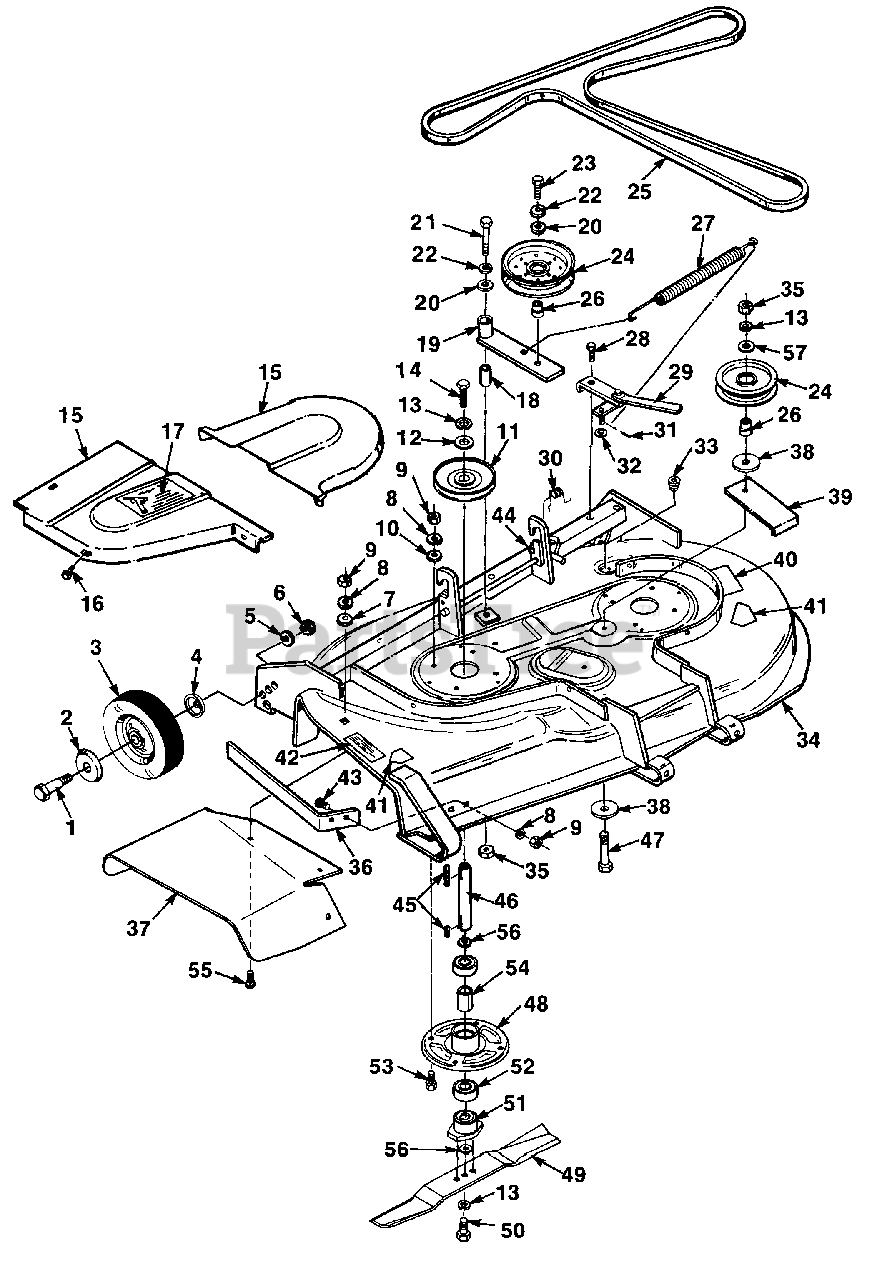

UT-36002-A - Homelite 34" Rotary Mower Attachment Mower Parts Diagram

34" Rotary Mower Attachment

Mower Parts Diagram

  • Title

1

Homelite JA344629

BOLT

$

$

Currently unavailable

2

Homelite JA312187

RETAINER

$

$

Not available

3

Homelite JA153675

TIRE ASSEMBLY

$

$

Currently unavailable

4

Homelite JA309795

WASHER

$

$

Currently unavailable

5

Homelite JA446152

WASHER
(Superseded to 83020)

$

$

Not available

6

Homelite JA443818

NUT- Jam

$

$

Currently unavailable

7

Homelite JA453009

WASHER
(Superseded to UP07173)

$

$

Not available

8

Homelite JA446136

WASHER
(Superseded to UP03791)

$

$

Not available

9

Homelite JA443106

NUT- Hex 5/16 x 18
(Superseded to 81018)

$

$

Not available

10

Homelite JA452006

WASHER

$

$

Currently unavailable

11

Homelite JA392601

PULLEY- R & L Drive

$

$

Currently unavailable

12

Homelite JA310711

WASHER

$

$

Not available

13

Homelite JA446142

WASHER- 3/8 Lock

$

$

Not available

14

Homelite JA400300

SCREW

$

$

Currently unavailable

15

Homelite JA990954

COVER- Belt (R.H.)

$

$

Currently unavailable

Homelite JA990956

COVER- Belt (L.H.)

$

$

Currently unavailable

16

Homelite JA375978

BOLT

$

$

Not available

17

Homelite JA332034

DECAL

$

$

Currently unavailable

18

Homelite JA344951

BUSHING

$

$

Currently unavailable

19

Homelite JA126524

ARM ASSEMBLY

$

$

Currently unavailable

20

Homelite JA453011

WASHER
(Superseded to PS84010)

$

$

Not available

21

Homelite JA400274

SCREW

$

$

Not available

22

Homelite JA446140

WASHER
(Superseded to UP07435)

$

$

Not available

23

Homelite JA400268

SCREW
(Superseded to UP07178)

$

$

Not available

24

Homelite JA154796

PULLEY

$

$

Currently unavailable

25

Homelite JA392606

BELT- Cutter drive

$

$

Currently unavailable

26

Homelite JA344952

STAND-OFF

$

$

Currently unavailable

27

Homelite JA344981

SPRING

$

$

Currently unavailable

28

Homelite JA408862

SCREW- 1/4-20 x 7/8

$

$

Currently unavailable

29

Homelite JA126522

SPRING RELEASE ASSEMBLY

$

$

Currently unavailable

30

Homelite JA344955

SPRING

$

$

Currently unavailable

31

Homelite JA460014

PIN- Cotter

$

$

Not available

32

Homelite JA453023

WASHER- Plain 1/4
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite JA375977

PLUG- Wash-Out

$

$

Currently unavailable

34

Homelite JA991031

HOUSING- Mower

$

$

Currently unavailable

35

Homelite JA443110

NUT

$

$

Not available

36

Homelite JA392605

TOE GUARD

$

$

Currently unavailable

37

Homelite JA991171

CHUTE- Extension

$

$

Currently unavailable

38

Homelite JA309457

WASHER

$

$

Not available

39

Homelite JA993311

IDLER SUPPORT

$

$

Currently unavailable

40

Homelite JA336737

DECAL

$

$

Currently unavailable

41

Homelite JA339460

DECAL- Warning

$

$

Not available

42

Homelite JA336736

DECAL

$

$

Currently unavailable

43

Homelite JA440080

BOLT

$

$

Currently unavailable

44

Homelite JA461371

PIN

$

$

Currently unavailable

45

Homelite JA320791

KEY

$

$

Not available

46

Homelite JA339609

CUTTER SHAFT

$

$

Currently unavailable

47

Homelite JA400268

SCREW
(Superseded to UP07178)

$

$

Not available

48

Homelite JA142192

CUTTER HOUSING ASSEMBLY

$

$

Currently unavailable

49

Homelite JA519015

BLADE- Cutter (set of 2)

$

$

Currently unavailable

50

Homelite JA403753

SCREW

$

$

Not available

51

Homelite JA339608

ADAPTOR- Blade

$

$

Currently unavailable

52

Homelite JA375882

BEARING

$

$

Not available

53

Homelite JA400184

SCREW
(Superseded to UP03381)

$

$

Not available

54

Homelite JA376076

SPACER- Bearing

$

$

Currently unavailable

55

Homelite JA440076

BOLT

$

$

Currently unavailable

56

Homelite JA455055

WASHER

$

$

Not available

57

Homelite JA453011

WASHER
(Superseded to PS84010)

$

$

Not available
