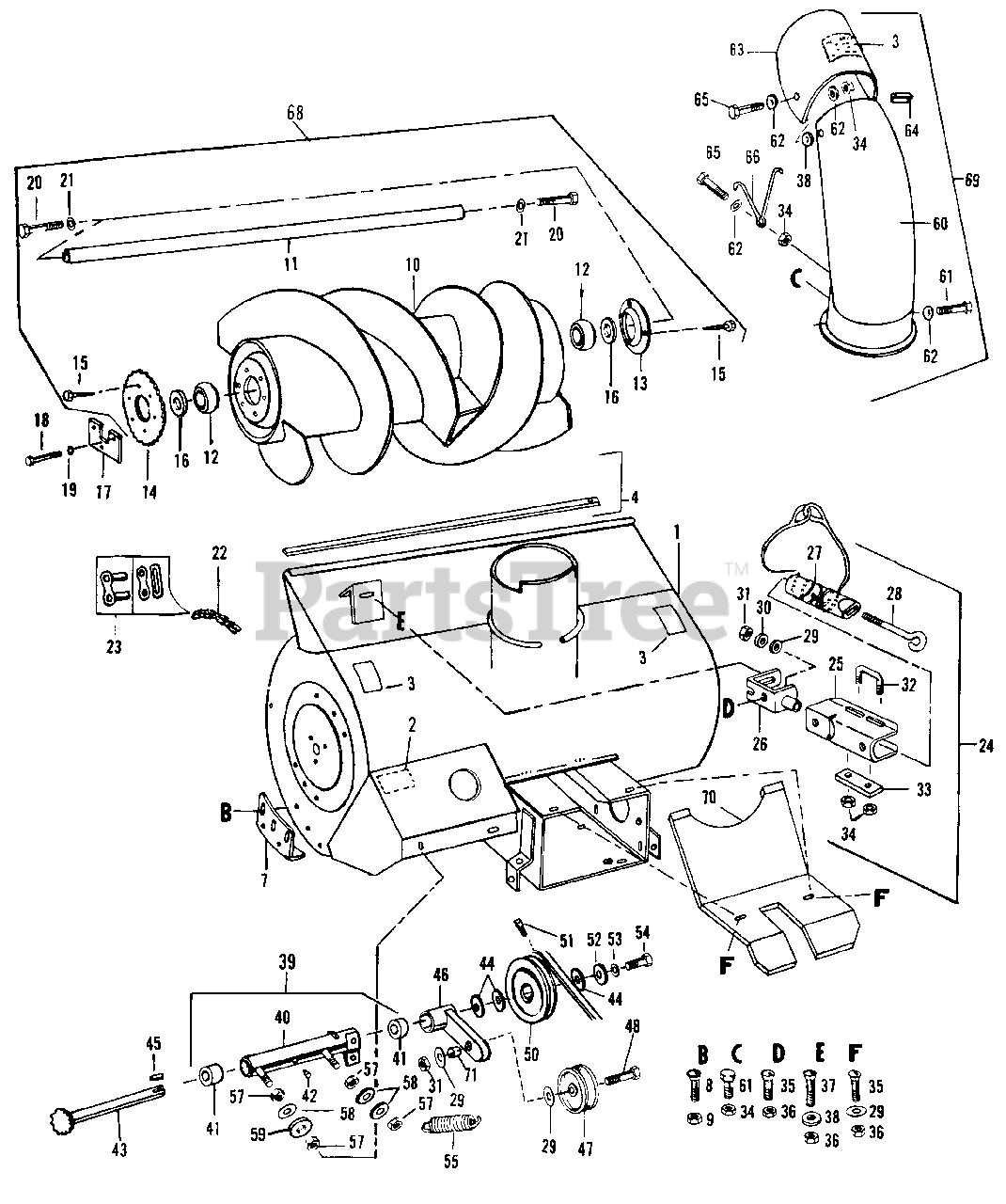

UT-36040 - Homelite Snow Thrower Attachment Auger & Housing Parts Diagram

Snow Thrower Attachment

Auger & Housing Parts Diagram

  • Title

1

Homelite JA 995660

Header & Decal Assembly

$

$

Currently unavailable

2

Homelite JA 995661

Caution Decal

$

$

Currently unavailable

3

Homelite JA 995662

Warning Decal

$

$

Currently unavailable

4

Homelite JA 995745

Scraper Blade Repair Kit

$

$

Currently unavailable

7

Homelite JA 995664

Skid Shoe

$

$

Currently unavailable

8

Homelite JA 441602

Bolt

$2.99

$

Usually ships in 3-7 days

0

9

Homelite JA 444718

Nut & Lock Washer Assembly-5/16-18 Hex

$

$

Not available

10

Homelite JA 995665

Auger Assembly

$

$

Currently unavailable

11

Homelite JA 995666

Auger Shaft

$

$

Currently unavailable

12

Homelite JA 995667

Auger Shaft Bearing

$

$

Currently unavailable

13

Homelite JA 995668

Bearing Flange

$

$

Currently unavailable

14

Homelite JA 995669

Auger Sprocket (35 Tooth)

$

$

Currently unavailable

15

Homelite JA 406162

Self Tapping Screw

$

$

Currently unavailable

16

Homelite JA 995670

Washer

$

$

Not available

17

Homelite JA 995671

Auger Mounting Plate

$

$

Currently unavailable

18

Homelite JA 400182

Bolt - 5/16-18 x 5/8" Hex Head

$

$

Not available

19

Homelite JA 446134

Washer - 5/16" Medium Lock

$

$

Not available

20

Homelite JA 400406

Bolt -1/2-13 x 1 1/4" Hex Head

$

$

Currently unavailable

21

Homelite JA 446152

Washer - 1/2" Medium Lock

$

$

Currently unavailable

22

Homelite JA 995672

Auger Drive Chain (70 Links)

$

$

Currently unavailable

23

Homelite JA 995673

Repair Kit For Chain

$

$

Currently unavailable

24

Homelite JA 995674

Stack Drive Bracket Assembly

$

$

Currently unavailable

25

Homelite JA 995675

Stack Drive Shroud

$

$

Currently unavailable

26

Homelite JA 995676

Bracket & Tube Assembly

$

$

Currently unavailable

27

Homelite JA 995677

Cable, Tube & Sleeve Assembly

$

$

Currently unavailable

28

Homelite JA 995678

Eye Bolt

$

$

Currently unavailable

29

Homelite JA 452008

Washer - 7/16" x 1" x .083 Flat

$1.99

$

Usually ships in 3-7 days

0

30

Homelite JA 995679

Spring Washer

$

$

Currently unavailable

31

Homelite JA 995746

Nut - 3/8-16 Hex Lock

$

$

Currently unavailable

32

Homelite JA 995680

"U" Bolt

$

$

Currently unavailable

33

Homelite JA 995681

Friction Strap

$

$

Currently unavailable

34

Homelite JA 995747

Nut

$

$

Currently unavailable

35

Homelite JA 441622

Bolt - 3/8-16 x 3/4" Carriage

$

$

Currently unavailable

36

Homelite JA 444762

Nut & Lock Washer Assembly - 3/8-16 Hex

$

$

Currently unavailable

37

Homelite JA 441624

Bolt - 3/8-16 x 1" Carriage

$

$

Currently unavailable

38

Homelite JA 995682

Washer

$

$

Currently unavailable

39

Homelite JA 995683

Jackshaft Housing & Bushing Assembly

$

$

Currently unavailable

40

Homelite JA 995684

Jackshaft Housing Assembly

$

$

Currently unavailable

41

Homelite JA 995685

Bushing

$

$

Currently unavailable

42

Homelite JA 995686

Grease Fitting

$

$

Currently unavailable

43

Homelite JA 995687

Jackshaft & Sprocket Assembly

$

$

Currently unavailable

44

Homelite JA 995704

Washer - 13/16" x 1 1/2" x .134 Flat

$

$

Currently unavailable

45

Homelite JA 995689

Key

$

$

Currently unavailable

46

Homelite JA 995690

Idler Arm Assembly

$

$

Currently unavailable

47

Homelite JA 995691

Idler Pulley Assembly

$

$

Currently unavailable

48

Homelite JA 400274

Bolt - 3/8-16 x 2 1/2" Hex Head

$

$

Not available

50

Homelite JA 995692

Pulley & Hub Assembly

$

$

Currently unavailable

51

Homelite JA 412014

Screw - 5/16-18 x 1/2" Square Head Cup Point Set

$2.99

$

Usually ships in 3-7 days

0

52

Homelite JA 452006

Washer - -3/8" x 7/8" x .083 Flat

$

$

Currently unavailable

53

Homelite JA 446140

Washer - 3/8" Medium Lock

$

$

Currently unavailable

54

Homelite JA 400258

Bolt - 3/8-16 x 3/4" Hex Head

$

$

Currently unavailable

55

Homelite JA 995693

Spring

$

$

Currently unavailable

57

Homelite JA 443118

Nut - 1/2-13 Hex

$

$

Currently unavailable

58

Homelite JA 452010

Washer - 1/2" x 1 1/4" x .083 Flat

$

$

Currently unavailable

59

Homelite JA 995694

Washer

$

$

Currently unavailable

60

Homelite JA 995695

Deflector & Elbow Assembly

$

$

Currently unavailable

61

Homelite JA 995748

Bolt - 1/4-20 x 1/2" Hex Head

$

$

Currently unavailable

62

Homelite JA 995696

Cable Washer

$

$

Currently unavailable

63

Homelite JA 995697

Decal & Deflector Assembly

$

$

Currently unavailable

64

Homelite JA 995698

Deflector Molding

$

$

Currently unavailable

65

Homelite JA 400108

Bolt -1/4-20 x 3/4" Hex Head

$

$

Not available

66

Homelite JA 995699

Lift Spring Hook

$

$

Currently unavailable

68

Homelite JA 995700

Auger Assembly (Complete)

$

$

Currently unavailable

69

Homelite JA 995701

Deflector & Elbow Assembly (Complete)

$

$

Currently unavailable

70

Homelite JA 995702

Drive Pulley Guard

$

$

Currently unavailable

71

Homelite JA 995703

Spacer

$

$

Currently unavailable
