UT-36040 - Homelite Snow Thrower Attachment Idler Parts Diagram

Snow Thrower Attachment

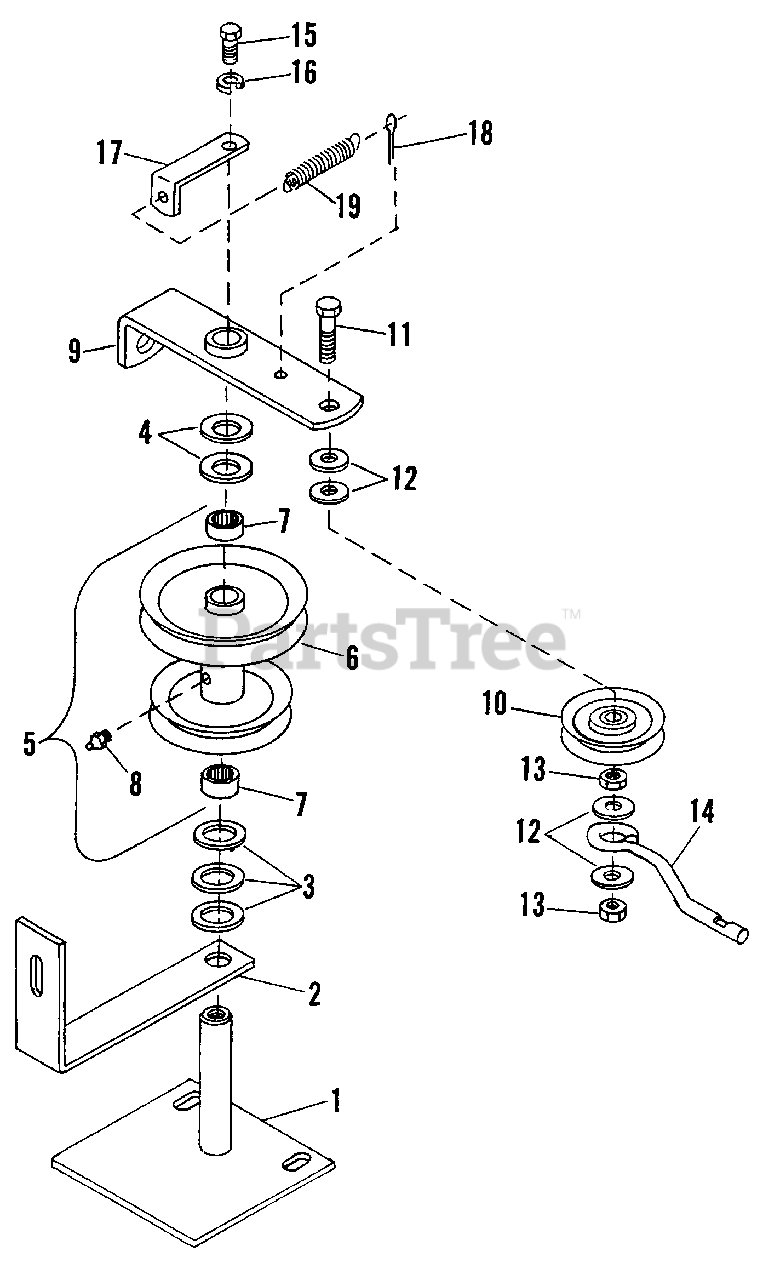

Idler Parts Diagram

  • Title

1

Homelite JA 995749

Pulley Mounting Bracket Assembly

$

$

Currently unavailable

2

Homelite JA 995737

Belt Adjustment Bracket

$

$

Currently unavailable

3

Homelite JA 995704

Washer - 13/16" x 1 1/2" x .134 Flat

$

$

Currently unavailable

4

Homelite JA 995688

Washer

$

$

Currently unavailable

5

Homelite JA 995738

Pulley Housing Assembly (Complete)

$

$

Currently unavailable

6

Homelite JA 995739

Pulley Housing Assembly

$

$

Currently unavailable

7

Homelite JA 995740

Needle Bearing

$

$

Currently unavailable

8

Homelite JA 995741

Grease Fitting

$

$

Currently unavailable

9

Homelite JA 995754

Idler Arm Assembly

$

$

Currently unavailable

10

Homelite JA 995742

Idler Pulley

$

$

Currently unavailable

11

Homelite JA 400274

Bolt - 3/8-16 x 2 1/2" Hex Head

$

$

Not available

12

Homelite JA 452008

Washer - 7/16" x 1" x .083 Flat

$1.99

$

Usually ships in 3-7 days

0

13

Homelite JA 995746

Nut - 3/8-16 Hex Lock

$

$

Currently unavailable

14

Homelite JA 995743

Belt Gauge Wire

$

$

Currently unavailable

15

Homelite JA 400258

Bolt - 3/8-16 x 3/4" Hex Head

$

$

Currently unavailable

16

Homelite JA 446140

Washer - 3/8" Medium Lock

$

$

Currently unavailable

17

Homelite JA 995750

Spring Anchor Bracket

$

$

Currently unavailable

18

Homelite JA 995751

Spring Anchor Pin

$

$

Currently unavailable

19

Homelite JA 995752

Idler Release Spring

$

$

Currently unavailable
