UT-40520 (099858001) - Homelite Water Pump Figure A Parts Diagram

Water Pump

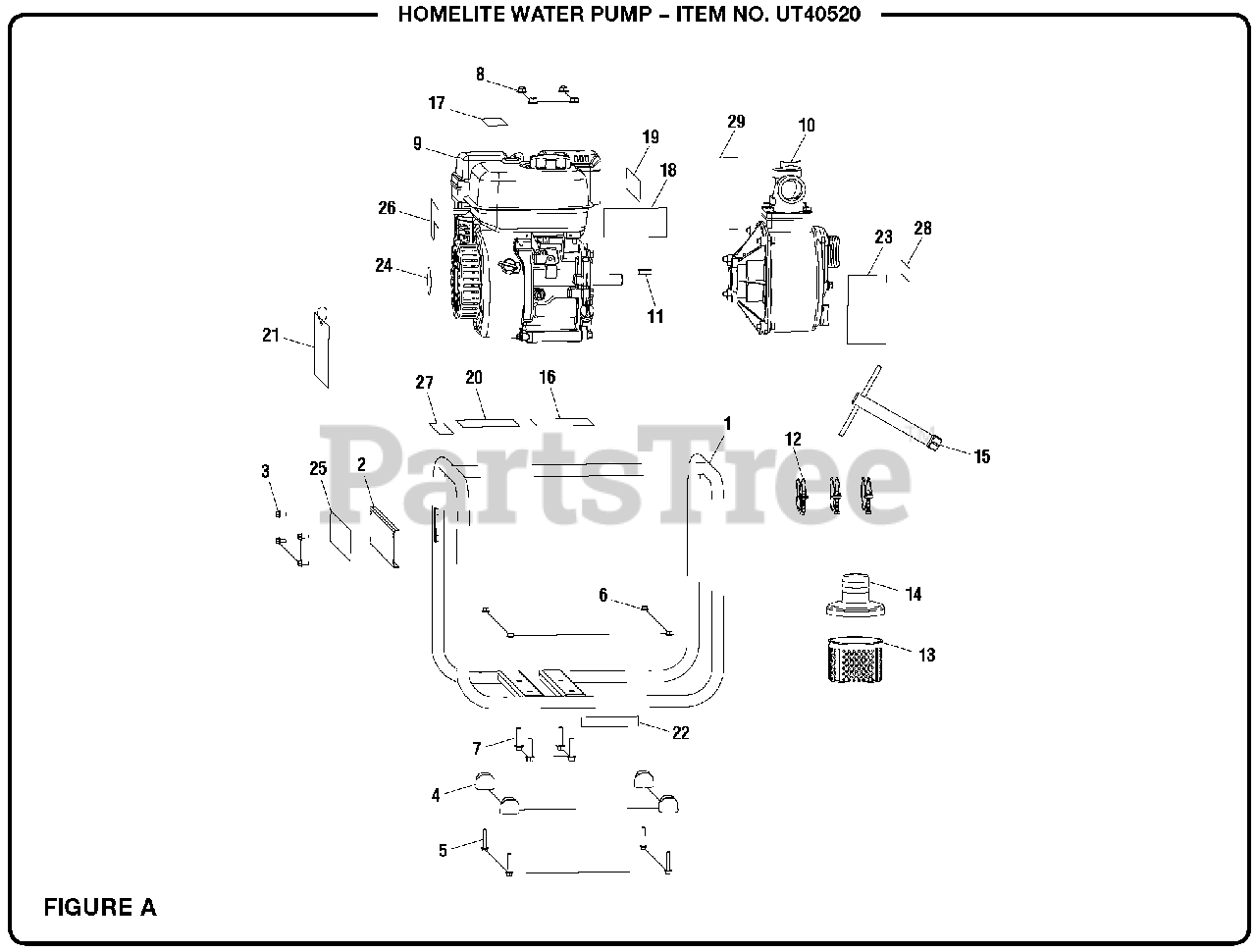

Figure A Parts Diagram

  • Title

1

Homelite 308471047

Frame Assembly

Note: (Inc Key Nos 2-6)

$

$

Currently unavailable

2

Homelite 678973004

Front Panel

$11.99

$

Usually ships in 3-7 days

0

3

Homelite 660975011

Bolt (M6 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 570554015

Rubber Foot

$

$

Not available

5

Homelite 660975012

Bolt (M6 x 35 mm, Flange Hd)

$

$

Not available

6

Homelite 660975013

Lock Nut (M6, Flange Hd)

$

$

Not available

7

Homelite 661505027

Bolt (M8 x 35 mm, Flange Hd)

$

$

Not available

8

Homelite 678774011

Lock Nut (M8)

$

$

Not available

9

Engine (RATO 179cc)

Note: OWT Industries, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

10

Homelite 311198001

Pump Assembly

$

$

Not available

11

Homelite 678424005

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 308257001

Hose Clamp

$

$

Not available

13

Homelite 519710007

Filter

$

$

Not available

14

Homelite 519710009

Filter Cap

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 560901008

Spark Plug Wrench

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 940680055

Hot Surface Label

$

$

Not available

17

Homelite 940515028

CPSC Label

$3.49

$

Usually ships in 3-7 days

0

18

Homelite 940654251

Danger Label

$

$

Not available

19

Homelite 940872003

E85 Label

$1.49

$

In Stock, only 2 left!

0

20

Homelite 940947009

Combustion Label

$

$

Not available

21

Homelite 940473010

Danger Hangtag

$

$

Not available

22

Homelite 940708019

Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 940617127

Quick Start Label

$

$

Not available

24

Homelite 940633029

Recoil Housing Label

$

$

Not available

25

Homelite 940707102

Performance Label

$

$

Not available

26

Homelite 940647096

Choke Label

$

$

Not available

27

Homelite 940803018

EMC Label

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 941081002

Do Not Operate Label

$

$

Currently unavailable

29

Homelite 940654256

Fire Danger Label

$

$

Currently unavailable

Homelite 990000708

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 990000710

Quick Reference Guide

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0
