UT-41002 - Homelite String Trimmer 15 in. Line Trimmer Parts Diagram

String Trimmer

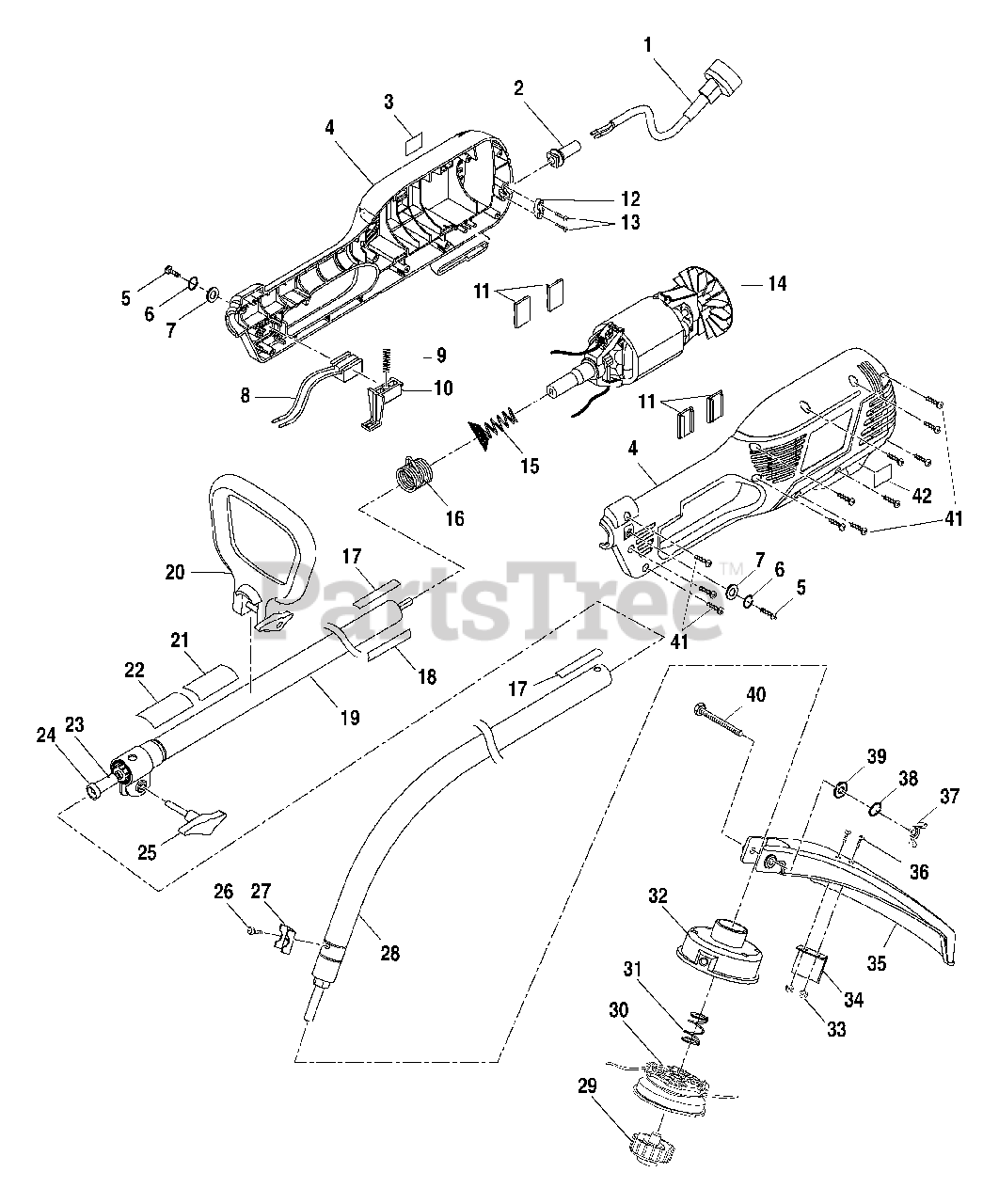

15 in. Line Trimmer Parts Diagram

  • Title

1

Homelite UT4100201

POWER CORD

$

$

Currently unavailable

2

Homelite UT4100203

BEND RELIEF

$

$

Currently unavailable

3

Homelite UT4100228

LOGO PLATE HOUSING SUPPORT

$

$

Currently unavailable

4

Homelite 984725001

HOUSING ASSEMBLY

$27.99

$

Usually ships in 3-7 days

0

5

Homelite UT4100210

SCREW (M4 X 12 mm)

Note: Purchase Locally

$

$

Currently unavailable

6

Homelite UT4100209

SPRING WASHER (M4)

Note: Purchase Locally

$

$

Currently unavailable

7

Homelite UT4100208

WASHER (M4)

Note: Purchase Locally

$

$

Currently unavailable

8

Homelite UT4100217

SWITCH

$

$

Currently unavailable

9

Homelite UT4100216

SPRING

$

$

Currently unavailable

10

Homelite UT4100215

SWITCH TRIGGER

$

$

Currently unavailable

11

Homelite UT4100207

RUBBER CUSHION

$

$

Currently unavailable

12

Homelite UT4100204

CORD CLAMP

$

$

Currently unavailable

13

Homelite UT4100221

SCREW (M42 X 15 mm)

Note: Purchase Locally

$

$

Currently unavailable

14

Homelite UT4100214

MOTOR ASSEMBLY

$

$

Currently unavailable

15

Homelite UT4100219

SPRING

$

$

Currently unavailable

16

Homelite UT4100212

HOOK

$

$

Currently unavailable

17

Homelite 984032001

ICON LABEL

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 984175001

DATA PLATE

$1.99

$

Usually ships in 3-7 days

0

19

Homelite UT4100211

ALUMINIUM BOOM ASSEMBLY

Note: (INCLUDES KEY NOS 23 AND 24)

$

$

Currently unavailable

20

Homelite UT4100218

AUXILIARY HANDLE ASSEMBLY

$

$

Currently unavailable

21

Homelite UT4100229

WARNING LABEL

$

$

Currently unavailable

22

Homelite 984339001

WARNING LABEL

$1.99

$

Usually ships in 3-7 days

0

23

Homelite UT4100220

SCREW (M4 X 4 mm)

Note: Purchase Locally

$

$

Currently unavailable

24

Homelite UT4100226

COUPLER

$

$

Currently unavailable

25

Homelite UT4100213

CLAMP LOCK KNOB

$

$

Currently unavailable

26

Homelite UP04256

SCREW (1024 X 3/8 in HEX HD)
(Superseded to PS05243)

Note: Purchase Locally

$

$

Not available

27

Homelite UP04137

GRASS DEFLECTOR CLAMP
(Superseded to 07928)

$

$

Not available

28

Homelite PA00881A

D/SHAFT HOUSING ASSEMBLY
(Superseded to 308038001)

Note: (TRIMMER LOWER CURVED BOOM)

$19.99

$

Usually ships in 3-7 days

0

29

Homelite DA98866A

RETAINING CAP
(Superseded to UP04273A)

$

$

Not available

30

Homelite UP00145

SPOOL W/LINE (080 in)
(Superseded to 308044002)

$

$

Not available

31

Homelite 06713

COMPRESSION SPRING

$1.49

$

In Stock, only 3 left!

0

32

Homelite UP06567

TRIMMER HEAD W/EYELETS
(Superseded to A98231A)

$

$

Not available

33

Homelite UP03885

HEX NUT (1024)
(Superseded to 81208)

Note: Purchase Locally

$

$

Not available

34

Homelite UP04119

LINE CUTTING BLADE

$

$

Not available

35

Homelite A01286

GRASS DEFLECTOR
(Superseded to T308744001)

$

$

Not available

36

Homelite UP04159

SCREW (1024 X 7/8 in HEX HD)
(Superseded to 82531)

Note: Purchase Locally

$

$

Not available

37

Homelite UP04262

WING NUT
(Superseded to 93992)

$

$

Not available

38

Homelite UP03409

LOCK WASHER
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

39

Homelite 84006

FLAT WASHER

$

$

Not available

40

Homelite UP06523

SCREW (1024 X 2 in HEX HD)
(Superseded to 80295)

Note: Purchase Locally

$2.99

$

Usually ships in 3-7 days

0

41

Homelite UT4100205

SCREW (M42 X 19 mm)

Note: Purchase Locally

$

$

Currently unavailable

42

Homelite UT4100227

LOGO PLATE HOUSING COVER

$

$

Currently unavailable

Homelite 983000123

OPERATOR'S MANUAL

$

$

Not available

Homelite 983000123R

REPAIR SHEET

$

$

Currently unavailable
