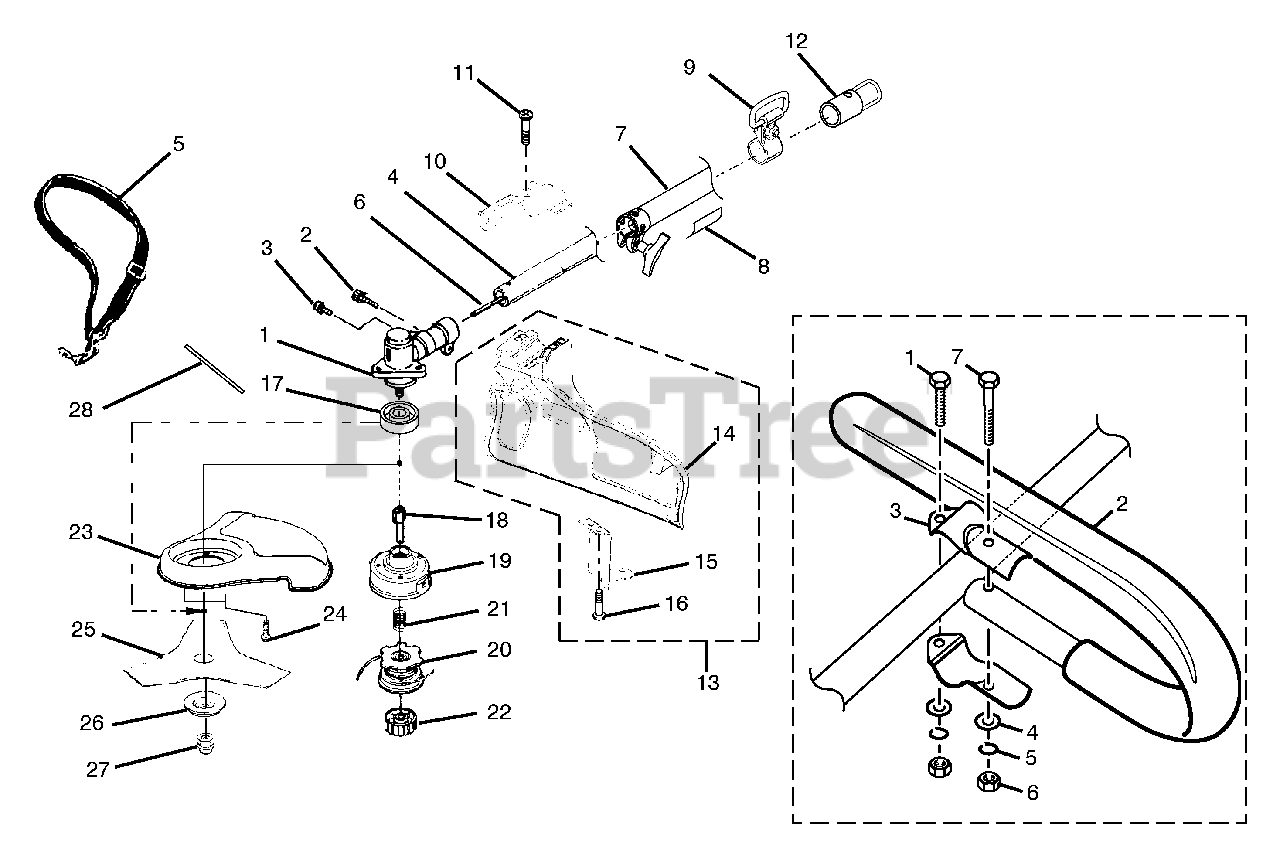

UT-70026 - Homelite Curved Shaft Trimmer Gear Head Parts Diagram

Curved Shaft Trimmer

Gear Head Parts Diagram

  • Title

1

Homelite PA01364

GEAR HEAD
(Superseded to 308210008)

$

$

Not available

2

Homelite PS04680

SCREW, CAP HD (1/4-20 x 125")
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite PS04673

SCREW-HEX HD (10-24 x 625")
(Superseded to 660641001)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite PA01070A

DRIVESHAFT HOUSING (Lower)
(Superseded to PA01070B)

$

$

Not available

5

Homelite 983961001

HARNESS

$

$

Not available

6

Homelite A07679

SHAFT-FLEXIBLE

$7.49

$

Usually ships in 3-7 days

0

7

Homelite PA00873A

DRIVESHAFT HOUSING (Upper)
(Superseded to UP03850A)

$

$

Not available

8

Homelite PS04267

DECAL, BOOM STARTING INST

$

$

Not available

9

Homelite 07255

HANGER-COMPLETE

$

$

Not available

10

Homelite PS04420

CLAMP-GRASS SHIELD

$2.99

$

In Stock, only 2 left!

0

11

Homelite 82554

SCREW-HEX HD (1/4-20 x 125")

$

$

Not available

12

Homelite PS02155

END CAP
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

13

Homelite 984443002

DEFLECTOR-GRASS ASSY
(Superseded to 308473004)

$

$

Not available

14

Homelite 984099001

GRASS SHIELD
(Superseded to 308473001)

$

$

Not available

15

Homelite PS04379

BLADE-CUT-OFF

$

$

Not available

16

Homelite 82543

SCREW-PAN HD (8-16 x 1/2")

$

$

Not available

17

Homelite 04168A

WASHER-FLANGED
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

18

Homelite PS04438

ADAPTER-STRINGHEAD
(Superseded to 678019002)

$2.49

$

In Stock, only 3 left!

0

19

Homelite A98231A

HOUSING AND EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

20

Homelite PA0387A

SPOOL W/LINE (095 in)
(Superseded to 308044002)

$

$

Not available

21

Homelite 06713

COMPRESSION SPRING

$1.49

$

In Stock, only 2 left!

0

22

Homelite A97910A

SPOOL RETAINER (LH/THREAD)
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite PS03538

BLADE GUARD
(Superseded to 638120001)

$

$

Not available

24

Homelite 88049

SCREW

$

$

Not available

25

Homelite 06297

BLADE-TRI-ARC™
(Superseded to 638006004)

$12.99

$

Usually ships in 3-7 days

0

26

Homelite 04409

WASHER-CUPPED (Lower)

$2.49

$

In Stock, only 1 left!

0

27

Homelite 04277

NUT-HEX (LH)
(Superseded to 678018001)

$

$

Not available

28

Homelite 00063

TOOL-HOLDING Pin
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0
