UT-70026 - Homelite Curved Shaft Trimmer Piston & Cylinder Parts Diagram

Curved Shaft Trimmer

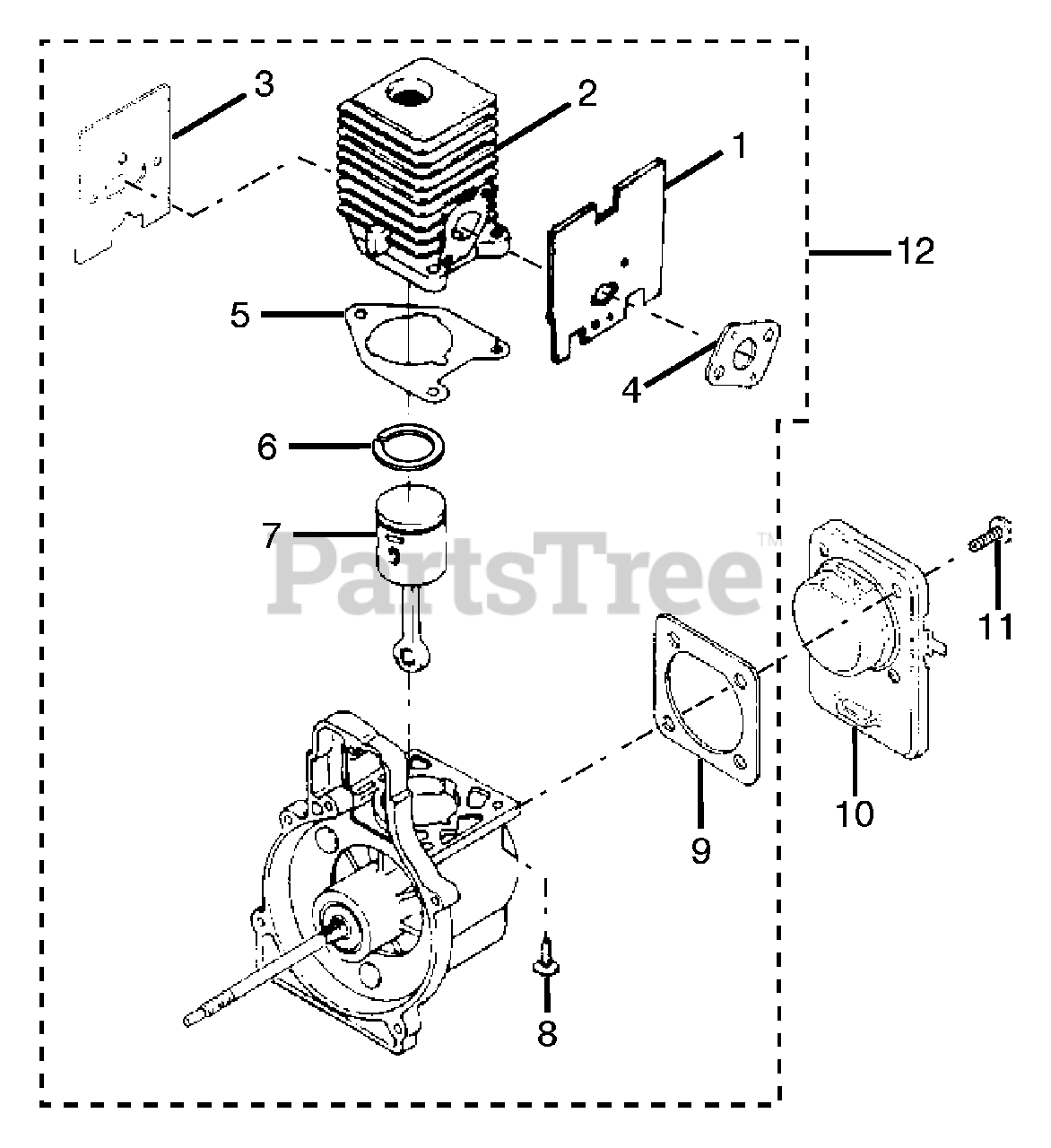

Piston & Cylinder Parts Diagram

  • Title

1

Homelite 06900A

HEAT DAM GASKET

$

$

Not available

2

Homelite PS05699

CYLINDER

$

$

Not available

3

Homelite PS04000

MUFFLER GASKET

$

$

Not available

4

Homelite 98766A

CARBURETOR GASKET
(Superseded to 900994004)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 04388B

CYLINDER GASKET
(Superseded to 985259001)

$

$

Not available

6

Homelite PS01359

PISTON RING ( 1-5/16 in)
(Superseded to 678001002)

$

$

Not available

7

Homelite 984544001

PISTON ASSEMBLY KIT

$

$

Not available

8

Homelite PS02807

SCREW (12-24 x 660 PAN TORX)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 06443A

GASKET COVER, C/C
(Superseded to 900954001)

$

$

Not available

10

Homelite PS02130

CRANKCASE COVER

$

$

Not available

11

Homelite PS01565

PAN HEAD SCREW

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 984561001

SHORT BLOCK ASSEMBLY

$97.99

$

In Stock, only 1 left!

0
