UT-80953 E - Homelite Pressure Washer Figure C Parts Diagram

Pressure Washer

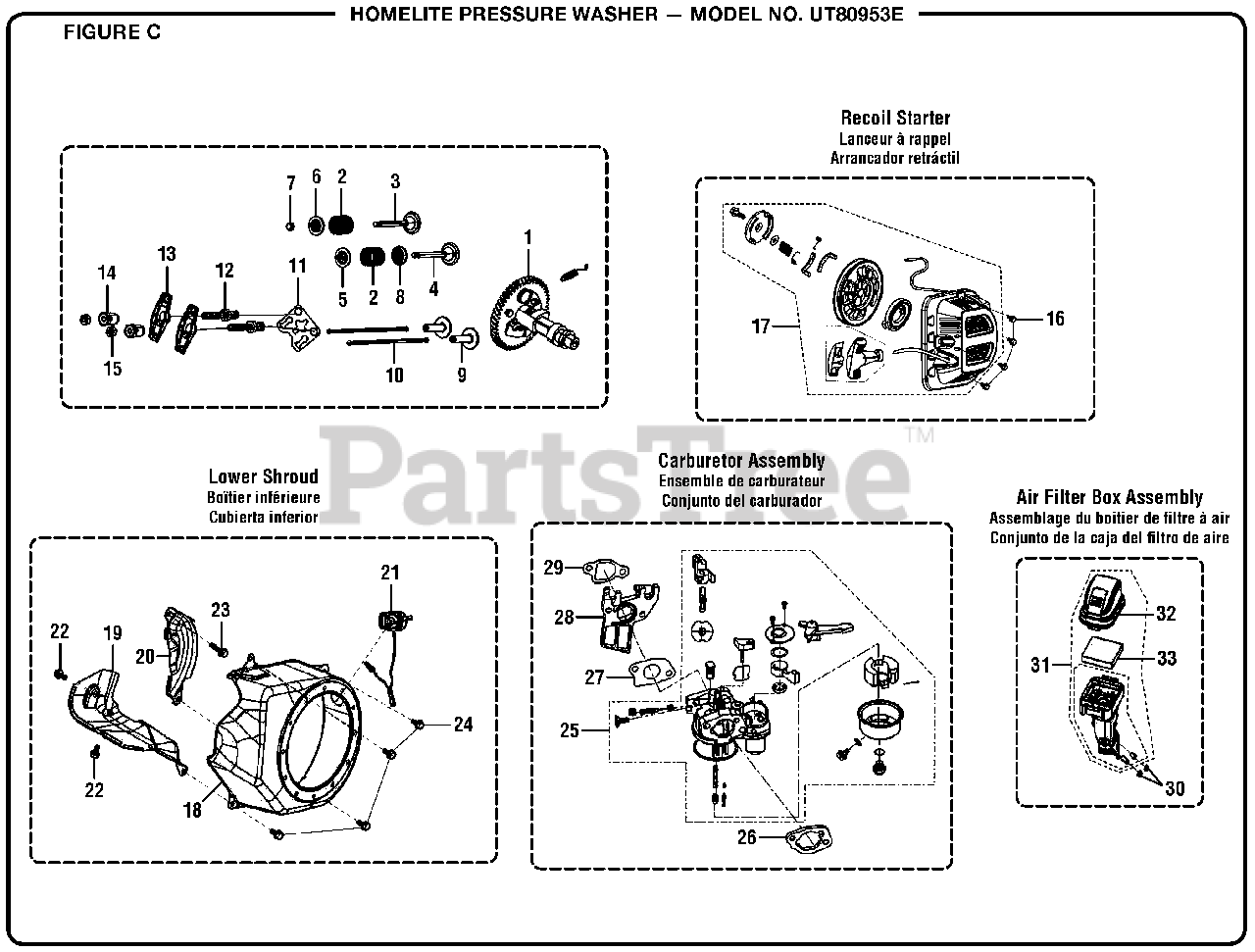

Figure C Parts Diagram

  • Title

CAMSHAFT ASSEMBLY

$

$

Not available

1

Homelite 14200-Z440210-0099

Camshaft Assembly

$23.99

$

Usually ships in 3-7 days

0

2

Homelite 12103-Z010110-0000

Valve Spring

$1.49

$

In Stock, only 4 left!

0

3

Homelite 12121-Z010120-0000

Exhaust Valve

$

$

Not available

4

Homelite 12111-Z010310-0099

Intake Valve

$

$

Not available

5

Homelite 12112-Z010110-0000

Valve Spring Seat
(Superseded to 12112-Z010110)

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 12107-Z010110-0000

Exhaust Valve Retainer

$

$

Not available

7

Homelite 12104-Z010110-0000

Valve Rotator

$2.99

$

Usually ships in 3-7 days

0

8

Homelite 12101-Z010110-0000

Seal Guide

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 14081-Z440110-0000

Valve Tappet

$

$

Not available

10

Homelite 14071-Z440110-0000

Valve Lifter

$1.99

$

In Stock, only 1 left!

0

11

Homelite 14090-Z010110-0000

Stop Plate Assembly

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 14313-Z010110-0000

Valve Adjusting Bolt

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 14311-Z010110-0000

Valve Rocker

$

$

Not available

14

Homelite 14314-Z010110-0000

Valve Adjusting Nut

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 14312-Z010110-0000

Valve Lock Nut

$1.49

$

Usually ships in 3-7 days

0

RECOIL STARTER

$

$

Not available

16

Homelite 90001-0612-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 28200-Z010310-Q200

Recoil Starter Assembly

$21.99

$

In Stock, only 2 left!

0

LOWER SHROUD

$

$

Not available

18

Homelite 28110-Z010410-H700

Shroud
(Superseded to 28110-Z010410)

$15.99

$

Usually ships in 3-7 days

0

19

Homelite 19304-Z010110-0000

Cylinder Body Shroud

$

$

Not available

20

Homelite 19340-Z010120-0000

Lower Shield

$

$

Not available

21

Homelite 35540-Z060220-QG00

Stop Engine Switch Assembly

$4.49

$

Usually ships in 3-7 days

0

22

Homelite 90001-0610-01

Bolt

$

$

Not available

23

Homelite 90001-0616-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 90001-0612-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

CARBURETOR ASSEMBLY

$

$

Not available

25

Homelite 16100-Z440210-QG99

Carburetor Assembly

$

$

Currently unavailable

26

Homelite 17001-Z010210-0000

Air Cleaner Gasket

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 16001-Z050110-0000

Carburetor Gasket

$

$

Not available

28

Homelite 16003-Z010110-0000

Carburetor Insulator Plate

$2.99

$

In Stock, only 1 left!

0

29

Homelite 16002-Z050110-0000

Carburetor Insulator Gasket
(Superseded to 16002-Z050110)

$1.99

$

In Stock, only 4 left!

0

AIR FILTER BOX ASSEMBLY

$

$

Not available

30

Homelite 90305-0600-31

Nut

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 17100-Z440110-0000

Air Cleaner

$14.99

$

Usually ships in 3-7 days

0

32

Homelite 17104-Z440110-0000

Air Cleaner Cover

$7.49

$

Usually ships in 3-7 days

0

33

Homelite 17151-Z440110-0000

Air Cleaner Element

$

$

Not available

Homelite 120960003

High Altitude Kit 3000 - 6000 ft, Not Included)

Note: NOT SHOWN

$

$

Not available

Homelite 120960004

High Altitude Kit (6000 - 8000 ft, Not Included)

Note: NOT SHOWN

$

$

Not available
