Volunteer 46F (37AC46FH010) - Cub Cadet 4x4 Utility Vehicle (SN: 1I018G - 1I019G) Euro Cab Front Glass Parts Diagram

4x4 Utility Vehicle

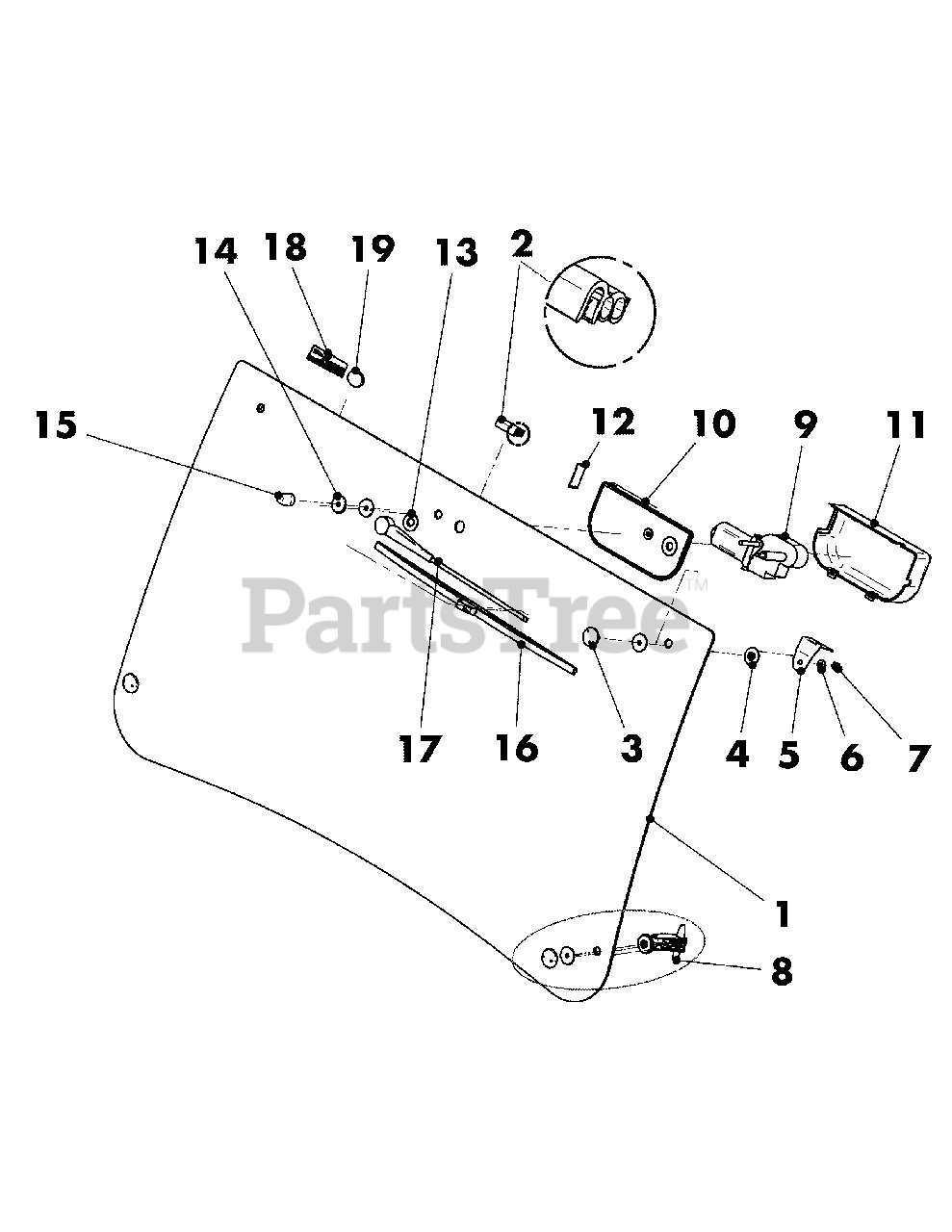

Euro Cab Front Glass Parts Diagram

  • Title

1

Cub Cadet WT-4-120-37-252

Windshield - Front

$

$

Not available

2

Cub Cadet WT-6-310-10-001

Gasket - Seal

$199.99

$

In Stock, only 1 left!

0

3

Cub Cadet WT-7-980-50-103

Screw

$

$

Not available

4

Cub Cadet WT-7-980-14-513

Washer

$

$

Not available

5

Cub Cadet WT-7-825-00-417

Bezel

$

$

Not available

6

Cub Cadet WT-7-200-08-018

Washer

$

$

Not available

7

Cub Cadet WT-7-220-10-080

Nut, M8

$

$

Not available

8

Cub Cadet WT-P-002-14-540

Window opener

$

$

Not available

9

Cub Cadet WT-6-250-12-880

Wiper Motor, 12 volt

$

$

Not available

10

Cub Cadet WT-7-980-00-019

Cover

$

$

Not available

11

Cub Cadet WT-7-980-00-018

Cover

$

$

Not available

12

Cub Cadet WT-7-980-10-212

Orifice

$

$

Not available

13

Cub Cadet WT-7-980-14-518

Washer

$

$

Not available

14

Cub Cadet WT-7-980-14-515

Washer

$

$

Not available

15

Cub Cadet WT-7-980-00-015

Covering

$

$

Not available

16

Cub Cadet WT-6-254-01-550

Wiper Blade

$

$

Not available

17

Cub Cadet WT-6-253-10-408

Wiper Arm

$

$

Not available

18

Cub Cadet WT-6-410-10-065

Emblem - Winshield

$

$

Not available

19

Cub Cadet WT-6-410-10-067

Emblem

$

$

Not available
