Volunteer 487 EFI Camo (37AM487D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1I014H & Above) (2015) Kohler LH775-3024 Fuel System Parts Diagram

4x4 Utility Vehicle

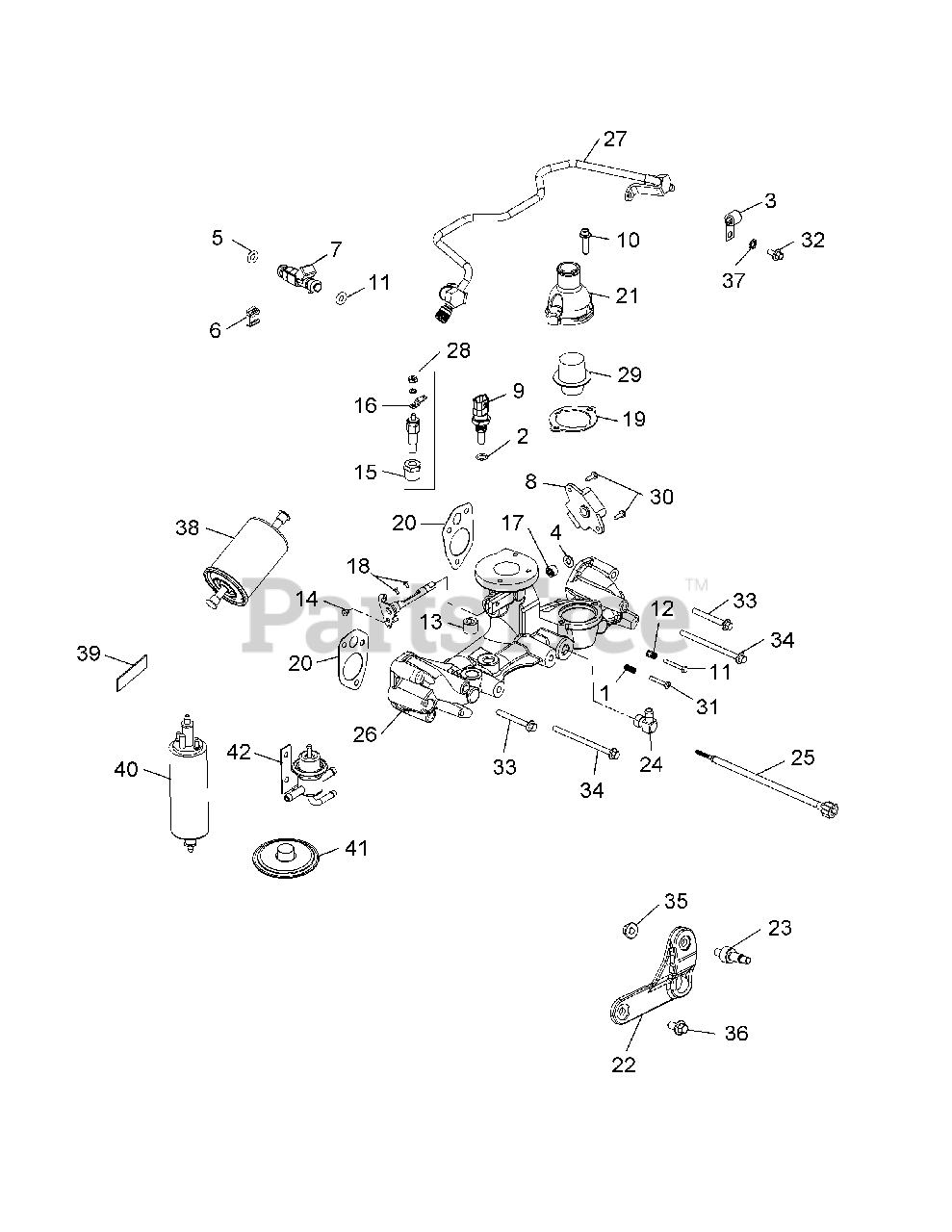

Kohler LH775-3024 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-12-089-11-S

Spring, Speed Control (Short)

$2.49

$

In Stock, Qty 10

0

2

Cub Cadet KH-12-153-04

O-Ring (.5" Dia)

$

$

Not available

4

Cub Cadet KH-24-032-16-S

Seal, Throttle Shaft

$2.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-153-26-S

O-Ring

$3.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-154-05-S

Clip, Fuel Injector

$3.49

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-331-02-S

Injector, Fuel

$205.99

$

In Stock, only 2 left!

0

8

Cub Cadet KH-24-418-06-S

Kit, Throttle Position Sensor

$

$

Not available

9

Cub Cadet KH-24-418-12-S

Sensor, Temperature

$64.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-086-124-S

Screw, Flg M6x1.0x25

$2.49

$

In Stock, only 3 left!

0

11

Cub Cadet KH-25-173-18-S

Cap, Masking

$2.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-089-09-S

Spring, Idle Set Screw

$3.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-25-139-62-S

Plug, Pipe Ctsk 3/8"

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$

$

Not available

17

Cub Cadet KH-28-030-05-S

Bearing, Needle

$12.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-66-041-01-S

Gasket, Thermostat

$2.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-66-041-05-S

Gasket, Intake Manifold

$2.49

$

In Stock, Qty 15

0

21

Cub Cadet KH-66-081-01-S

Housing, Thermostat

$31.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-66-155-02-S

Connector, Hose

$12.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-66-164-22-S

Kit, Efi Intake Manifold

$618.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-66-399-02-S

Rail, Fuel

$153.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-66-453-02-S

Kit, Thermostat

$54.99

$

In Stock, only 1 left!

0

30

Cub Cadet KH-M-442012-S

Screw, Phl Pan M4x0.7x12

$4.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-M-442025-S

Screw, Phl Pan M4x0.7x25

$2.49

$

Usually ships in 2-5 days

0

32

Cub Cadet KH-M-650012-S

Screw, Flg M6x1.0x12

$

$

Currently unavailable

33

Cub Cadet KH-M-651050-S

Screw, Flg M6x1.0x50

$2.99

$

Usually ships in 2-5 days

0

34

Cub Cadet KH-M-651090-S

Screw, Flg M6x1.0x90

$2.49

$

Usually ships in 2-5 days

0

36

Cub Cadet KH-M-851016-S

Screw, Flg 8X1.25x16

$6.99

$

Usually ships in 2-5 days

0

38

Cub Cadet KH-24-050-03-S

Fuel Filter, High Pressure

Note: (EFI High Pressure Do not substitute)

$75.99

$

In Stock, only 1 left!

0

Cub Cadet KH-M-651012-S

Screw, Flg M6x1.0x12 (not shown)

$3.49

$

Usually ships in 2-5 days

0
