Volunteer 747 EFI Camo (37AM487D010) - Cub Cadet 4x4 Utility Vehicle (2016) Body Panel Parts Diagram

4x4 Utility Vehicle

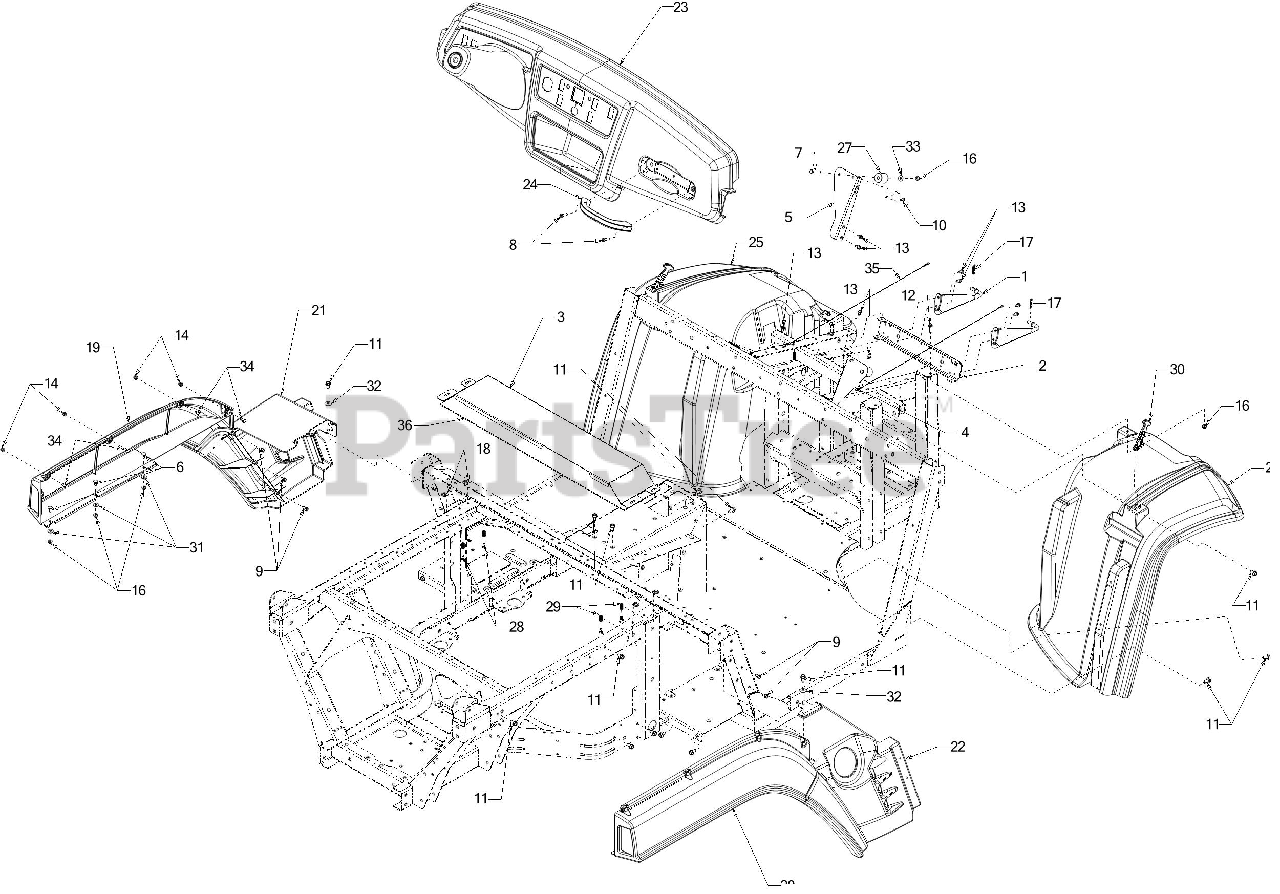

Body Panel Parts Diagram

  • Title

1

Cub Cadet 607-04224-0637

HOOD MOUNT ROD ASSEMBLY

$77.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-04484-0637

FRAME CROSS CHANNEL

$71.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-04748A-0637

UV COVER

$99.99

$

In Stock, only 1 left!

0

4

Cub Cadet 707-04779A-0637

HOOD & DASH BRACKET (RH)

$43.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707-04782A-0637

HOOD & DASH BRACKET (LH)

$38.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0136

HEX SCREW 1/4-20 x 1.75

$3.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0166A

MACHINE SCREW 1/4-20:1

$6.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-04187A

HEX SCREW 1/4-15 x .50

$6.49

$

In Stock, Qty 10

0

10

Cub Cadet 710-04261

HEX SCREW #12-16 x .50

$5.99

$

In Stock, only 4 left!

0

11

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-05105

SCREW 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0264A

ACORN NUT

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0324

NYLON LOCK NUT

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 914-0101

INTERNAL COTTER PIN
(Superseded to 714-0101)

$

$

Not available

18

Cub Cadet 726-3056

1/4 TURN PANEL HANDLE

$6.99

$

In Stock, Qty 7

0

19

Cub Cadet 931-05280C

REAR FENDER

$417.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 931-05281C

REAR FENDER

$440.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 931-05282B

LOWER FENDER (LH)

$93.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 931-05283B

LOWER FENDER (RH)

$93.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 931-05322C

DASH

$190.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-06155

GRAB HANDLE

$29.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 931-06710A

UV FENDER (LH)

$179.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 931-06711A

UV FENDER (RH)

$179.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-3232

HOOD LATCH ROLLER

$8.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-0936

SPRING CLIP
(Superseded to 726-05561)

$32.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 732-0937

COMPRESSION SPRING

$7.99

$

In Stock, only 2 left!

0

30

Cub Cadet 735-04145

HOOD STRAP

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$3.99

$

In Stock, Qty 10

0

32

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0342

FLAT WASHER .283 ID x .749 x .030

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 738-04505A

SHOULDER SCREW 1/4-20

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 746-04328

HOOD CABLE

$21.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-10435

INSULATION

$74.99

$

Usually ships in 3-6 days

0
