VT-100 (21A-70M8709) - Cub Cadet Vertical-Tine Tiller (2015) Tine Assembly Parts Diagram

Vertical-Tine Tiller

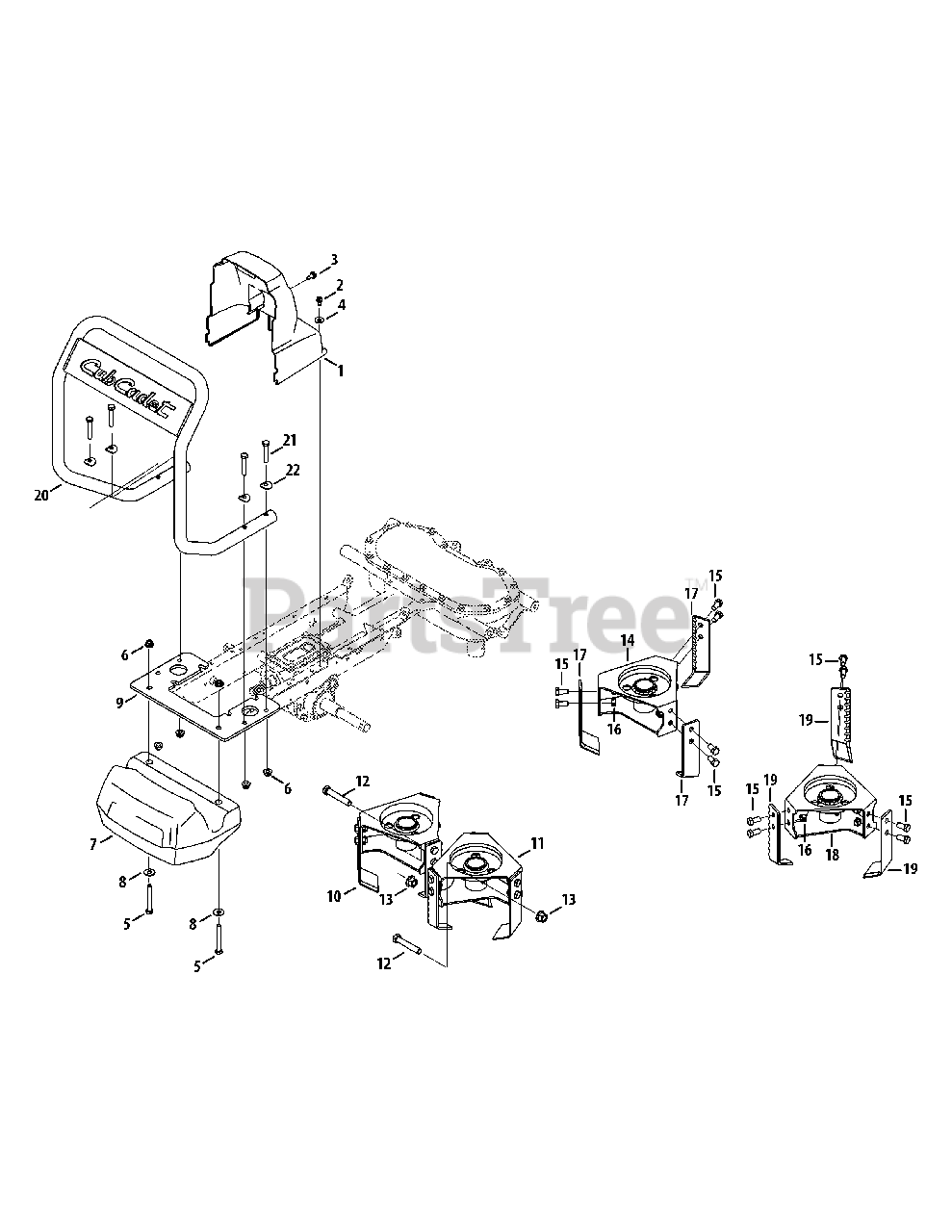

Tine Assembly Parts Diagram

  • Title

1

Cub Cadet 731-11121

Belt Cover

$35.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0896

Self Tapping Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 10

0

5

Cub Cadet 710-0378

Hex Screw, 5/16-18, 2.50, Gr5

$4.99

$

In Stock, only 3 left!

0

6

Cub Cadet 712-04063

Flangelock Nut, 5/16-18, B&S

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 731-09227

Weight

$82.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

9

Cub Cadet 786-05037-4021

Bumper Mounting Plate

$42.99

$

Usually ships in 3-6 days

0

10

Cub Cadet n/a

Tine Assembly, RH

Note: (Order Components)

$

$

Currently unavailable

11

Cub Cadet n/a

Tine Assembly, LH

Note: (Order Components)

$

$

Currently unavailable

12

Cub Cadet 710-0561

Hex Cap Screw, 7/16-20 x 2.5 (Grade 5)

$10.99

$

In Stock, only 2 left!

0

13

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 642-05034-0637

Tine Bracket, RH

$90.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 17

0

16

Cub Cadet 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 742-05076-0637

Tine Blade, RH

$12.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 642-05035-0637

Tine Bracket, LH

$90.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 742-05091-0637

Tine Blade, LH

$12.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 686-05023-4021

Front Bumper

$78.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet 936-0451

Saddle Washer, .320 x .93 x .060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 20+

0
