VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

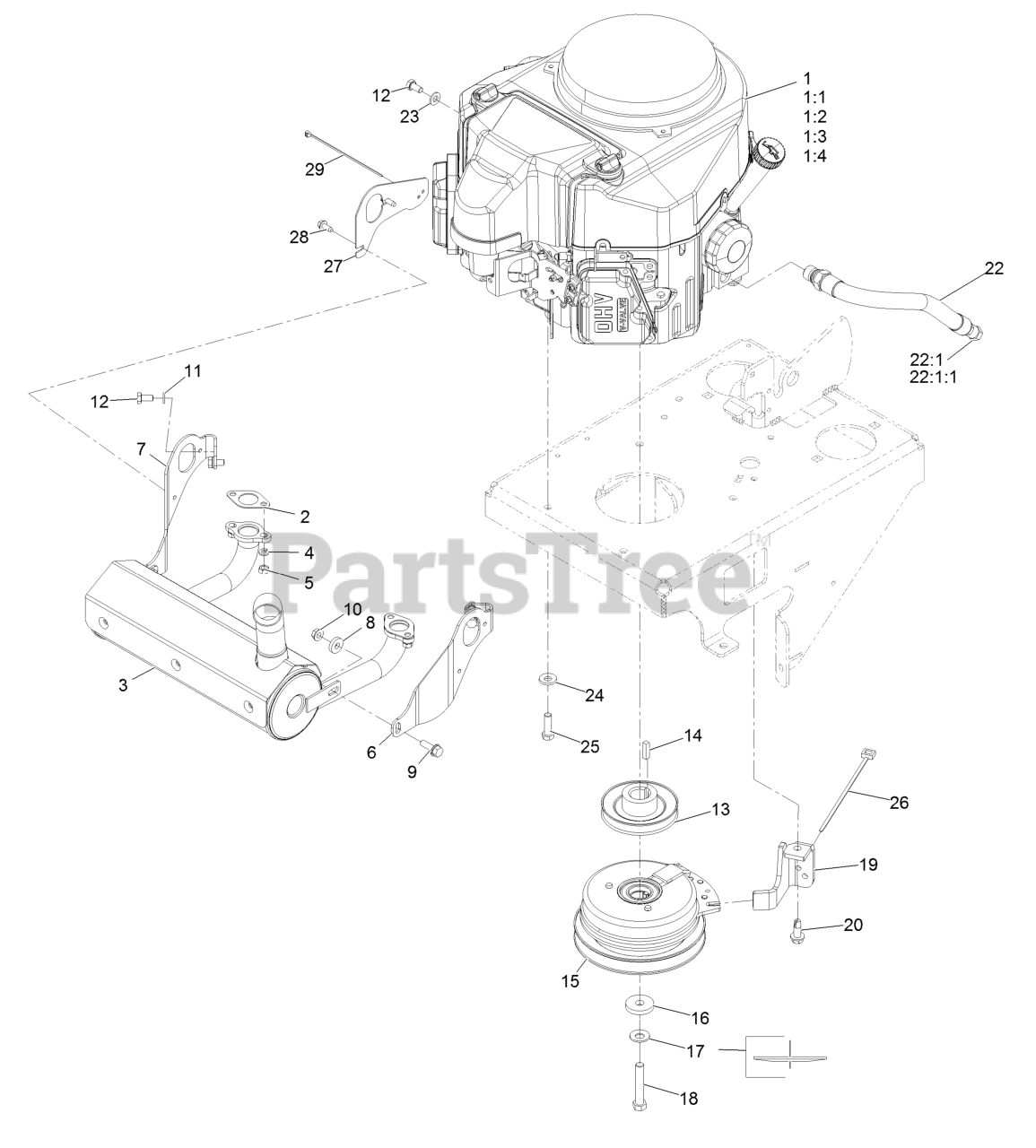

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki, Fs541V

$

$

Not available

1:1

Exmark 92-2153

Spark Plug

$4.99

$

In Stock, Qty 7

0

1:2

Exmark 119-5852

Filter-Oil
(Superseded to 49065-0721)

$18.99

$

In Stock, Qty 20+

0

1:3

Exmark 120-2235

Filter-Fuel

$9.49

$

In Stock, Qty 20+

0

1:4

Exmark 120-7447

Element-Filter, Air

$5.99

$

In Stock, Qty 20+

0

2

Exmark 1-653313

Gasket-Exhaust

$4.99

$

Usually ships in 3-6 days

0

3

Exmark 116-8746

Muffler
(Superseded to 132-1547)

$287.99

$

In Stock, only 1 left!

0

4

Exmark 114-3550

Washer-Spring Lock M8

$1.49

$

In Stock, Qty 6

0

5

Exmark 114-3549

Nut-M8

$1.99

$

In Stock, Qty 20+

0

6

Exmark 116-4752

Bracket-Muffler Mount, LH

$37.99

$

Usually ships in 3-6 days

0

7

Exmark 116-4750

Bracket-Muffler Mount, RH

$37.99

$

Usually ships in 3-6 days

0

8

Exmark 104-7658

Spacer

$1.49

$

In Stock, Qty 6

0

9

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 12

0

10

Exmark 32128-25

Nut-Hex 5/16-18 Side Lock

$3.49

$

In Stock, Qty 19

0

11

Exmark 3253-4

Washer-Lock 5/16

$0.99

$

In Stock, Qty 20+

0

12

Exmark 33114-016

Screw-HH M8-1.25 X 16Mm

$0.99

$

In Stock, Qty 8

0

13

Exmark 116-3610

Pulley

$83.99

$

Usually ships in 3-6 days

0

14

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.99

$

In Stock, Qty 13

0

15

Exmark 116-4395

Clutch-175 Ft-Lb

$509.99

$

Usually ships in 3-6 days

0

16

Exmark 107-4136

Washer

$6.49

$

Usually ships in 3-6 days

0

17

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

0

18

Exmark 3212-10

Screw-HH 7/16-20 X 2 1/2

$6.49

$

In Stock, only 4 left!

0

19

Exmark 116-3565-01

Anchor-Clutch

$26.99

$

Usually ships in 3-6 days

0

20

Exmark 105-6245

Screw-Tapping

$5.99

$

Usually ships in 3-6 days

0

22

Exmark 116-4924

Asm-Hose Oil Drain W/Plug

$36.99

$

In Stock, Qty 9

0

22:1

Exmark 353-508

Plug-W/O-Ring

$8.49

$

In Stock, only 1 left!

0

22:1:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

23

Exmark 33094-00

Washer

$0.99

$

In Stock, only 2 left!

0

24

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

25

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 12

0

27

Exmark 116-4751

Guard-Cable, Spark Plug

$25.99

$

Usually ships in 3-6 days

0

28

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 11

0

29

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0
