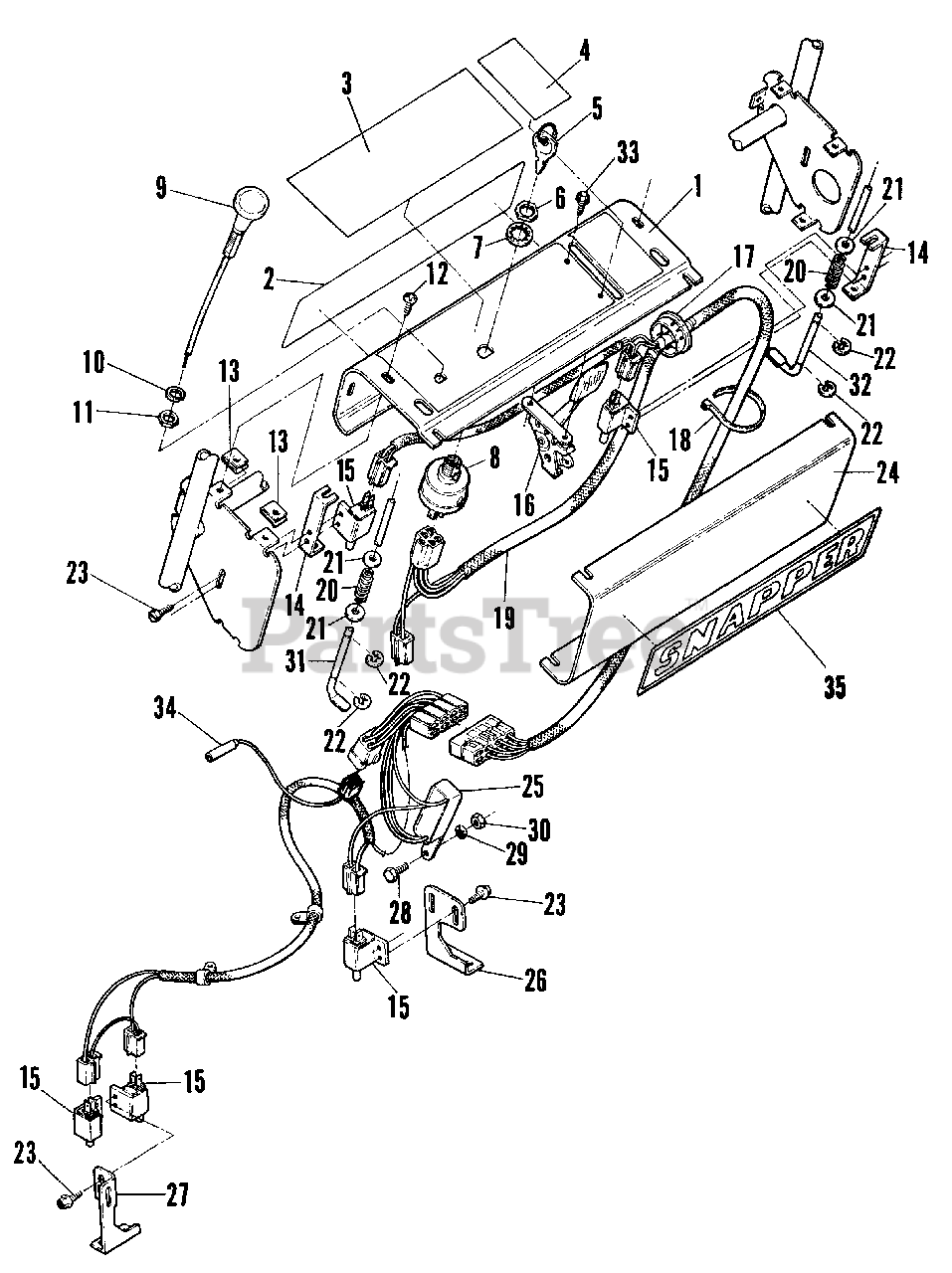

W 48142BV (89150) - Snapper 48" Walk-Behind Mower, 14hp Upper Handle Console/Wiring Parts Diagram

48" Walk-Behind Mower, 14hp

Upper Handle Console/Wiring Parts Diagram

  • Title

1

Snapper 57646

PANEL, Control W/Decals

Note: (MY90)

$

$

Currently unavailable

2

Snapper 7044640

DECAL, "SNAPPER"

Note: Was 19279 (MY90)

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 7077872

DECAL, Control Panel

$

$

Currently unavailable

4

Snapper 7077910

DECAL, Caution

$

$

Not available

5

Snapper 7011138

KEY
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 6

0

6

Snapper 7012685

NUT, Hex 5/8 - 32
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7091546

WASHER, Internal Tooth 5/8
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, Qty 6

0

8

Snapper 7027698

SWITCH, Key
(Superseded to 7027698YP)

Note: Was 18562

$32.99

$

In Stock, only 1 left!

0

9

Snapper 7018674

CABLE, Choke Assembly
(Superseded to 7018674YP)

$23.99

$

Usually ships in 2-12 days

0

10

Snapper 7090118

WASHER, Lock 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

11

Snapper 7090482

NUT, Hex Jam 3/8 - 24
(Superseded to 7090482SM)

$4.49

$

In Stock, only 3 left!

0

12

Snapper 7076952

SCREW, Pan Head 10 - 24 x 5/8
(Superseded to 7076952YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7015098

NUT, Clip

$

$

Currently unavailable

14

Snapper 7077842

BRACKET, Switch

$

$

Not available

15

Snapper 7019098

SWITCH, Operator Presence
(Superseded to 1723552SM)

$8.49

$

Usually ships in 2-12 days

0

16

Snapper 7018675

CONTROL, Throttle w/Knob
(Superseded to 7018675YP)

$28.99

$

Usually ships in 2-12 days

0

17

Snapper 7077882

BUSHING, Snap

$

$

Not available

18

Snapper 7012080

TIE, Plastic Wire
(Superseded to 7012080SM)

Note: Was 76856

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 77829

HARNESS, Upper Wiring

$

$

Currently unavailable

20

Snapper 7077856

SPRING, Operator Presence

$

$

Not available

21

Snapper 7091294

WASHER, Flat SAE 1/4
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 11

0

22

Snapper 7077874

E-Ring

$

$

Not available

23

Snapper 7077873

SCREW, Thread Forming Hex Head 12-14 x 1/2
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 57648

COVER, Lower W/Decal

Note: (MY90)

$

$

Currently unavailable

25

Snapper 7077830

HARNESS, Module

$

$

Currently unavailable

26

Snapper 7023290

BRACKET, Switch Right

$

$

Currently unavailable

27

Snapper 7077865

BRACKET, Switch Left

$

$

Currently unavailable

28

Snapper 7091495

SCREW, Hex Head Cap 1/4-20 x 3/4
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 6

0

29

Snapper 7090053

WASHER, Internal Tooth Lock 1/4
(Superseded to 703462)

$4.49

$

In Stock, Qty 12

0

30

Snapper 7076978

NUT, Nyloc Hex - 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7077841

LINKAGE, Operator Presence, Right

$

$

Not available

32

Snapper 7077840

LINKAGE, Operator Presence, Left

$

$

Not available

33

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 12

0

34

Snapper 7077833

HARNESS, Engine Kill

Note: (Briggs 8 & 12 hp)

$

$

Currently unavailable

Snapper 7077831

HARNESS, Engine Kill

Note: (Kawasaki)

$

$

Not available

Snapper 7051943

HARNESS, Engine Kill

Note: (Vanguard)

$

$

Currently unavailable

35

Snapper 7019295

LABEL, SNAPPER
(Superseded to 7019295YP)

$13.99

$

In Stock, only 4 left!

0
