WE 261 (960220011-00) - Weed Eater Lawn Tractor (2010-06) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

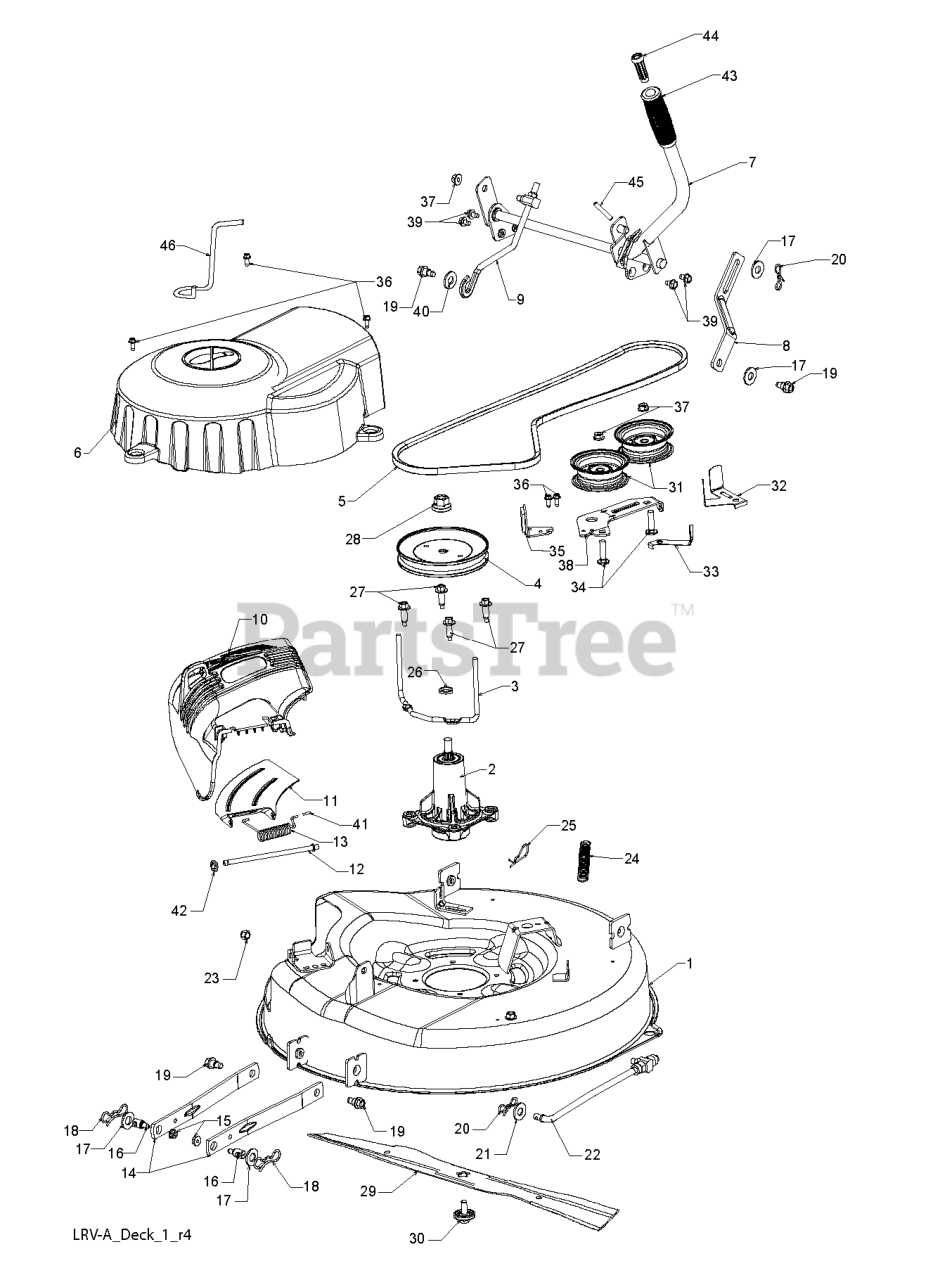

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

16

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

8

Husqvarna 532429195

LINK, DECK LIFT

$

$

Not available

33

Husqvarna 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532429350

LINK.ASM.TOP.DECK.LRV

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532432520

KEEPER.BELT.MANDREL.PULLEY
(Superseded to 589676103)

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 18

0

23

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532105767

PIN GROOVE.

$6.49

$

In Stock, only 4 left!

0

28

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 532428435

ARM, IDLER

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532428578

BELT

$48.99

$

In Stock, only 1 left!

0

35

Husqvarna 532199470

RP ARM.BRAKE.MOWER.38"LH.TEX
(Superseded to 532400130)

$18.99

$

In Stock, Qty 12

0

27

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

1

Husqvarna 532428193

DECK.WELDMENT.26'LRV.BLACK
(Superseded to 584344001)

$218.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532429531

SPRING.EXTENSION.DECK.LRV

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

15

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

18

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

29

Husqvarna 532428500

BLADE.26"

$

$

Not available

46

Husqvarna 532438610

KEEPER.BELT

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

21

Husqvarna 819171912

WASHER

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532438923

DEFLECTOR DEFLECTOR.LRV.26
(Superseded to 583536201)

$

$

Not available

40

Husqvarna 819171616

WASHER
(Superseded to 734117801)

$

$

Not available

26

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532428242

COVER, MANDREL

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532429397

LINK.ASM.LIFT.ADJUSTABLE

$

$

Not available

4

Husqvarna 532432594

PULLEY.MANDREL

$15.99

$

Usually ships in 3-10 days

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532125631

GRIP HANDLE

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 532429395

LIFT.ASM.DECK.LRV

$78.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

42

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$4.99

$

In Stock, Qty 9

0

14

Husqvarna 532418863

ARMS.SUSP.MOWER.REAR.SRD

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532429401

PLUNGER.ASM.LRV

$

$

Not available

11

Husqvarna 532428968

SUPPORT, DEFLECTOR

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0
