WGP 4818 (966638502) - Husqvarna 48" Walk-Behind Mower (2010-10) DRIVE Parts Diagram

48" Walk-Behind Mower

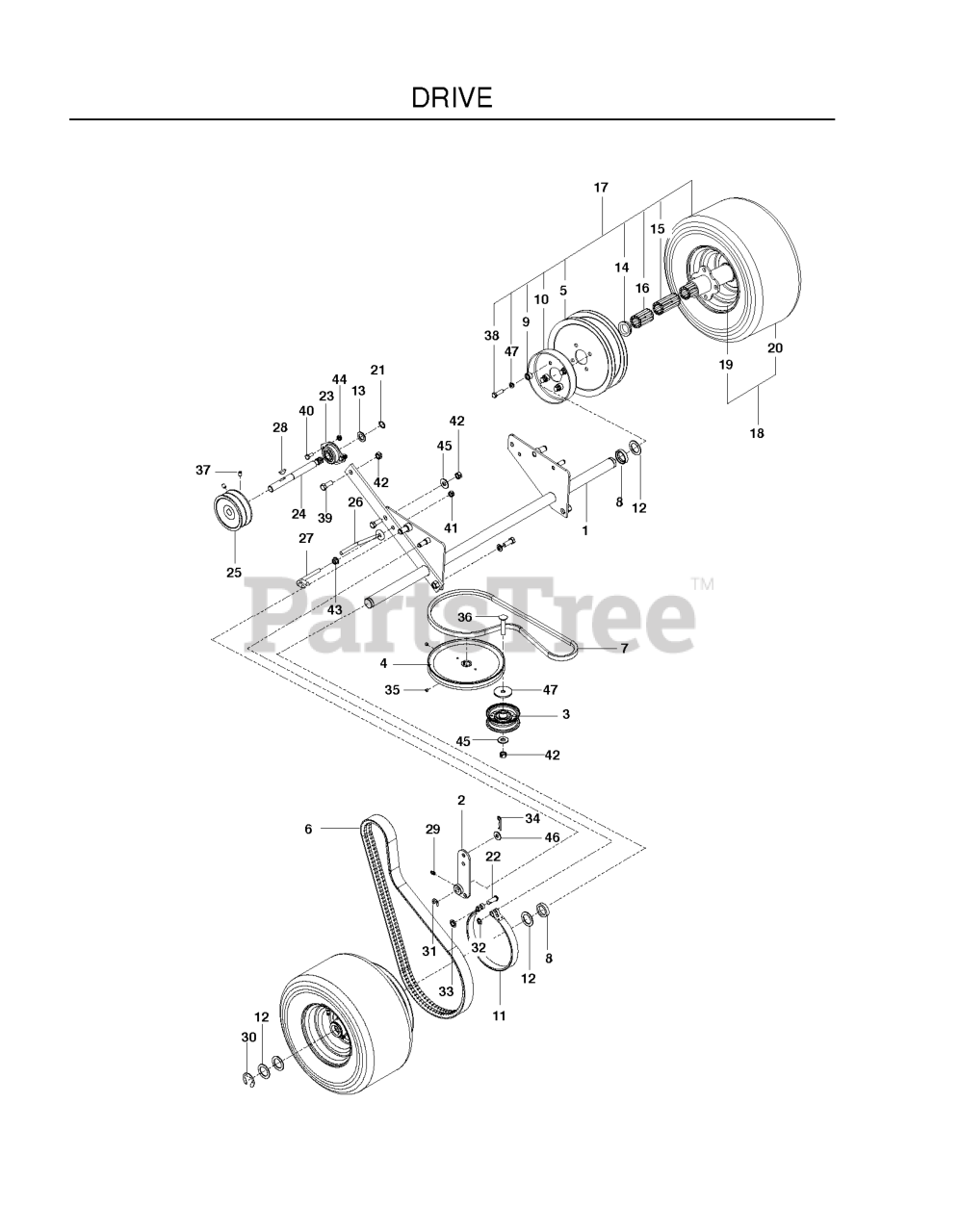

DRIVE Parts Diagram

  • Title

31

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539100395

BEARING FLANGE

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539101971

RETAINER RING

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 539991043

BUSHING

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 539102163

DRIVE SHAFT

$

$

Not available

1

Husqvarna 539101931

AXLE WELDMENT (36 & 48)

$363.99

$

In Stock, only 1 left!

0

29

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 539921960

SPACER

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539101973

BELT GUIDE

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102161

ROLLER BEARING (SHORT)

$15.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539104759

RIM
(Superseded to 539104758)

$194.99

$

In Stock, only 1 left!

0

6

Husqvarna 539110859

BELT, DRIVE 36/48

$109.99

$

In Stock, only 2 left!

0

2

Husqvarna 539101934

BRAKE ARM, RIGHT

$

$

Not available

20

Husqvarna 539923788

TIRE
(Superseded to 539104758)

$194.99

$

In Stock, only 1 left!

0

3

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, Qty 7

0

35

Husqvarna 539101988

SETSCREW, 1/4-20 NYLOC

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539938473

TRACTION PULLEY

$34.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539101954

PULLEY, DRIVE (36 & 48)

$109.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

15

Husqvarna 539100393

ROLLER BEARING (LONG)

$30.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, Qty 13

0

40

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 539101946

BRAKE DRUM

$24.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101945

BRAKE BAND

$44.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539102049

CLEVIS PIN

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539104757

WHEEL PARTS KIT

$400.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990870

E RING 3/8"

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 539976956

SET SCREW 5/16 NYLOC

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539101967

BEARING

$

$

Not available

45

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101957

BELT, TRANSMISSION

$42.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101964

PULLEY, INPUT

$

$

Not available

44

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

28

Husqvarna 539910211

KEY, #9 WOODRUFF

$3.99

$

In Stock, only 4 left!

0

9

Husqvarna 539923515

SPACER

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539104758

WHEEL.ASM.13X6.5-6.SILVER.COMM

$194.99

$

In Stock, only 1 left!

0

30

Husqvarna 539912730

E-RING 1"
(Superseded to 812000053)

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 539102035

SCRAPER (36 & 48)

$30.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0
