WH 4817 E (968999238) - Husqvarna 48" Walk-Behind Mower (2005-08) Wheels And Tires Parts Diagram

48" Walk-Behind Mower

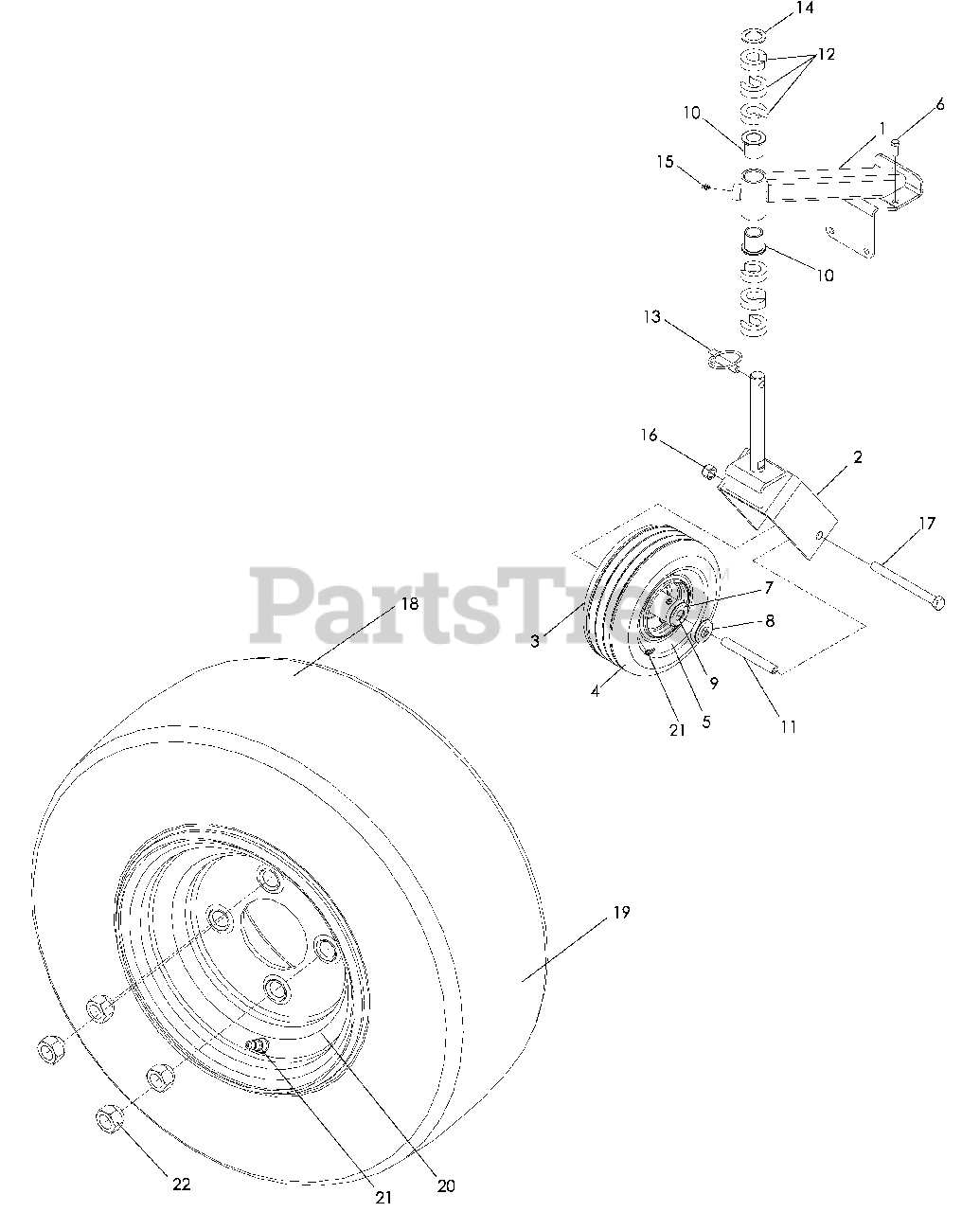

Wheels And Tires Parts Diagram

  • Title

1

Husqvarna 539110582

CASTER ARM W/BUSHINGS

$

$

Not available

2

Husqvarna 539109063

CASTER FORK

$241.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539104556

WHEEL ASSEMBLY, CASTER

$157.99

$

In Stock, only 1 left!

0

4

Husqvarna 539101905

TIRE, CASTER

$66.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539104618

RIM

$46.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990563

HCS, 3/8-16 x 1

$1.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539923557

ENDCAP
(Superseded to 539977356)

$15.99

$

In Stock, only 4 left!

0

8

Husqvarna 539977356

NOTCHED ENDCAP

$15.99

$

In Stock, only 4 left!

0

9

Husqvarna 539977353

ROLLER BEARING

$10.99

$

In Stock, Qty 7

0

10

Husqvarna 539101232

BUSHING, FLANGED

$6.49

$

In Stock, Qty 11

0

11

Husqvarna 539101872

SPACER

$31.99

$

In Stock, only 2 left!

0

12

Husqvarna 539101873

"C" SPACER

$4.99

$

In Stock, Qty 12

0

13

Husqvarna 539101874

LYNCH PIN, 7/16

$6.49

$

In Stock, Qty 5

0

14

Husqvarna 539916561

BUSHING

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539101907

HCS, ½-13 x 5½

$9.99

$

In Stock, Qty 12

0

18

Husqvarna 539109769

WHEEL ASSEMBLY, REAR

$

$

Not available

19

Husqvarna 539110503

TIRE, REAR

$72.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539110504

RIM, REAR

$54.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539912234

AIR VALVE

$6.49

$

In Stock, Qty 20+

0

22

Husqvarna 539101173

NUT, LUG ½

$

$

Not available
