WH 4818 (966638601) - Husqvarna 48" Walk-Behind Mower (2010-09) HANDLE & CONTROLS Parts Diagram

48" Walk-Behind Mower

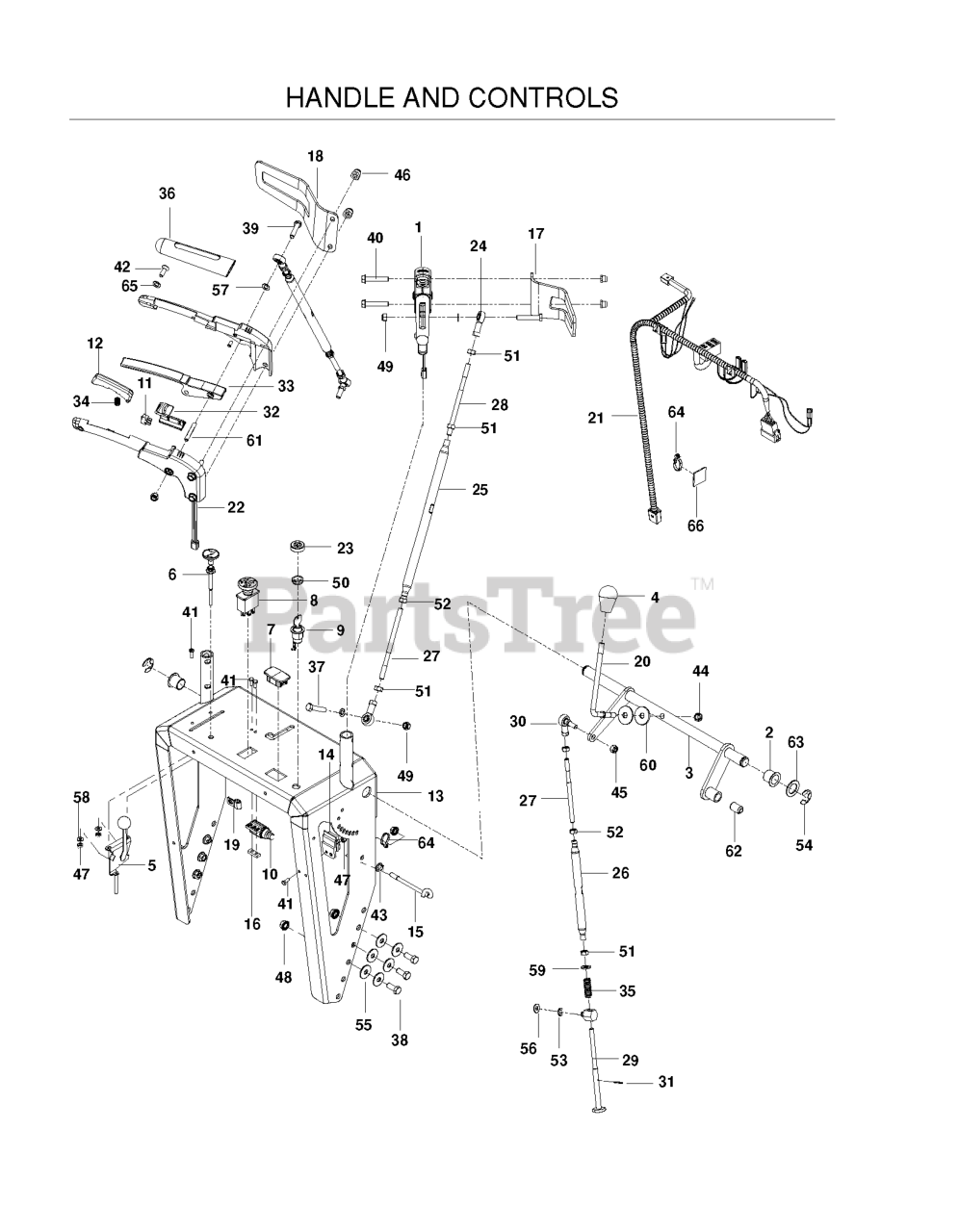

HANDLE & CONTROLS Parts Diagram

  • Title

66

Husqvarna 539110863

MOUNTING BLOCK CABLE TIE

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539132608

ROD - HEADED

$

$

Not available

17

Husqvarna 522421802

GUARD, HAND - OFFSET RH, PTD

$

$

Not available

11

Husqvarna 539132620

SWITCH

$

$

Not available

5

Husqvarna 576956401

CONTROL, THROTTLE

$

$

Not available

63

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 3 left!

0

34

Husqvarna 539132599

SPRING

$

$

Not available

22

Husqvarna 539132675

HARNESS - SWITCH

$

$

Not available

31

Husqvarna 539132614

ROLL PIN - 3 MM

$

$

Not available

49

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539100469

BOLT, TAP 5/16-18
(Superseded to 539990627)

$4.99

$

In Stock, Qty 10

0

39

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

48

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539103153

NUT M8-1.25 TOP NYL GR10 ZD

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539132603

ROD END 8 MM, W/STUD

$

$

Not available

58

Husqvarna 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

61

Husqvarna 539132635

PIN - GROOVE 1/4 X 1-1/2

$

$

Not available

52

Husqvarna 510098701

NUT, 8MM X 1.25 LEFT HAND

$

$

Not available

46

Husqvarna 505203401

NUT ACORN 5/16-18

$

$

Not available

19

Husqvarna 539109867

DOUBLE TUBE CLAMP

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539132624

KNOB - SHIFT

$7.49

$

In Stock, Qty 12

0

13

Husqvarna 522478101

HANDLE W/DECAL

$

$

Not available

12

Husqvarna 539132674

OPC ACTUATOR

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574454301

SHAFT, SPEED CONTROL

$

$

Not available

51

Husqvarna 539132607

NUT 8MM X 1.25 HEX ZD

$

$

Not available

15

Husqvarna 539132676

GUIDE - ROPE

$

$

Not available

9

Husqvarna 539911853

KEY SWITCH, COMPLETE

$

$

Not available

47

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

16

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, only 4 left!

0

36

Husqvarna 522950501

GRIP, FOAM

$

$

Not available

59

Husqvarna 510098601

WASHER, 10MM

$

$

Not available

14

Husqvarna 539101781

MODULE

$

$

Not available

1

Husqvarna 539132623

GRIP ASM

$

$

Not available

57

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

2

Husqvarna 539132520

BEARING - FLANGE, 20MM

$

$

Not available

26

Husqvarna 539132609

TUBE - ADJUSTING

$

$

Not available

35

Husqvarna 539101224

SPRING

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

53

Husqvarna 539132629

E-RING, 20MM

$

$

Not available

27

Husqvarna 539132605

STUD - LH

$

$

Not available

41

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539132602

ROD END 8 MM, RH

$

$

Not available

28

Husqvarna 539132604

STUD - RH

$

$

Not available

10

Husqvarna 522559601

SWITCH, NO PLUNGER TYPE

$

$

Not available

64

Husqvarna 539976856

TIE, PLASTIC

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532404951

PLUG DASH
(Superseded to 532439976)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 574206901

CABLE, CHOKE, 48"

$

$

Not available

60

Husqvarna 539912063

CONE WASHER

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539132618

LEVER

$

$

Not available

44

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

20

Husqvarna 522676001

ROD - SHIFT

$

$

Not available

42

Husqvarna 539132677

SCREW - OVAL HEAD 6MM

$

$

Not available

25

Husqvarna 539132601

TUBE - ADJUSTING

$

$

Not available

43

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539103177

DNO IGNITION NUT

$3.99

$

In Stock, only 3 left!

0

38

Husqvarna 539108507

HCS 3/8-16 X 7/8 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539112483

SPRING WASHER - .38

$8.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539132617

LOCK - NEUTRAL

$

$

Not available

65

Husqvarna 522432401

NEEDS DESCRIPTION

$

$

Currently unavailable

40

Husqvarna 525841401

HHFS 5/16-18 X 1.75 GR8 ZC

$

$

Not available

21

Husqvarna 522446801

HARNESS, UPPER HANDLE

$56.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

In Stock, only 2 left!

0

62

Husqvarna 574454601

DETENT

$

$

Not available

18

Husqvarna 522421702

GUARD, HAND - OFFSET LH, PTD

$

$

Not available

54

Husqvarna 539132613

E-RING, 10MM

$

$

Not available
