WH 4818 (966638601) - Husqvarna 48" Walk-Behind Mower (2010-09) MOWER DECK / CUTTING DECK Parts Diagram

48" Walk-Behind Mower

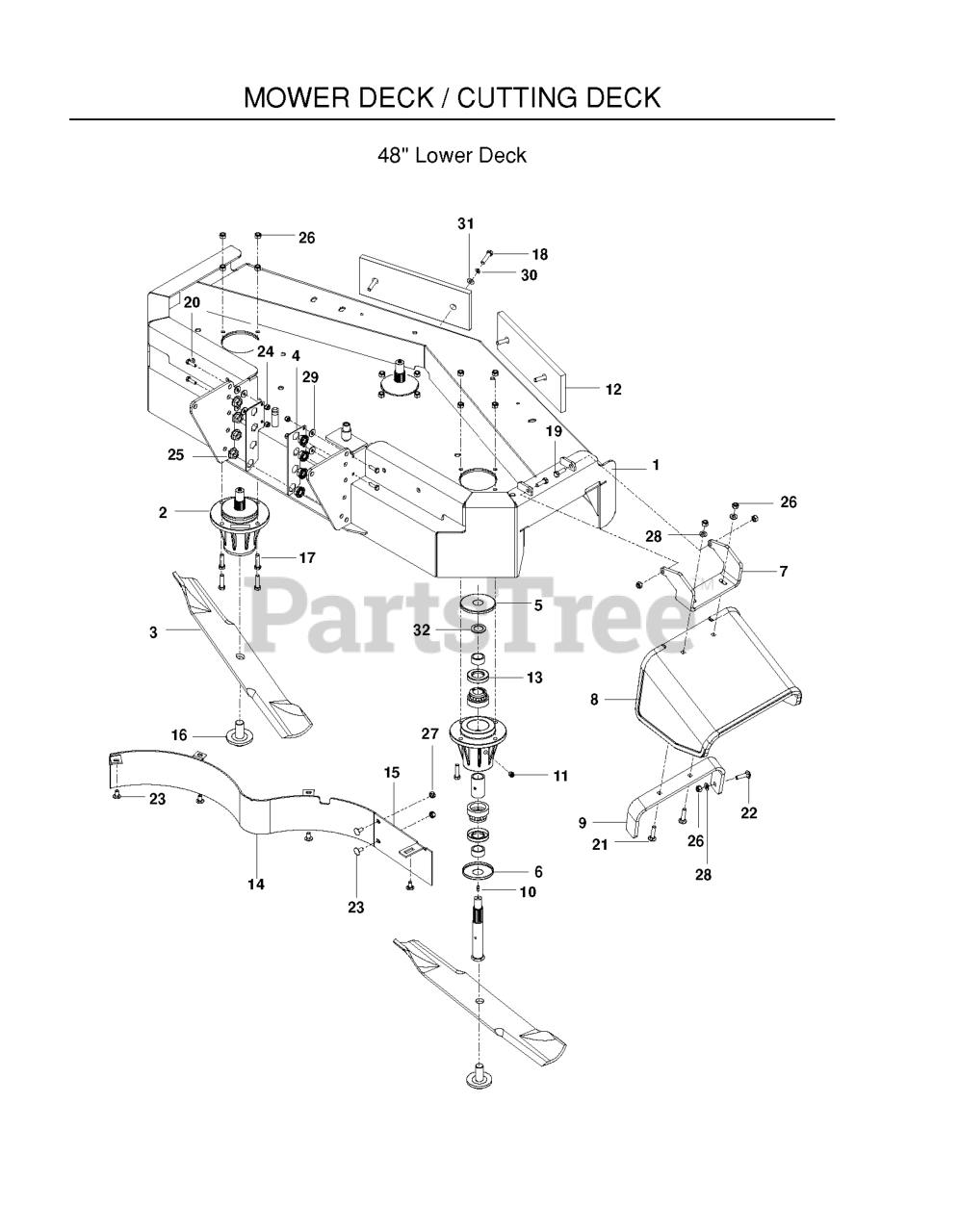

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

5

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990643

HCS 1/4-20X7/8 GR5

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 510283202

BAFFLE WLDT, BLACK

$

$

Not available

25

Husqvarna 506113501

NUT FLANGE 1/2-13 GR 5

$

$

Not available

6

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

16

Husqvarna 539119007

BLADE BOLT/WASHER

$8.99

$

In Stock, Qty 18

0

29

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

28

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539132592

PLATE NUT - PAINTED

$

$

Not available

17

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

19

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539132583

HINGE CHUTE - BLACK

$

$

Not available

21

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

8

Husqvarna 539130903

CHUTE, RUBBER DISCHARGE WB

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539131385

HOUSING ASM, 72
(Superseded to 966956201)

$519.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539108374

HCS 1/2-13 X 1-1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 522000502

WEIGHT, COUNTER, ORANGE

$

$

Not available

24

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539977326

PLUG-VENTED

$13.99

$

In Stock, only 1 left!

0

15

Husqvarna 539105444

CENTER BAFFLE 48"

$72.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539100340

BLADE OEM 16 1/4"

$15.99

$

In Stock, Qty 15

0

31

Husqvarna 539990250

WASHER 1/2" FLAT

$1.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

13

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 19

0

1

Husqvarna 522478301

DECK SVC W/DECALS WH4818

Note: w/ SAFETY DECALS

$

$

Not available

9

Husqvarna 539130922

BRKT, REINF-CHUTE WB

$

$

Not available
