WH 4818 (966638601) - Husqvarna 48" Walk-Behind Mower (2010-09) WHEELS & TIRES Parts Diagram

48" Walk-Behind Mower

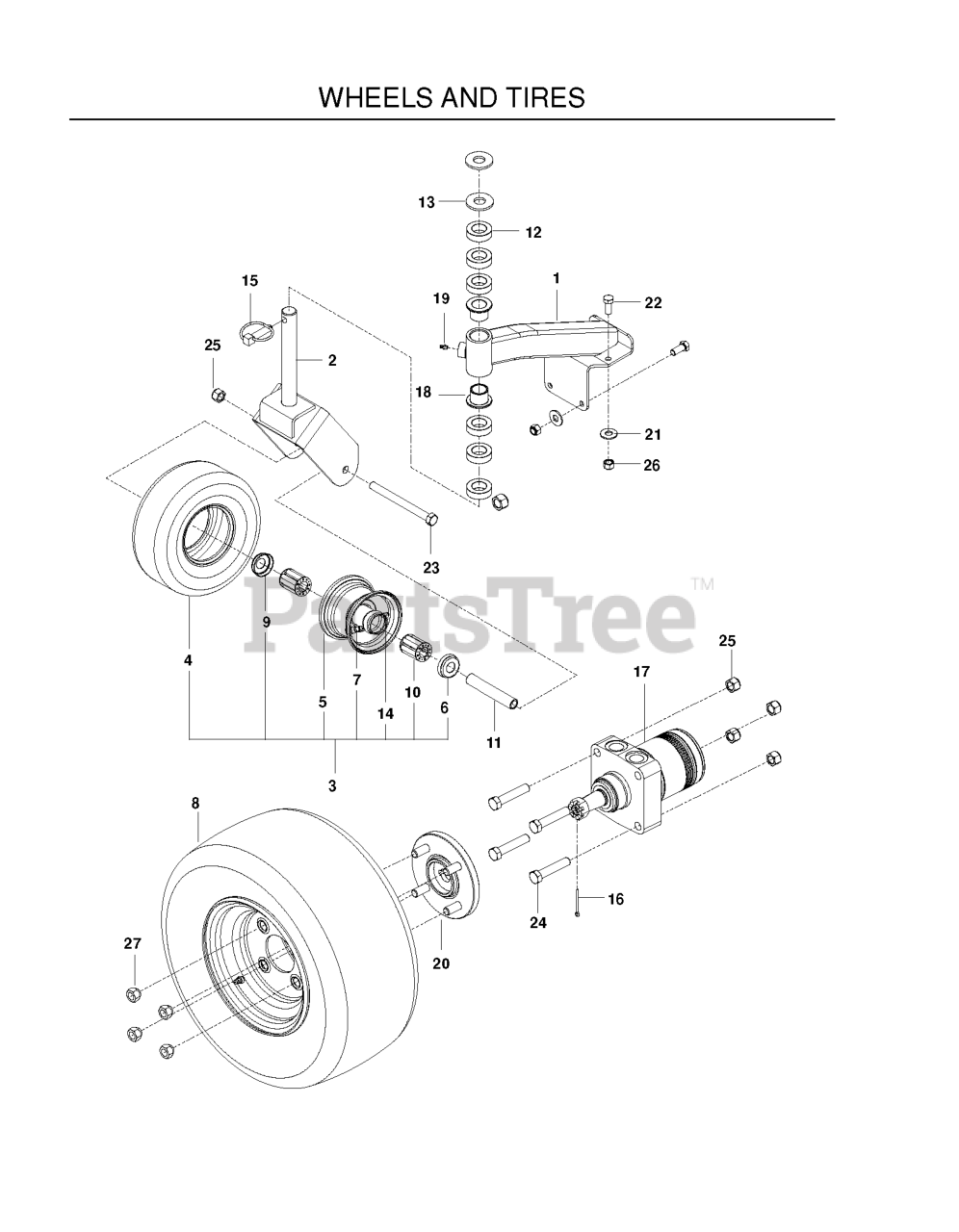

WHEELS & TIRES Parts Diagram

  • Title

19

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 539101872

SPACER

$31.99

$

In Stock, only 2 left!

0

15

Husqvarna 539101874

LYNCH PIN 7/16

$6.49

$

In Stock, Qty 5

0

3

Husqvarna 539104556

TIRE/WHEEL.CASTER.9X3.5-4.SMOO

$157.99

$

In Stock, only 1 left!

0

17

Husqvarna 539103527

WHEEL MOTOR

$

$

Not available

6

Husqvarna 539923557

ENDCAP
(Superseded to 539977356)

$15.99

$

In Stock, only 4 left!

0

24

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$3.99

$

In Stock, only 1 left!

0

13

Husqvarna 521994501

SPACER, .25 HEIGHT ADJ

$

$

Not available

5

Husqvarna 539104618

RIM

$46.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990297

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539977353

ROLLER BEARING

$10.99

$

In Stock, Qty 7

0

25

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

12

Husqvarna 539132678

SPACER

$

$

Not available

21

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539106656

BSHG 1.003X1.252X1.75 LG OIL

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539132689

HUB, WHEEL

$

$

Not available

23

Husqvarna 539101907

HCS 1/2C X 5 1/2

$9.99

$

In Stock, Qty 12

0

8

Husqvarna 522413001

WHEEL ASSY, 16 X 7.5-8 OFFSET

$

$

Not available

4

Husqvarna 539101905

TIRE 9 X 3.5 - 4

$66.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539132588

CASTER WELDMENT PAINTED

$

$

Not available

Husqvarna 521911601

MOTOR, TE0230 REVERSE PORTED

Note: NOT SHOWN

$

$

Not available

14

Husqvarna 539910003

GREASE ZERK

$

$

Not available

1

Husqvarna 539132683

CASTER SUPPORT ORANGE

$400.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 539977356

ENDCAP, NOTCHED

$15.99

$

In Stock, only 4 left!

0

22

Husqvarna 539108507

HCS 3/8-16 X 7/8 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0
