WS 230 (CMXGTAMD27SC) (41CD27SC793) - Craftsman String Trimmer Engine Assembly Parts Diagram

String Trimmer

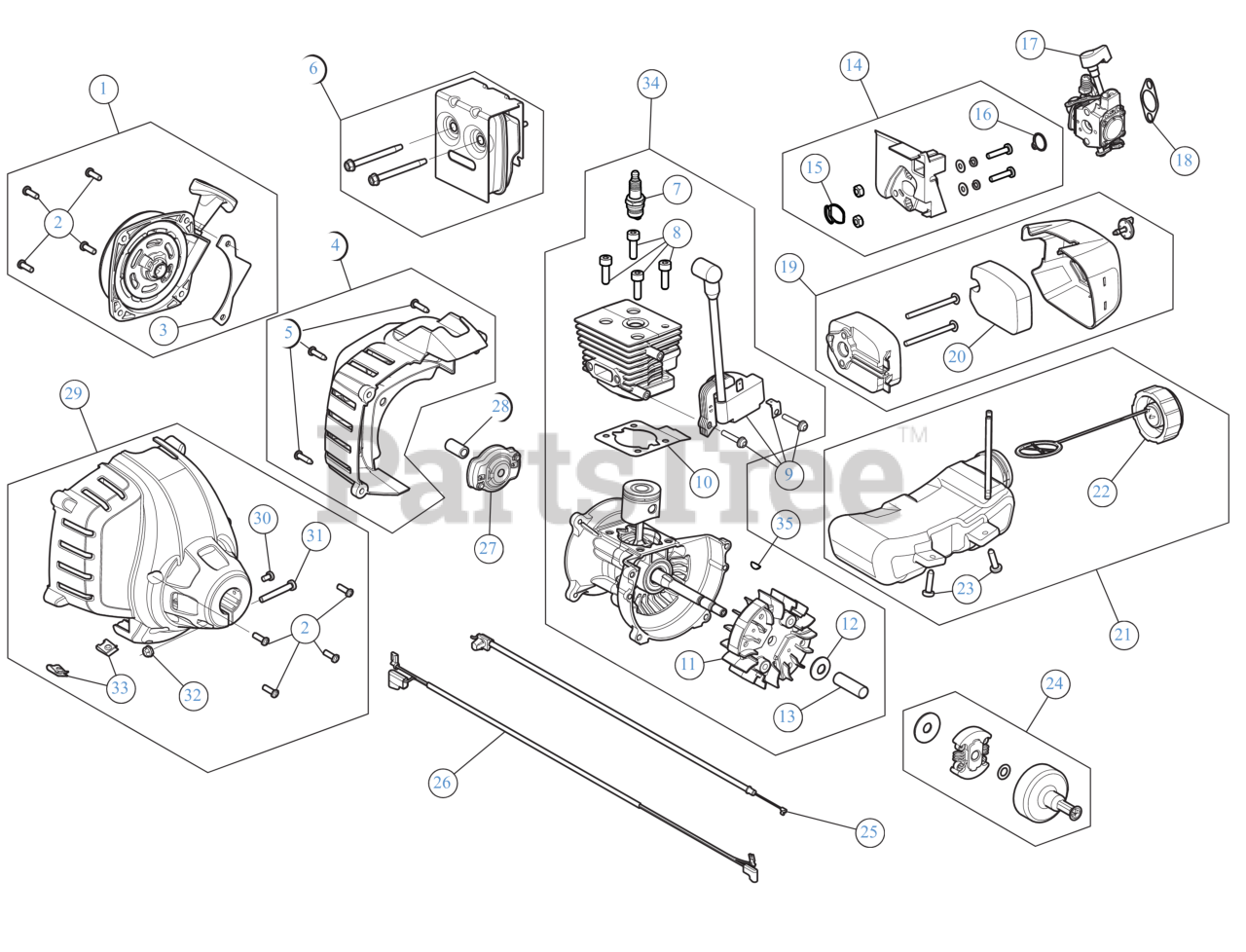

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06829

STARTER ASSEMBLY RR

Note: (Incl. 2 & 3)

$20.99

$

In Stock, Qty 20+

0

2

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

3

MTD 753-06244

STARTER GUARD

Note: (Incl. 2)

$3.99

$

In Stock, Qty 7

0

4

MTD 753-06245

REAR ENGINE COVER

Note: (Incl. 5)

$

$

Not available

5

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 17

0

6

MTD 753-08745

MUFFLER ASSEMBLY

$26.99

$

In Stock, only 3 left!

0

7

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

8

MTD 710-04715

SCREW 1/4 x 20 x .8125

$6.99

$

Usually ships in 3-6 days

0

9

MTD 753-06303

MODULE MA-103

$53.99

$

In Stock, Qty 7

0

10

MTD 753-06827

GASKET CYL

$3.49

$

In Stock, only 4 left!

0

11

MTD 753-06246

FLYWHEEL ASSEMBLY 27CC

$21.99

$

Usually ships in 3-6 days

0

12

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 5

0

13

MTD 753-06248

SPACER

$3.49

$

Usually ships in 3-6 days

0

14

MTD 753-06189

INTAKE ASSEMBLY

Note: (Incl. 15 & 16)

$7.99

$

In Stock, Qty 20+

0

15

MTD 753-06184

O-RING

$3.49

$

In Stock, Qty 20+

0

16

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

17

MTD 753-06288

CARBURETOR

$37.99

$

In Stock, Qty 20+

0

18

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

19

MTD 753-06953

AIRCLEANER ASSEMBLY

Note: (Incl. 20)

$13.99

$

In Stock, Qty 8

0

20

MTD 753-06954

AIR FILTER

$2.99

$

In Stock, Qty 20+

0

21

MTD 753-06250

FUEL TANK ASSEMBLY

Note: (Incl. 22 & 23)

$21.99

$

In Stock, Qty 20+

0

22

MTD 791-182612

FUEL CAP ASSEMBLY

$20.99

$

In Stock, Qty 18

0

23

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, Qty 9

0

24

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 20+

0

25

MTD 946-04824

THROTTLE CABLE

$3.99

$

Usually ships in 3-6 days

0

26

MTD 753-05877

LEAD WIRES

$9.99

$

Usually ships in 3-6 days

0

27

MTD 753-06091

PAWL ASSEMBLY AC5

$9.49

$

In Stock, Qty 20+

0

28

MTD 753-06104

ELECTRIC START ADP

$4.49

$

In Stock, Qty 14

0

29

MTD 753-09364

CLUTCH COVER ASSEMBLY

Note: (Incl. 2, 30 - 33)

$15.99

$

Usually ships in 3-6 days

0

30

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

31

MTD 9689A

SCREW

$11.99

$

In Stock, only 2 left!

0

32

MTD 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

33

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 2 left!

0

34

MTD 753-08666

SHORT BLOCK 27CC

Note: (Incl. 7 - 13)

$88.99

$

Usually ships in 3-6 days

0

35

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

Usually ships in 3-6 days

0
