WT-1610 - Echo Wheeled Trimmer (SN: 100WTB000001 - 100WTB999999) AXLE Parts Diagram
Wheeled Trimmer

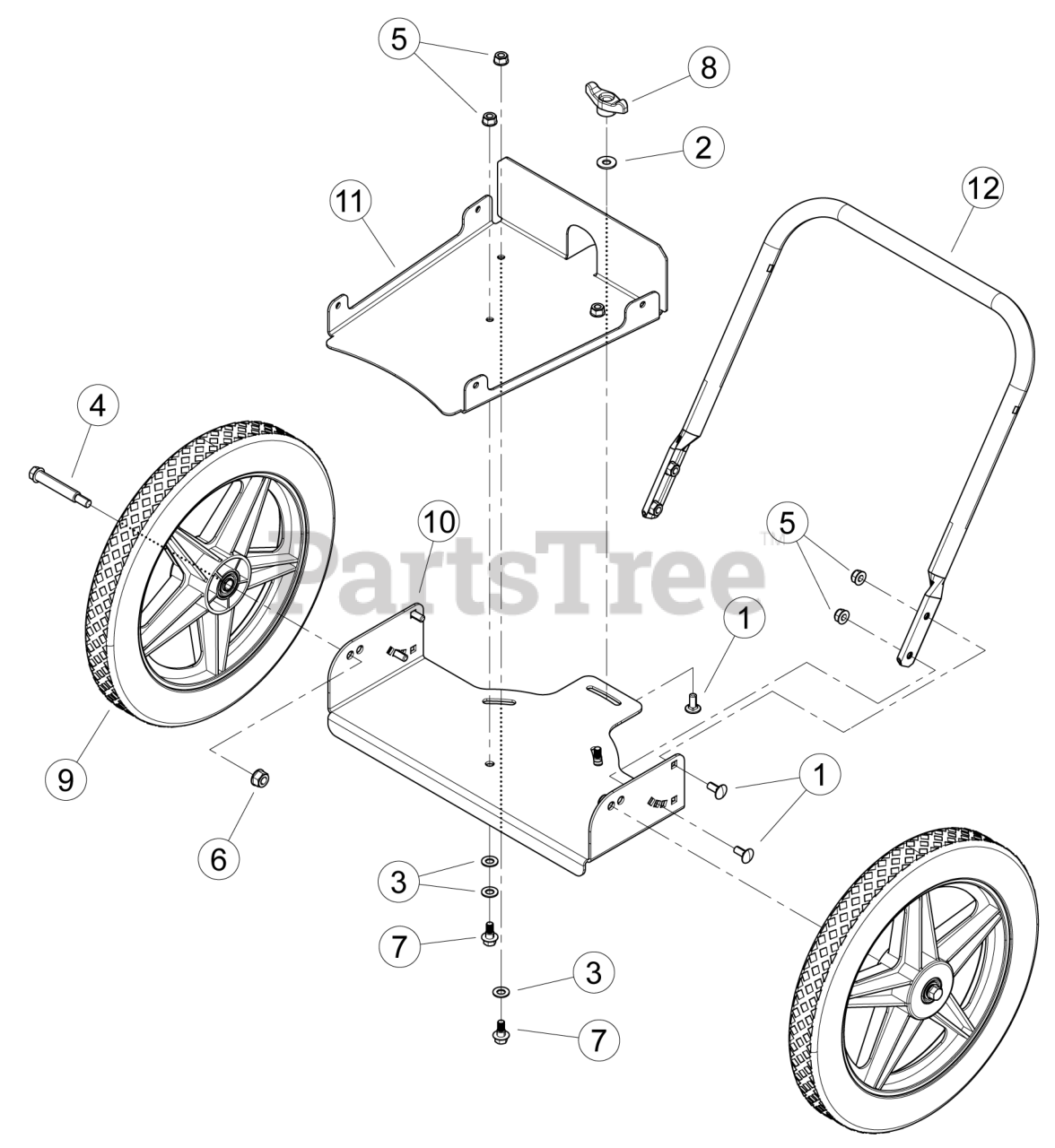

AXLE Parts Diagram
Echo YH434000110
BOLT, 5/16-18 × 3/4 SN GR5 CRG
$0.99
$
Usually ships in 2-4 days
Echo YH451000440
WASHER, 5/16 FLAT
$0.99
$
Usually ships in 2-4 days
Echo YH451000490
WASHER, NYLON .390 ID × .750 OD
$1.49
$
Usually ships in 2-4 days
Echo YH434000140
BOLT, 3/8-16 × 3-1/4 FLANGED SHOULDER
$12.99
$
Usually ships in 2-4 days
Echo YH449000040
NUT, 5/16-18 NYLOCK FLANGE
$0.99
$
Usually ships in 2-4 days
Echo YH449000050
NUT, 3/8-16 NYLOCK FLANGE
$0.99
$
Usually ships in 2-4 days
Echo YH434000150
BOLT, 5/16-18 × 3/4 ZP FLANGE SHOULDER
$7.49
$
Usually ships in 2-4 days
Echo YH452000690
KNOB, 5/16-18 FEEM TEE
$4.49
$
Usually ships in 2-4 days
Echo YH478000070
WHEEL, TRIMMER 15 × 1.75
$70.99
$
Usually ships in 2-4 days
Echo YH479000980
PLATE, TRIMMER AXLE
$62.99
$
Usually ships in 2-4 days
Echo YH479000990
PLATE, TRIMMER BASE PUSH
$34.99
$
Usually ships in 2-4 days
Echo YH466000160
HANDLE BAR, LOWER TRIMMER PAINTED
$75.99
$
Usually ships in 2-4 days
