WT30 X C (GC04) - Honda Water Pump, Made in Japan (SN: GC04-1000001 - GC04-9999999) FRAME BED + HOSE COUPLING Parts Diagram

Water Pump, Made in Japan

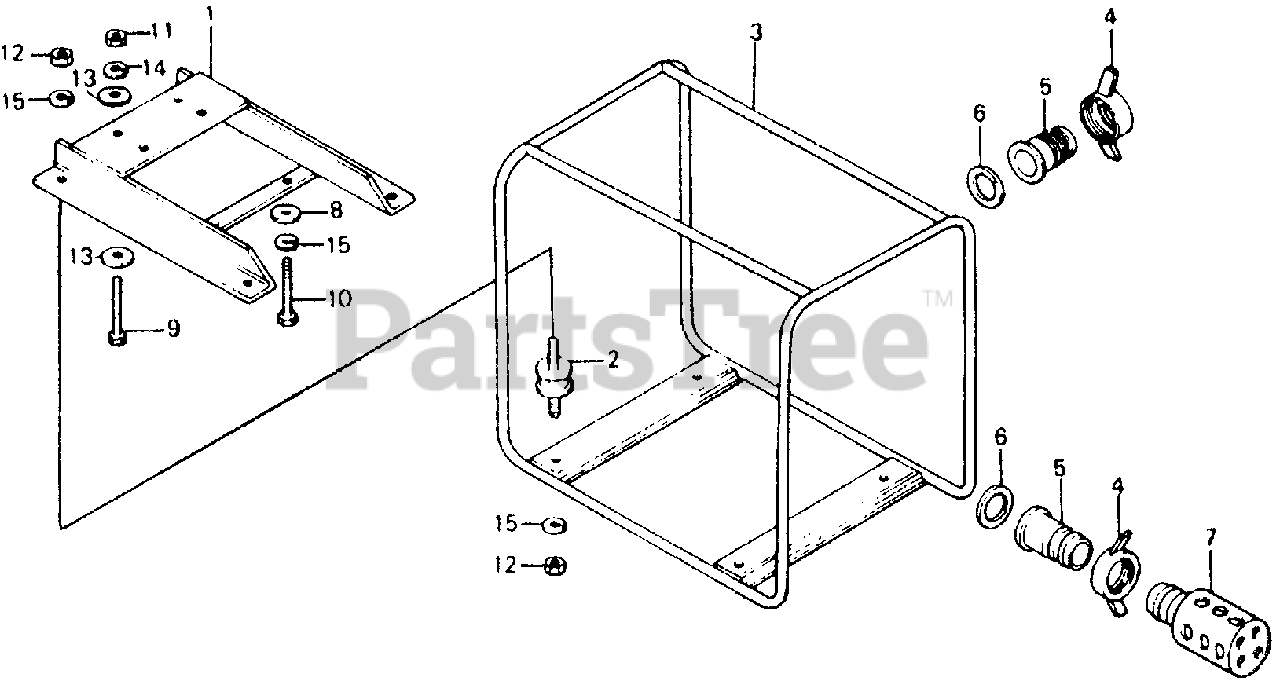

FRAME BED + HOSE COUPLING Parts Diagram

  • Title
1

Honda 78203-YB2-701

BASE, ENGINE

$

$

Currently unavailable

2

Honda 78205-YB1-003

RUBBER, CUSHION (NOT AVAILABLE)

$

$

Not available

3

Honda 78206-YB2-701

PIPE, BASE

$

$

Currently unavailable

4

Honda 78311-YB2-003

COUPLING, HOSE

$

$

Not available

5

Honda 78316-YB2-003

JOINT, SUCTION

$

$

Not available

6

Honda 78317-YB2-003

GASKET, HOSE COUPLING

$11.99

$

Usually ships in 3-6 days

0

7

Honda 78325-YB2-901

STRAINER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 92101-10050-0A

BOLT, HEX. (10X50)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 92000-10025-0A

SEE PART DETAILS - SUP; BOLT, HEX. (10X25)

$

$

Currently unavailable

10

Honda 92101-10025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

12

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

13

Honda 94101-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0
