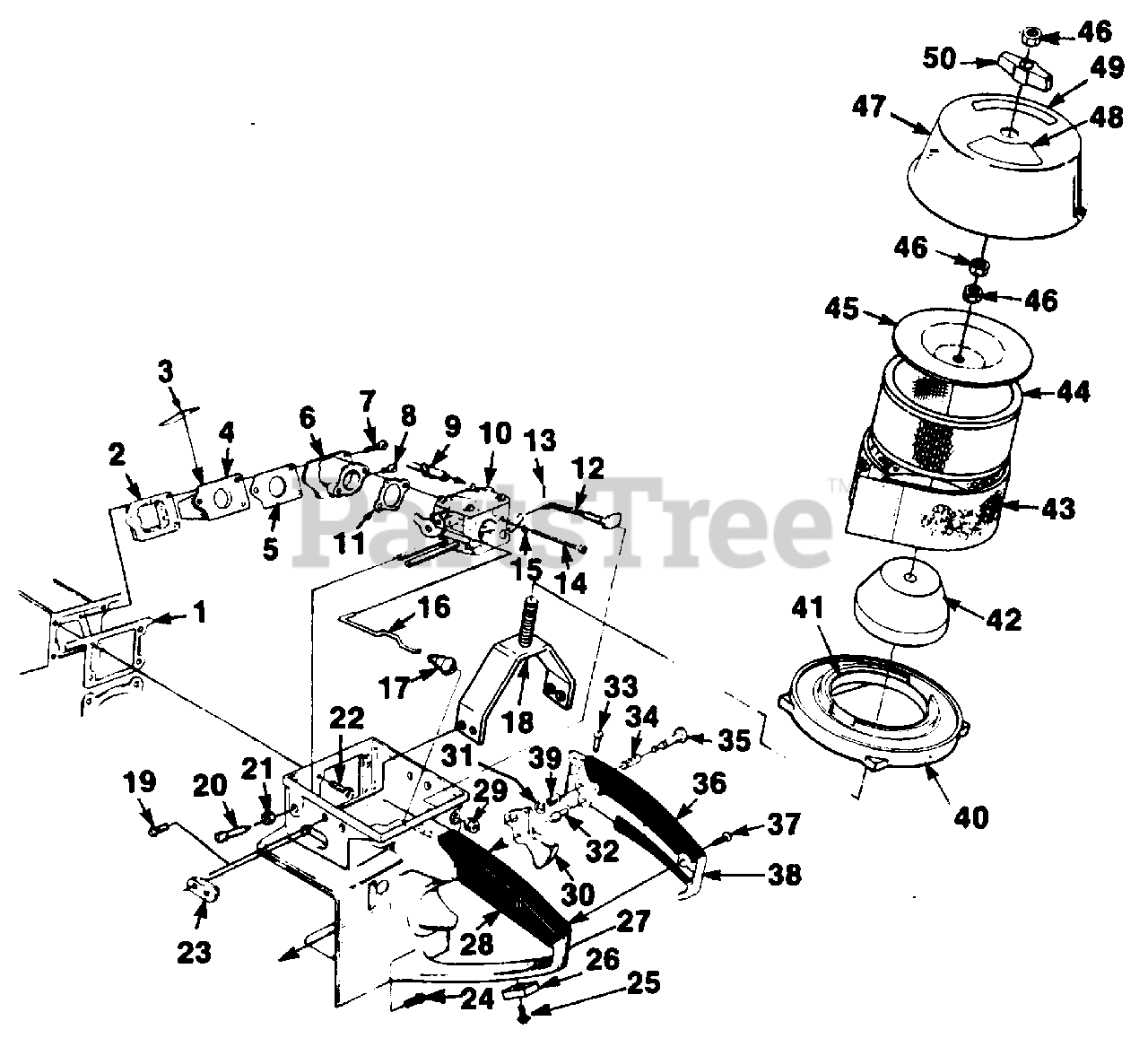

XL 98 D (UT-05049) - Homelite Multi Purpose Saw Carburetor Chamber & Air Cleaner Parts Diagram

Multi Purpose Saw

Carburetor Chamber & Air Cleaner Parts Diagram

  • Title

1

Homelite 63779C

GASKET

$

$

Not available

2

Homelite 63370A

RETAINER- Reed

$6.49

$

Usually ships in 3-7 days

0

3

Homelite 63166A

REED- Valve

$3.99

$

In Stock, only 1 left!

0

4

Homelite 63371B

SEAT- Reed Valve

$

$

Not available

5

Homelite 65483

GASKET

$

$

Not available

6

Homelite A674601

SPACER-Carburetor

$

$

Currently unavailable

7

Homelite 82570

SCREW- (8-32 x 1 1/4")

$

$

Not available

8

Homelite 82173

SCREW- Pan hd. (8-32 x 1")
(Superseded to 82540)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 9311252

FUEL LINE

$

$

Currently unavailable

10

Homelite A01694

CARBURETOR

$

$

Currently unavailable

11

Homelite 67540

GASKET

$

$

Not available

12

Homelite 672011

CHOKE ROD

$

$

Not available

13

Homelite 86324

COTTER PIN

$

$

Not available

14

Homelite 82179

SCREW- (10-32 x 1 7/8")

$

$

Not available

15

Homelite 83046

WASHER- Lock (#10)

$

$

Not available

16

Homelite 63266A

ROD- Throttle

$

$

Currently unavailable

17

Homelite 58348

BOOT-Throttle rod

$

$

Not available

18

Homelite A02786

BRACKET- Cover
(Superseded to UP08105)

$

$

Not available

19

Homelite 88042

SCREW

$

$

Not available

20

Homelite 63369A

SCREW- Idle Adjustment

$

$

Not available

21

Homelite 81117

NUT-Jam (5/16-24)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 80676

SCREW- Hex hd. (12-24 x 5/8")

$

$

Not available

23

Homelite 69751

GROMMET

$

$

Not available

24

Homelite 80891

SCREW- Hex hd. (12-24 x 7/8")

$

$

Not available

25

Homelite 88049

SCREW- (10-24 x 1/2")

$

$

Not available

26

Homelite 496861

PAD- Wear

$

$

Currently unavailable

27

Homelite A01845

HANDLE- Throttle
(Superseded to A01845A)

$

$

Currently unavailable

28

Homelite 68767

GRIP- Throttle handle

$

$

Not available

29

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

30

Homelite 65745

TRIGGER

$

$

Not available

31

Homelite 58409

RING- Retaining

$4.49

$

Usually ships in 3-7 days

0

32

Homelite 65719

PIN

$

$

Not available

33

Homelite 800232

SCREW- (8-32 x 5/8")

$

$

Not available

34

Homelite 58405

SPRING- Throttle lock

$

$

Not available

35

Homelite 95671

PIN- Throttle
(Superseded to UP05997)

$2.49

$

In Stock, only 2 left!

0

36

Homelite 68768

GRIP- Throttle handle

$

$

Not available

37

Homelite 80560

SCREW- Pan hd. (8-32 x 1/2")

$

$

Not available

38

Homelite A69045

COVER- Throttle handle

$

$

Not available

39

Homelite 59064

BUSHING

$

$

Not available

40

Homelite A50952B

RING & GASKET ASSY.

$

$

Currently unavailable

41

Homelite 50951

GASKET

$

$

Not available

42

Homelite 49786

FILTER- Air

$12.99

$

Usually ships in 3-7 days

0

43

Homelite 49213

PRE FILTER- Felt

$17.99

$

Usually ships in 3-7 days

0

44

Homelite 54620B

ELEMENT- Air filter

$

$

Not available

45

Homelite 49212

COVER- Filter Element

$

$

Not available

46

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

47

Homelite A491421

AIR FILTER COVER

$

$

Currently unavailable

Homelite 50951

GASKET- (#40)

$

$

Not available

48

Homelite 49687

DECAL- Warning

$

$

Not available

49

Homelite 49263

DECAL- Instruction

$4.49

$

Usually ships in 3-7 days

0

50

Homelite JA339550

KNOB- Handle

$

$

Not available
