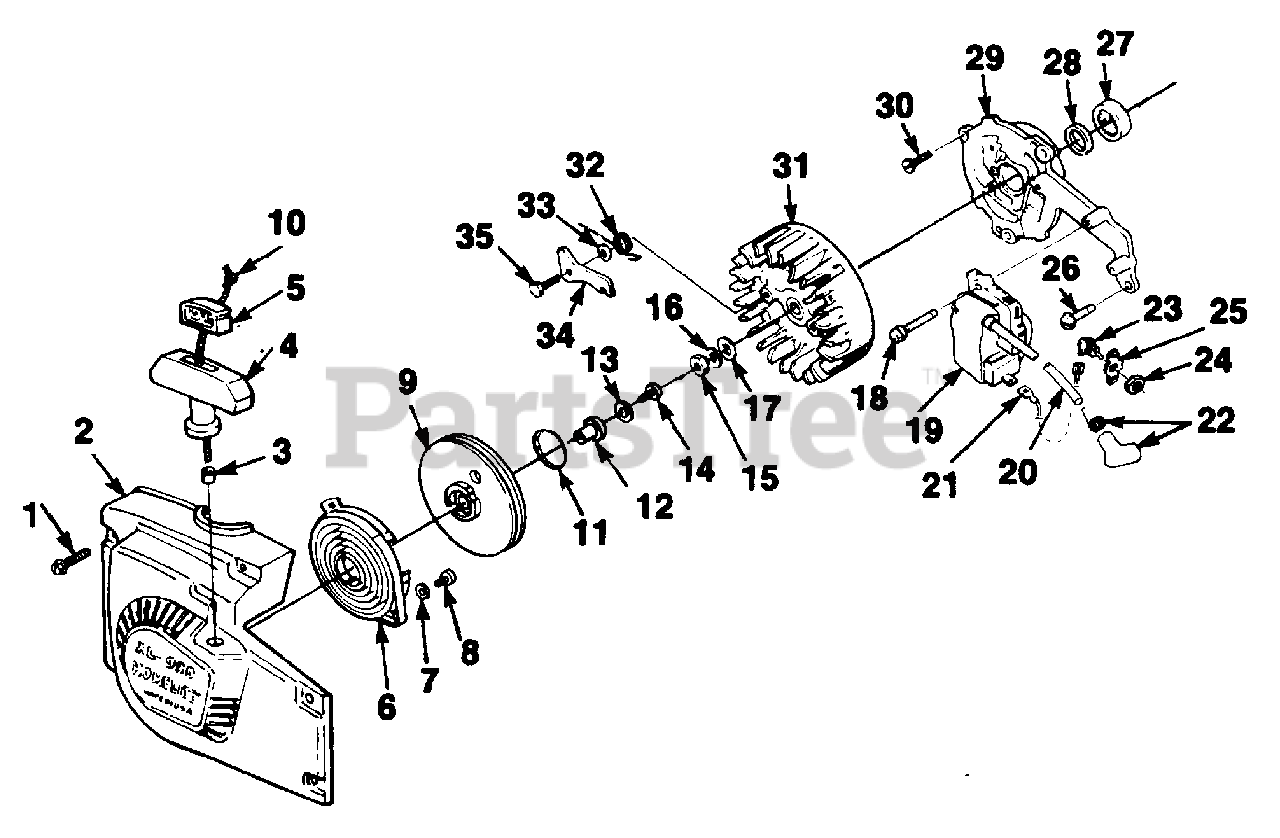

XL 98 D (UT-05049) - Homelite Multi Purpose Saw Starter & Ignition Parts Diagram

Multi Purpose Saw

Starter & Ignition Parts Diagram

  • Title

1

Homelite 80676

SCREW

$

$

Not available

2

Homelite A03619

HOUSING- Starter w/bushing
(Superseded to A03619A)

$

$

Not available

3

Homelite 67177

BUSHING

$

$

Not available

4

Homelite A69962B

GRIP-Starter

$11.99

$

Usually ships in 3-7 days

0

5

Homelite 70018A

INSERT

$

$

Not available

6

Homelite A98067

SPRING & RETAINER
(Superseded to A98067A)

$24.99

$

Usually ships in 3-7 days

0

7

Homelite 84025

WASHER

$

$

Not available

8

Homelite 82528

SCREW- Thd. form. (6-32 x 3/8")

$1.49

$

Usually ships in 3-7 days

0

9

Homelite A97990A

PULLEY & CUP
(Superseded to UP07034)

$

$

Not available

10

Homelite A00518

STARTER ROPE
(Superseded to 93418)

$

$

Currently unavailable

11

Homelite 02505

SPRING- Grip

$

$

Not available

12

Homelite 97992A

BUSHING- Starter rope
(Superseded to UP07218)

$

$

Not available

13

Homelite 58763

WASHER- Flat

$

$

Not available

14

Homelite 93417

SCREW- (10 x 7/8")
(Superseded to 82409)

$

$

Not available

15

Homelite 81124A

NUT- Hex (3/8-24)

$

$

Not available

16

Homelite 83102

WASHER- Lock (3/8")

$

$

Not available

17

Homelite 84010

WASHER- Flat (3/8")
(Superseded to PS84010)

$

$

Not available

18

Homelite 88044

SCREW- Sems Hex hd. (8-32 x 1")

$

$

Not available

19

Homelite A96798A

MODULE- Ignition
(Superseded to A96798AS)

$

$

Not available

20

Homelite 96743

LEAD- Hi-Tension

$

$

Not available

21

Homelite A94850

LEAD- Ground

$

$

Not available

22

Homelite A33055

TERMINAL- Spark plug

$

$

Not available

23

Homelite A576503B

SWITCH- Grounding

$

$

Not available

24

Homelite 72084A1

NUT
(Superseded to UP04146)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 12793A

PLATE- Indicating
(Superseded to UP07113)

$

$

Not available

26

Homelite 80052

SCREW- Sems Hex hd. (1/4-20 x 3/4")

$

$

Not available

27

Homelite 63195

BEARING- Roller

$

$

Not available

28

Homelite 12282A

SEAL
(Superseded to UP07436)

$6.99

$

In Stock, only 3 left!

0

29

Homelite A96799A

PLATE- Back

$

$

Not available

30

Homelite 80049

SCREW- (1/4-20 x 5/8")

$

$

Not available

31

Homelite 96801A

ROTOR

$

$

Not available

32

Homelite 01101

SPRING- Starter pawl

$

$

Not available

33

Homelite 84115

WASHER- Flat
(Superseded to 588512)

$

$

Not available

34

Homelite 58756A

STARTER PAWL

$

$

Currently unavailable

35

Homelite 64054C

SCREW- Shoulder

$

$

Not available
