XL 98 E (UT-05060) - Homelite Multi Purpose Saw Air Cleaner - Throttle Handle Parts Diagram

Multi Purpose Saw

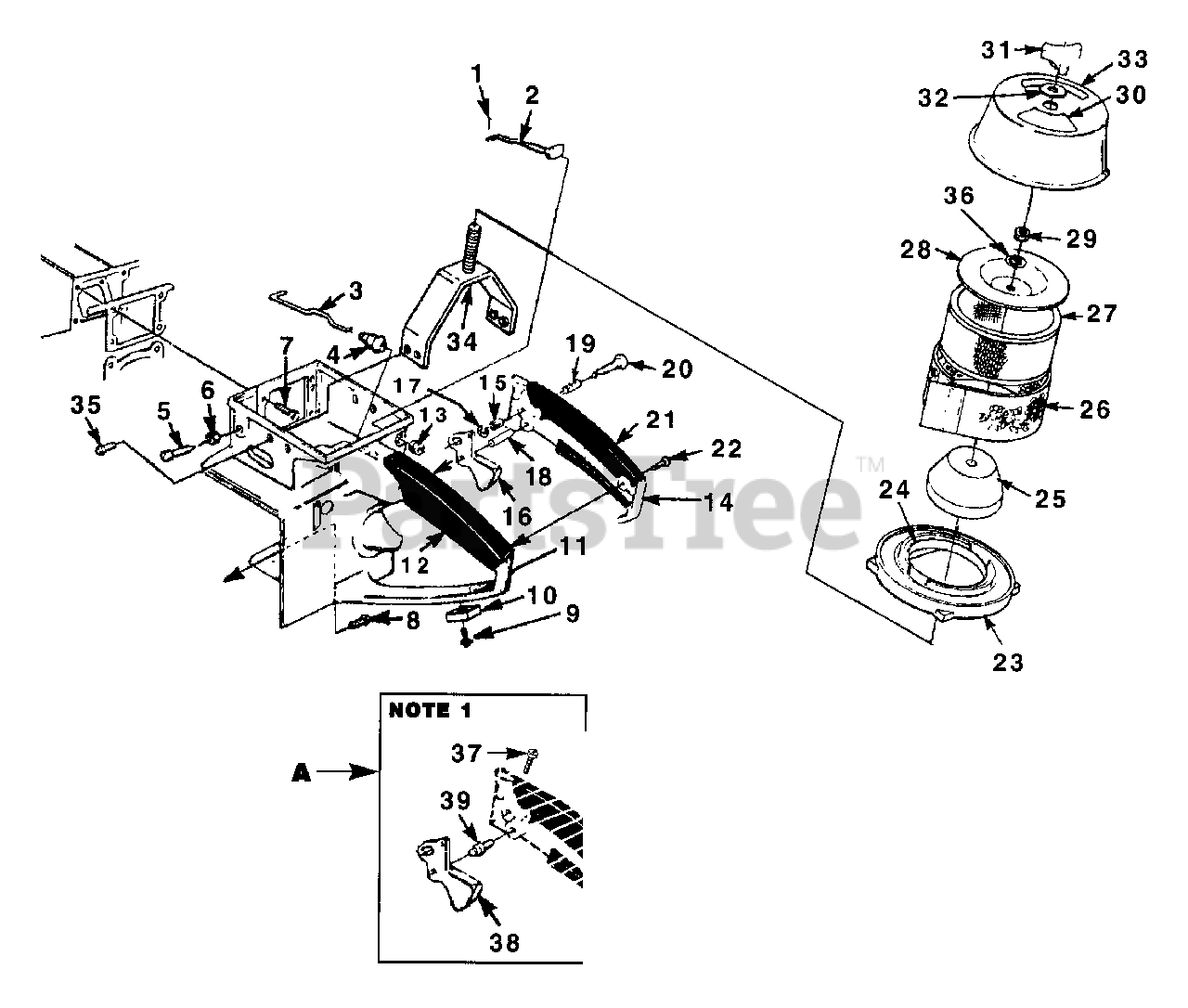

Air Cleaner - Throttle Handle Parts Diagram

  • Title

1

Homelite 86324

COTTER PIN

$

$

Not available

2

Homelite 672011

CHOKE ROD

$

$

Not available

3

Homelite 63266A

ROD - Throttle

$

$

Currently unavailable

4

Homelite 58348

BOOT - Throttle Rod

$

$

Not available

5

Homelite 63369A

SCREW - Idle Adjustment

$

$

Not available

6

Homelite 81117

NUT - Jam (5/16-24)

Note: Torque Specs. 80-100 In/Lbs, 9.0-11.3 Nm

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 80676

SCREW - Hex hd (12-24 X 5/8")

Note: Torque Specs. 80-90 In/Lbs, 9.0-10.2 Nm ; 262 Red Required Locktite

$

$

Not available

8

Homelite 80891

SCREW - Hex hd (12-24 X 7/8")

Note: Torque Specs. 80-90 In/Lbs, 9.0-10.2 Nm ; 262 Red Required Locktite

$

$

Not available

9

Homelite 88049

SCREW - (10-24 X 1/2")

Note: Torque Specs. 20-30 In/Lbs, 2.2-3.4 Nm

$

$

Not available

10

Homelite 496861

PAD - Wear

$

$

Currently unavailable

11

Homelite A01845

HANDLE - Throttle
(Superseded to A01845A)

$

$

Currently unavailable

12

Homelite 68767

GRIP - Throttle Handle

$

$

Not available

13

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

14

Homelite A69045A

COVER - Throttle Handle
(Superseded to A69045)

$

$

Not available

15

Homelite 59064

BUSHING

$

$

Not available

16

Homelite 58859A

TRIGGER

$

$

Not available

17

Homelite 58409

RING - Retaining

$4.49

$

Usually ships in 3-7 days

0

18

Homelite 68548

PIN - Trigger

$

$

Not available

19

Homelite 58405

SPRING - Throttle lock

$

$

Not available

20

Homelite 95671

PIN - Throttle
(Superseded to UP05997)

$2.49

$

In Stock, only 2 left!

0

21

Homelite 68768

GRIP - Throttle Handle

$

$

Not available

22

Homelite 80560

SCREW - Pan hd (8-32 X 1/2")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$

$

Not available

Homelite A49556C

AIR FILTER KIT

$

$

Currently unavailable

23

Homelite A50952B

RING & GASKET ASSY

Note: Torque Specs. 70-90 In/Lbs, 7.9-10.1 Nm

$

$

Currently unavailable

24

Homelite 50951

GASKET

$

$

Not available

25

Homelite 49786

FILTER - Air

$12.99

$

Usually ships in 3-7 days

0

26

Homelite 49213

PRE FILTER - Felt

$17.99

$

Usually ships in 3-7 days

0

27

Homelite 546208

ELEMENT - Air Filter

$

$

Currently unavailable

28

Homelite 49212

COVER - Filter Element

$

$

Not available

29

Homelite 81162

NUT - Hex (5/16-18)

$

$

Not available

30

Homelite A49687

DECAL - Warning

$

$

Currently unavailable

31

Homelite 06365

KNOB - Handle

$

$

Not available

32

Homelite 02762A

GASKET
(Superseded to UP07434)

$

$

Not available

33

Homelite 49263

DECAL - Instruction

$4.49

$

Usually ships in 3-7 days

0

34

Homelite A02786

BRACKET - Cover
(Superseded to UP08105)

$

$

Not available

35

Homelite 88042

SCREW

$

$

Not available

36

Homelite 46072

GASKET

$

$

Not available

37

Homelite 800232

SCREW - (8-32 X 5/8")

$

$

Not available

38

Homelite 65745

TRIGGER

$

$

Not available

39

Homelite 65719

PIN

$

$

Not available
