XL 98 E (UT-05060) - Homelite Multi Purpose Saw Engine Internal - Fuel Tank Parts Diagram

Multi Purpose Saw

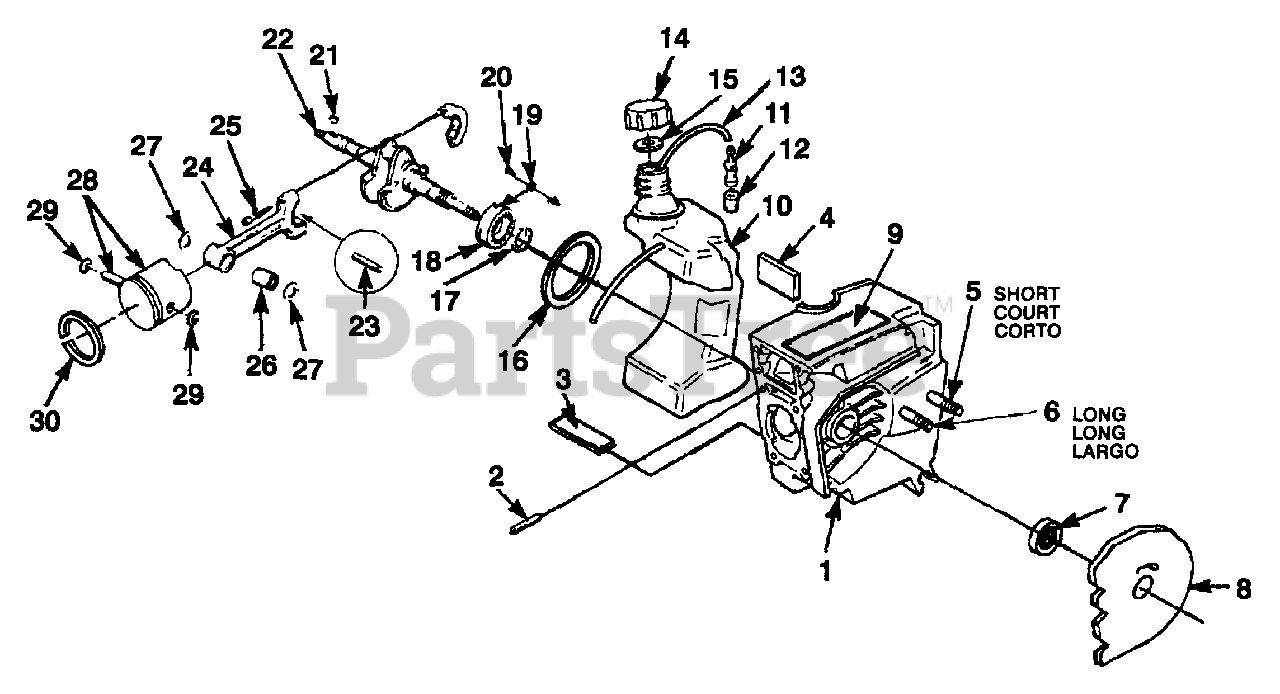

Engine Internal - Fuel Tank Parts Diagram

  • Title

1

Homelite A08335

CRANKCASE

$

$

Currently unavailable

2

Homelite 69438

STUD - Cylinder

$

$

Not available

3

Homelite 03027

SPACER - Fuel Tank

$

$

Not available

4

Homelite 03026A

SPACER - Fuel Tank

$

$

Currently unavailable

5

Homelite 02327

BOLT - (5/16-18 X 2 1/4")

$

$

Not available

6

Homelite 82595

BOLT - (5/16-18 X 2 1/2")

$

$

Not available

7

Homelite 12306

SEAL

$

$

Not available

8

Homelite 64156A

SAW DUST SHIELD

$

$

Not available

9

Homelite 46788A

DECAL - Instruction/Warning

$

$

Currently unavailable

10

Homelite A03498A

FUEL TANK

$

$

Not available

11

Homelite A97700

FILTER - Fuel
(Superseded to UP06516)

$

$

Not available

12

Homelite 592531A

ELEMENT - Filter

$6.99

$

Usually ships in 3-7 days

0

13

Homelite 931125B

TUBING - Rubber (13")

$

$

Currently unavailable

14

Homelite A00982B

CAP - Fuel
(Superseded to UP04111)

$

$

Not available

15

Homelite 98805A

GASKET - Fuel

$

$

Not available

16

Homelite 67559

"O" RING

$

$

Not available

17

Homelite 58319A

RING - Retaining

$

$

Not available

18

Homelite 58190

BEARING - Ball

$

$

Not available

19

Homelite 59705

WASHER - Lock

$

$

Not available

20

Homelite 70306

SCREW - Torx

Note: 10 - 32

$

$

Not available

21

Homelite 75078

KEY - Woodruff
(Superseded to UP07068)

$

$

Not available

22

Homelite 671684

CRANKSHAFT

$

$

Not available

23

Homelite A69056

BEARING - Needle

$

$

Currently unavailable

24

Homelite A69658A

ROD - Connecting

$

$

Currently unavailable

25

Homelite 69919

SCREW - Hex Hd. (8/32 X 1/2")

Note: Torque specs. 65-70 In/Lbs, 7.3 - 7.9 Nm

$

$

Not available

26

Homelite 69638A

BEARING

$

$

Not available

27

Homelite 68010

WASHER

$

$

Not available

28

Homelite A49314

PISTON & PIN ASSY.

$

$

Not available

29

Homelite 64742

RING - Retaining

$

$

Not available

30

Homelite 55537

PISTON RING

$13.99

$

Usually ships in 3-7 days

0
