XLS 1.54A XL (UT-01297) - Homelite Pump Carburetor Chamber Parts Diagram

Pump

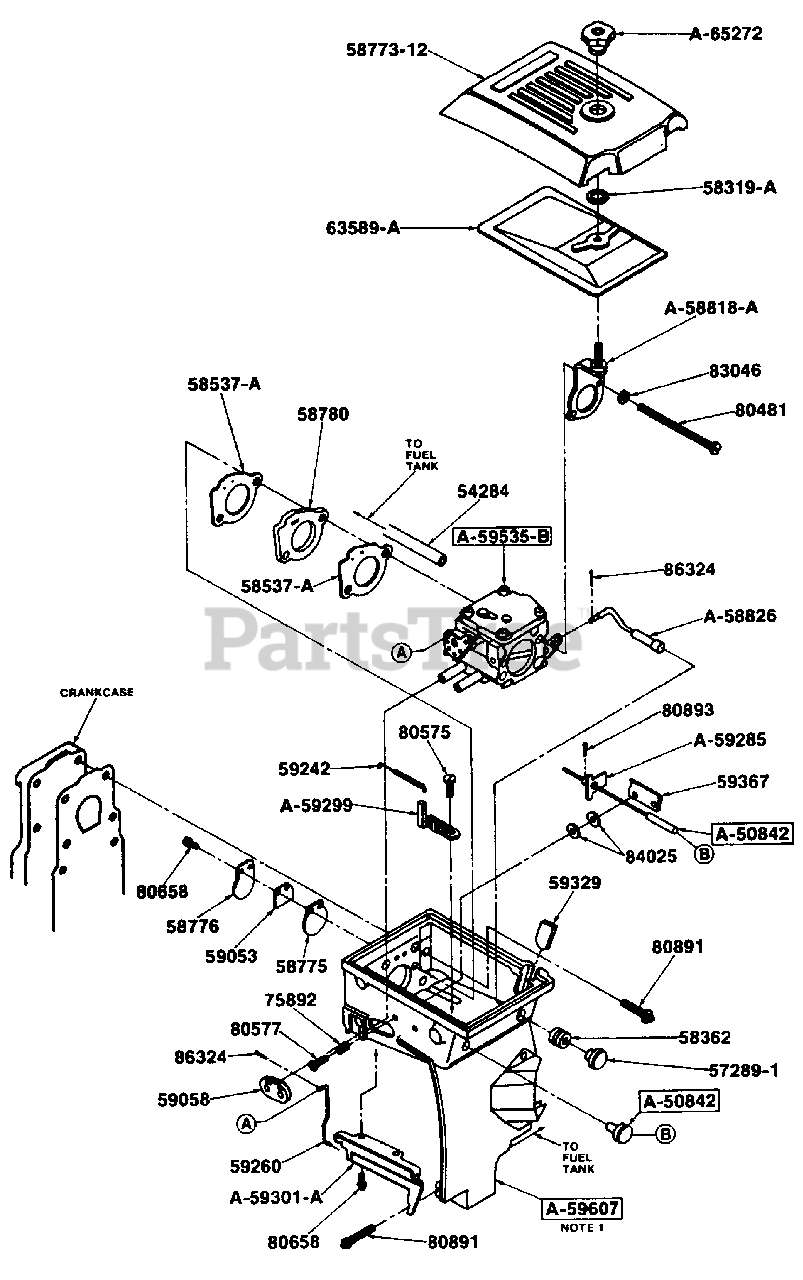

Carburetor Chamber Parts Diagram

  • Title

A-50842

Homelite A50842

ROD- Throttle

$

$

Currently unavailable

57289-1

Homelite 572891

BUTTON

$

$

Not available

54284

Homelite 54284

LINE- Fuel flexible

$

$

Not available

57289-1

Homelite 572891

BUTTON

$

$

Not available

58319-A

Homelite 58319-A

RING- Retainlng

$

$

Not available

58362

Homelite 58362

GROMMET

$

$

Not available

58537-A

Homelite 58537A

GASKET- Carburetor

$

$

Currently unavailable

58773-12

Homelite 5877312

COVER- Air filter
(Superseded to 587733A)

$

$

Not available

58775

Homelite 58775

REED

$

$

Not available

58776

Homelite 58776

STOP- Reed

$

$

Not available

58780

Homelite 58780

SPACER- Carburetor

$

$

Not available

A-58818-A

Homelite A58818A

BRACKET- Mounting

$

$

Not available

A-58826

Homelite A58826

ROD Choke

$

$

Currently unavailable

59053

Homelite 59053

SPRING- Reed

$

$

Not available

59058

Homelite 59058

GROMMET-"HI-LO"

$

$

Not available

59242

Homelite 59242

SPRING Governor

$

$

Not available

59260

Homelite 59260

LINK- Governor

$

$

Not available

A-59285

Homelite A59285

COLLAR Throttle rod

$

$

Currently unavailable

A-59299

Homelite A59299

PLATE- Speed adjusting

$

$

Not available

A-59301-A

Homelite A59301A

GOVERNOR Air vane

$

$

Not available

59329

Homelite 59329

PLUG- Felt

$

$

Not available

59367

Homelite 59367

CLAMP Throttle rod

$

$

Not available

A-59535-B

Homelite A59535B

CARBURETOR- (HS SC)

$

$

Currently unavailable

Homelite 59717

NEEDLE- Inlet

$

$

Currently unavailable

Homelite 95698

KIT Repair

$26.99

$

In Stock, only 1 left!

0

A-59607

Homelite A59607

CHAMBER- Carburetor

Note: Carburetor Chamber, A-59607 has three plugged holes. Remove these plugs to mount throttle rod and rod clamp.

$

$

Currently unavailable

Homelite 59222

PLUG- Button 1/4

$7.49

$

Usually ships in 3-7 days

0

Homelite 59787

PLUG- Button 3/16

$

$

Currently unavailable

Homelite 86301

COTTER- Pin

$

$

Not available

63589-A

Homelite 63589A

FILTER ELEMENT Air
(Superseded to UP06807)

$

$

Not available

A-65272

Homelite A65272

NUT- Cover
(Superseded to UP05611)

$18.99

$

Usually ships in 3-7 days

0

75892

Homelite 75892

SPRING

$5.99

$

Usually ships in 3-7 days

0

80481

Homelite 80481

SCREW- Hex, 10-32 x 21/4

$

$

Not available

80575

Homelite 80575

SCREW- Pan hd, 8-32 x 1/4

$

$

Not available

80577

Homelite 80577

SCREW- Pan, 8-32 x 3/8
(Superseded to UP03389)

$

$

Not available

80658

Homelite 80658

SCREW- Pan 4-40 x 3/16

$

$

Not available

80891

Homelite 80891

SCREW- Hex, 12-24 x 7/8

$

$

Not available

80893

Homelite 80893

SCREW- Set 4-40 x 1/8

$

$

Not available

83046

Homelite 83046

WASHER- Lock, #10

$

$

Not available

84025

Homelite 84025

WASHER- Flat, #8

$

$

Not available

86324

Homelite 86324

COTTER PIN

$

$

Not available
