XT1-LT 42 e (33ABA7CS710) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2019) Battery Parts Diagram

42" XT1 Enduro Lawn Tractor

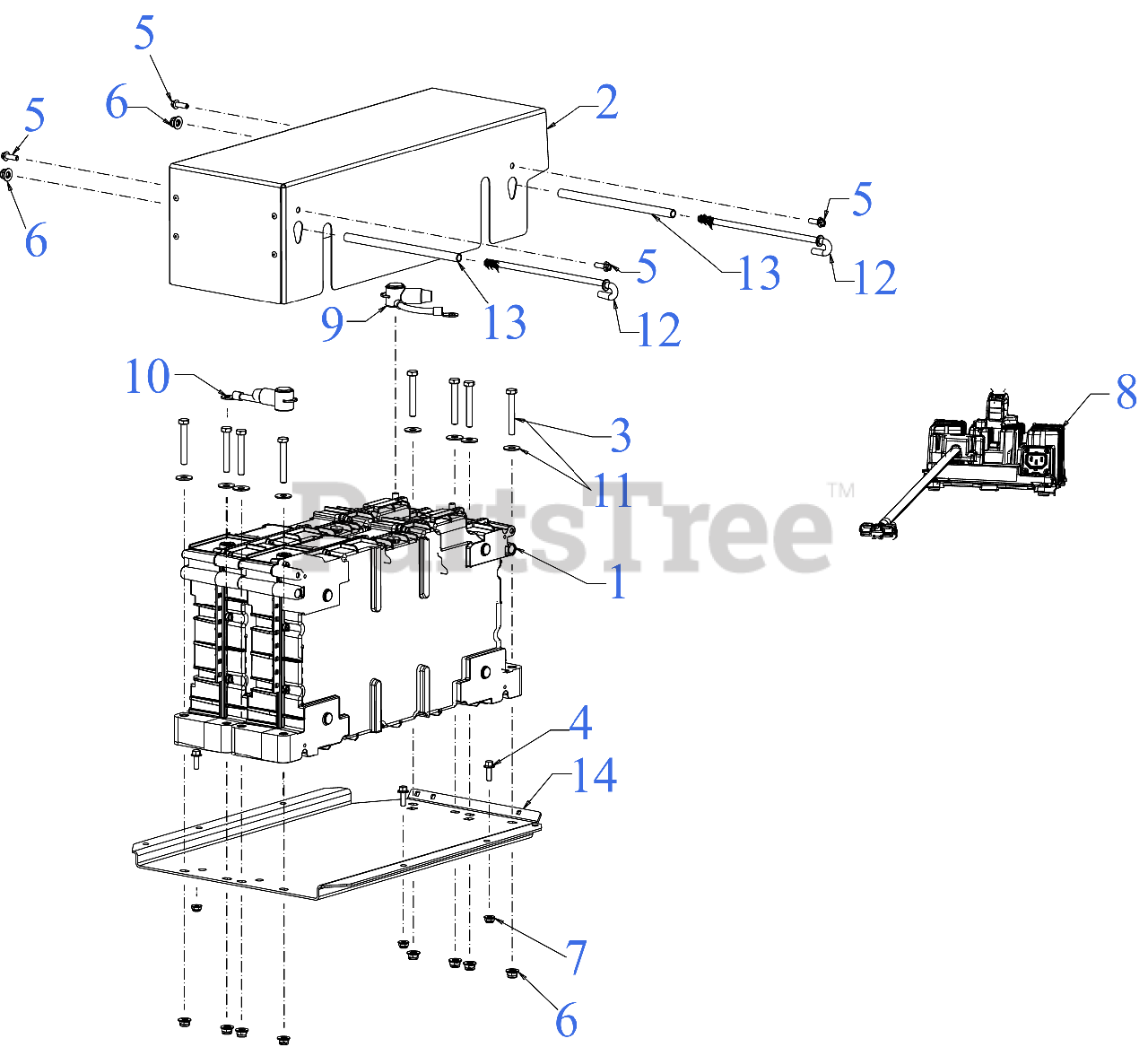

Battery Parts Diagram

  • Title

1

LI-ION BATTERY (48V 30AH)

Note: (Contact Local Dealer)

$

$

Not available

2

Cub Cadet 683Z05834

BATTERY COVER

$76.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-04666

SCREW 1/4-20 x .75 GR5

$6.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 725-07253

CHARGER (48V 650W)
(Superseded to 725-07253A)

$

$

Not available

9

Cub Cadet 725P10425

JUMPER BATTERY HARNESS

$35.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725P10505

JUMPER BATTERY HARNESS

$35.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

12

Cub Cadet 747-08510

BATTERY ROD

$22.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 750-08150

SPACER- .322" x .438" x 7.71"

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 783-10908

BATTERY PLATE BRACKET
(Superseded to 783-10908A)

Note: *CHOOSE COLOR WHEN ORDERING*

$47.99

$

Usually ships in 3-6 days

0
