XT2-GX 54 KH FAB (14A7A3CA010) - Cub Cadet 54" XT2 Enduro Garden Tractor, Fab Deck, Kohler (2015) Engine Accessories (Kohler Twin) Parts Diagram

54" XT2 Enduro Garden Tractor, Fab Deck, Kohler

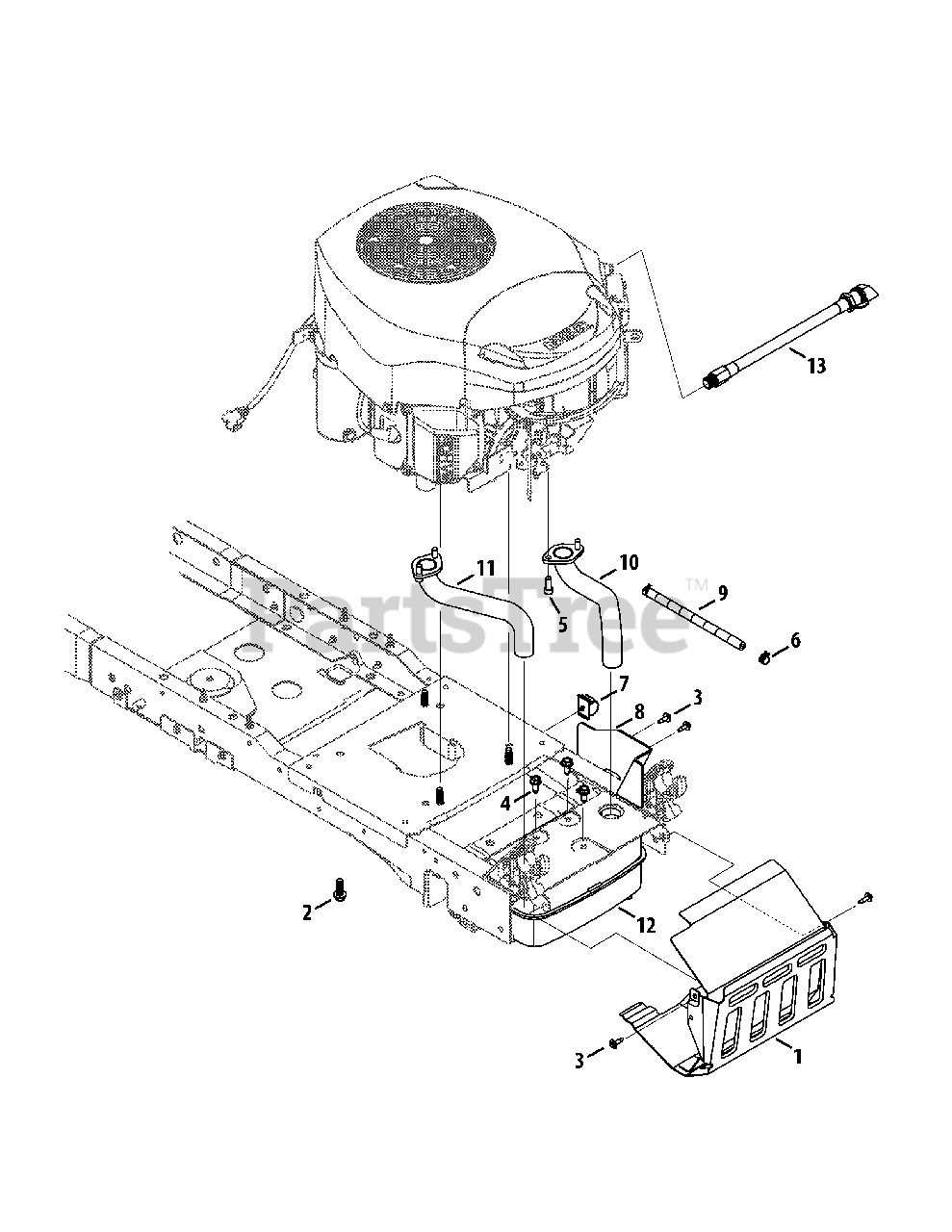

Engine Accessories (Kohler Twin) Parts Diagram

  • Title

1

Cub Cadet 983-05142

Shield Ass’y, Muffler
(Superseded to 983-05142A)

$81.99

$

In Stock, only 2 left!

0

2

Cub Cadet 710-04683C

Screw, Self-tapping, 3/8-16, 1.0

$6.49

$

In Stock, Qty 11

0

3

Cub Cadet 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-06256

Screw, Self-tapping, M8-1.25, .750

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1314A

Screw, Sokt Head, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 731-10746

Push Mount Wire Clip, .750
(Superseded to 731-10746A)

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 783-08814-0637

Muffler Shield
(Superseded to 783-08814A-0637)

$25.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 751-10349-16

Hose, Fuel, Low Permeation, 1/4

$19.99

$

In Stock, Qty 13

0

10

Cub Cadet 751-14478

Exhaust Pipe, LH
(Superseded to 751-14478A)

$52.99

$

In Stock, only 3 left!

0

11

Cub Cadet 751-14479

Exhaust Pipe, RH
(Superseded to 751-14479A)

$46.99

$

In Stock, only 2 left!

0

12

Cub Cadet 751-14503A

Muffler, Kohler
(Superseded to 951-14503D)

$74.99

$

In Stock, Qty 14

0

13

Cub Cadet 751-14836

Drain, Oil

$

$

Not available
