XT2-LX 42 KW FAB (13AGA1TEA10) - Cub Cadet 42" XT2 Enduro Lawn Tractor, Fab Deck, Kawasaki (2021) Manual PTO Parts Diagram

42" XT2 Enduro Lawn Tractor, Fab Deck, Kawasaki

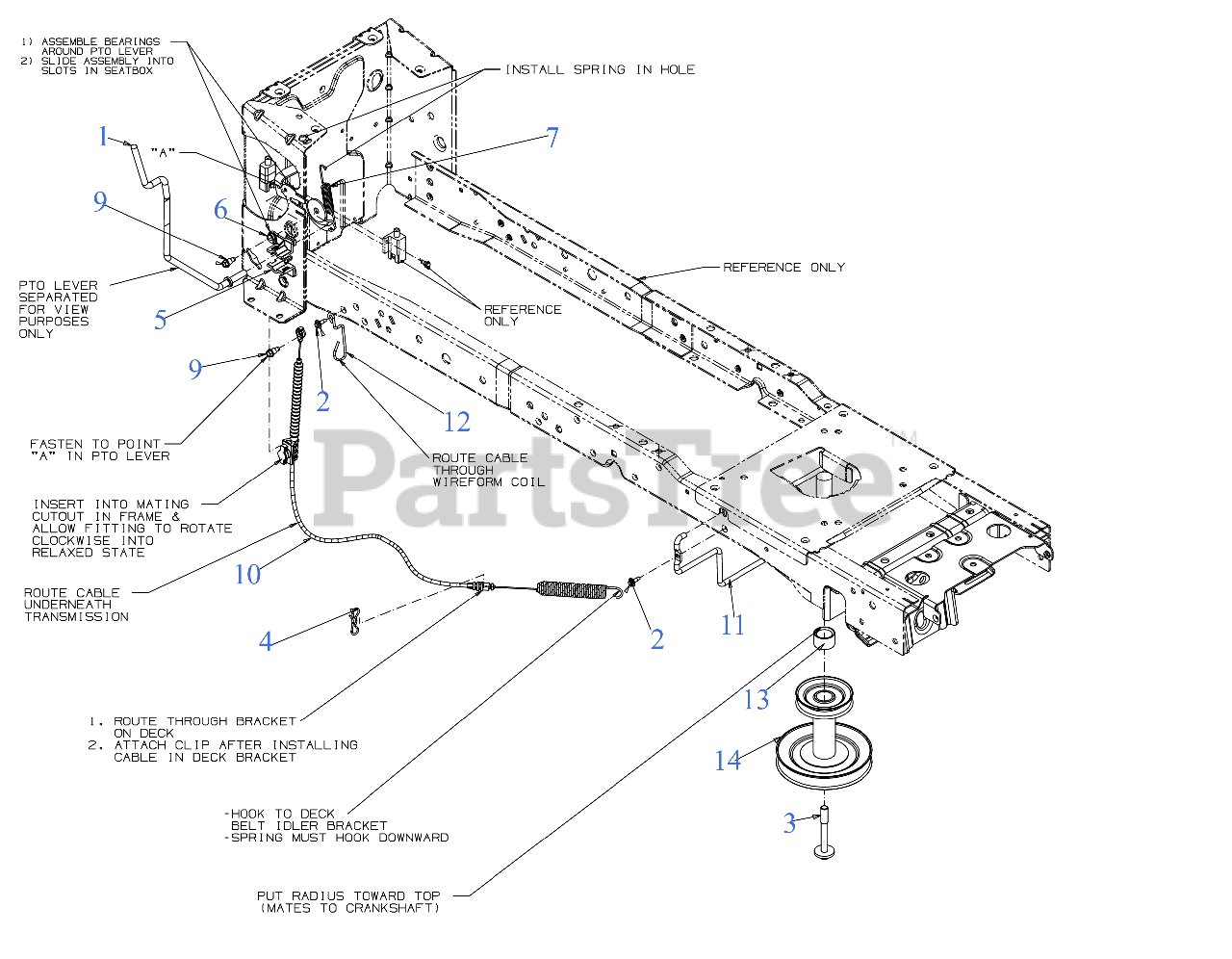

Manual PTO Parts Diagram

  • Title

1

Cub Cadet 983-05105A

PTO HANDLE ASSEMBLY

$39.99

$

In Stock, Qty 13

0

2

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-06266

SCREW 7/16-20 x 3.50

$13.99

$

In Stock, only 4 left!

0

4

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 731-10066A

PTO HANDLE BOTTOM BEARING

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-10067A

PTO HANDLE TOP BEARING
(Superseded to 731-10067C)

$4.49

$

In Stock, Qty 18

0

7

Cub Cadet 732-05119

EXTENSION SPRING .56 OD x 4.52

$9.49

$

In Stock, Qty 7

0

9

Cub Cadet 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 946-05087D

PTO HANDLE CABLE

$37.99

$

In Stock, Qty 20+

0

11

Cub Cadet 747-06239B

BELT KEEPER ROD

$25.99

$

In Stock, Qty 20+

0

12

Cub Cadet 747-06308

CABLE GUIDE WIRE

$3.49

$

In Stock, only 1 left!

0

13

Cub Cadet 748-05078A

ENGINE PULLEY SPACER

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 956-04067A

ENGINE PULLEY 3.56 x 6.12 DIA
(Superseded to 956-04067B)

$81.99

$

In Stock, only 3 left!

0
