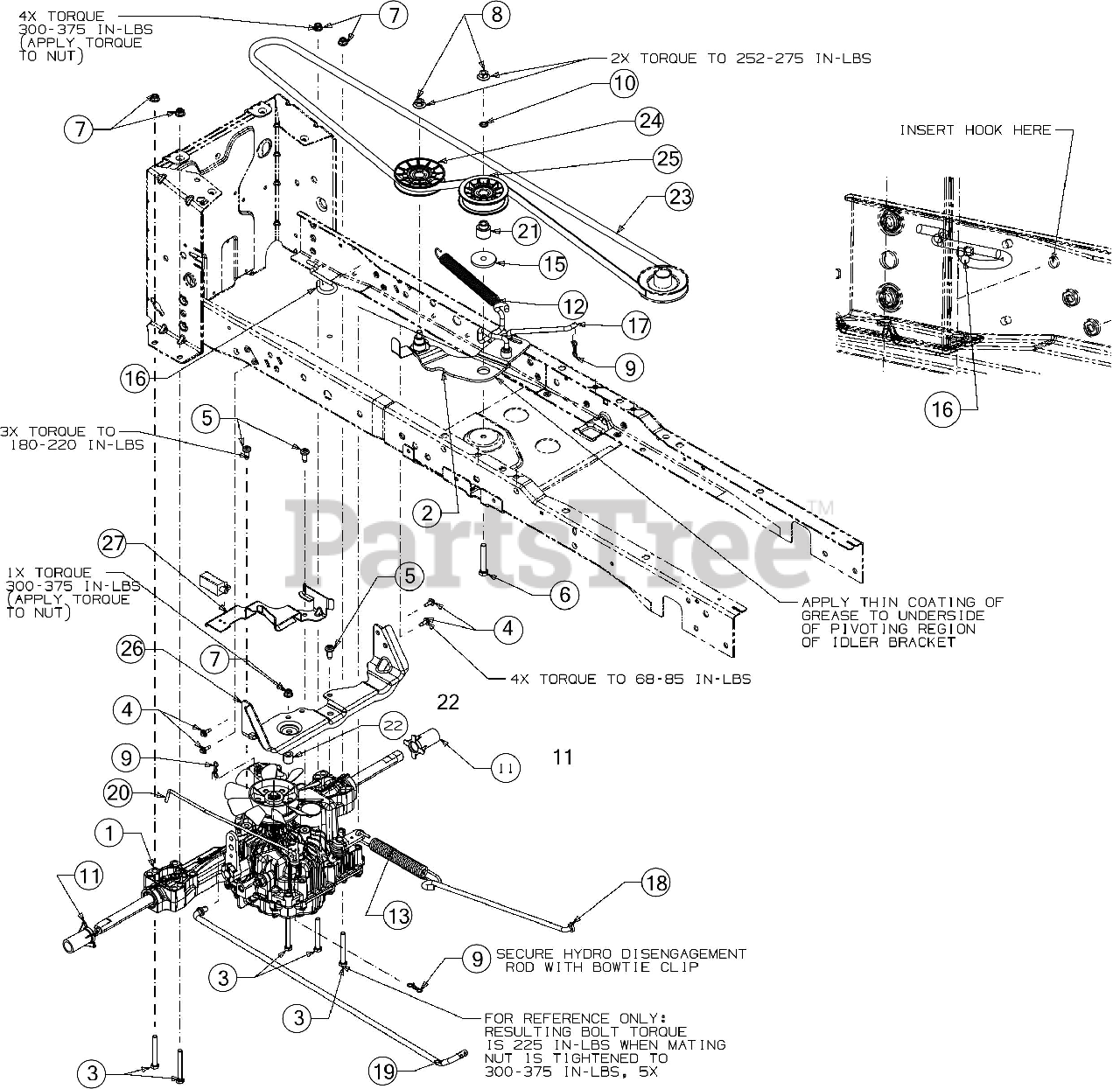

  • Title

1

Cub Cadet 918-07209

TRANSMISSION ASSEMBLY

$

$

Not available

2

Cub Cadet 750-0890

SPACER

$6.49

$

In Stock, Qty 7

0

2

Cub Cadet 983-05090A

IDLER BRACKET ASSEMBLY

$68.99

$

In Stock, only 4 left!

0

3

Cub Cadet 710-0378

SCREW 5/16-18 x 2.5 GR 5

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1611B

SCREW 5/16-18 x .750

$6.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04217

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0201

PUSH NUT

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet 731-08237

AXLE SLEEVE .765 ID x 2.11 LG

$3.99

$

In Stock, Qty 9

0

12

Cub Cadet 732-05108A

EXTENSION SPRING .790 DIA x 8.41

$12.99

$

In Stock, Qty 20+

0

13

Cub Cadet 732-05146

EXTENSION SPRING 0.90 DIA x 8.14

$11.99

$

In Stock, only 4 left!

0

14

N/A

GREASE-#251 EP (NOT SERVICEABLE)

Note: (Not Serviceable)

$

$

Not available

15

Cub Cadet 738-04162C

SHOULDER SPACER

$12.99

$

In Stock, Qty 20+

0

16

Cub Cadet 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 8

0

17

Cub Cadet 747-06193A

IDLER BRACKET LINK ROD
(Superseded to 747-06193B)

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 747-06251A

BRAKE ROD
(Superseded to 747-06251C)

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 747-06281A

HYDRO CONTROL ROD
(Superseded to 747E06281A)

$16.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 747-06447

HYDRO DISENGAGEMENT ROD

$7.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 748-05037B

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 750-06201

SPACER .34 x .75 x .63 LG

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 954-05027A

V-BELT A SEC x 91.10
(Superseded to 954-05027B)

$63.99

$

In Stock, Qty 20+

0

24

Cub Cadet 756-05024

V-IDLER PULLEY 3.56 OD

$23.99

$

In Stock, Qty 20+

0

25

Cub Cadet 756-05032

FLAT IDLER PULLEY 3.00 OD

$24.99

$

In Stock, Qty 20+

0

26

Cub Cadet 783-08463-0637

TRANSMISSON MOUNTING BRACKET
(Superseded to 783-08463A-0637)

$32.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-08991A

BELT KEEPER BRACKET

Variations

Cub Cadet 783-08991A-0637

BRKT-BELT KEEPER - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0
