Y 125 (21AK125G800) - Yard Machines Tiller (2015) General Assembly Parts Diagram

Tiller

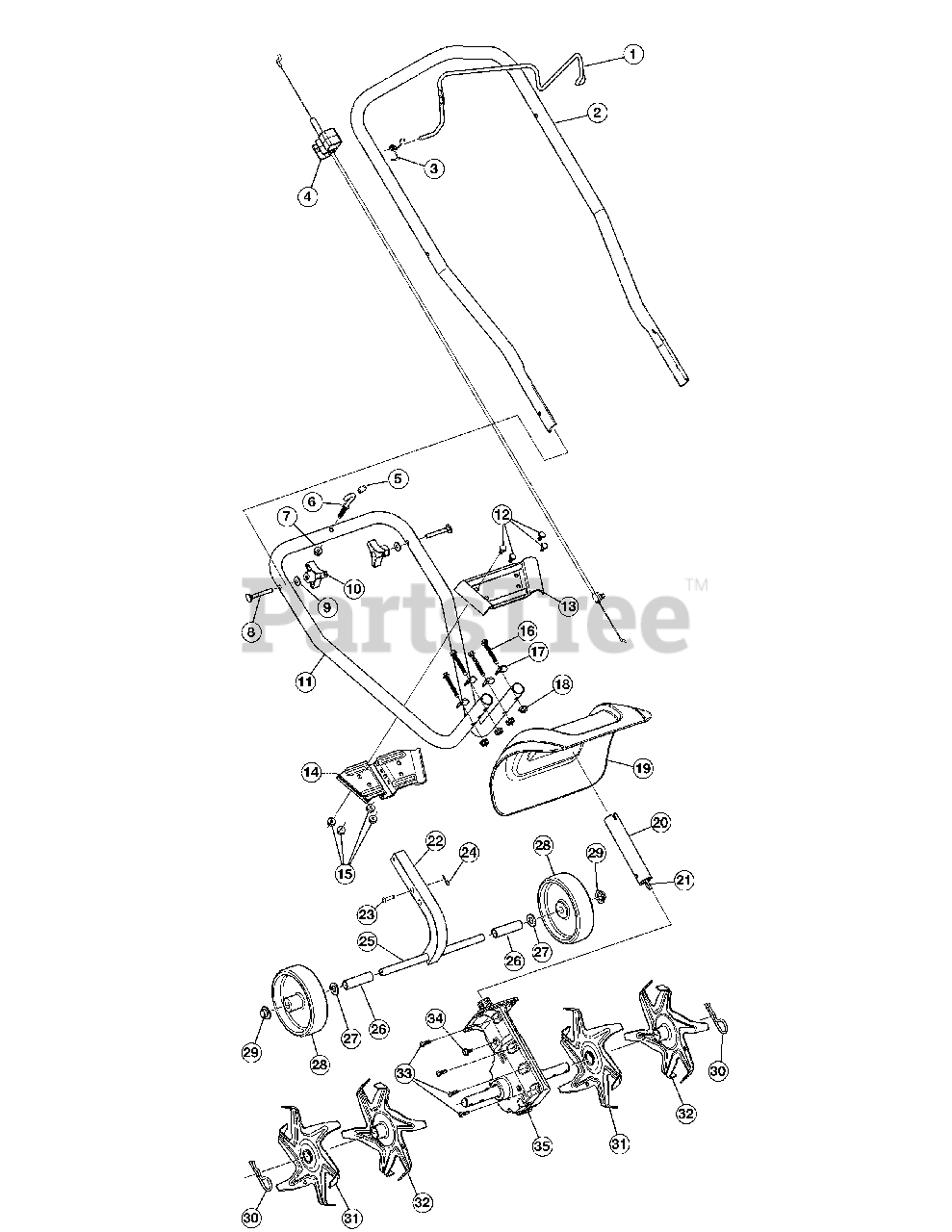

General Assembly Parts Diagram

  • Title

1

MTD 753-06808

Throttle

$7.99

$

Usually ships in 3-6 days

0

2

MTD 753-06319

Handle

$23.99

$

Usually ships in 3-6 days

0

3

MTD 753-05940

Spring

$3.99

$

In Stock, Qty 12

0

4

MTD 753-06831

Throttle Cable

$11.99

$

In Stock, only 3 left!

0

5

MTD 735-04246

Cap

$3.49

$

Usually ships in 3-6 days

0

6

MTD 10591

Rope Guide

$7.49

$

Usually ships in 3-6 days

0

7

MTD 712-04064

Nut

$3.99

$

In Stock, Qty 20+

0

8

MTD 791-182899

Bolt

$7.99

$

Usually ships in 3-6 days

0

9

MTD 936-0451

Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 20+

0

10

MTD 791-182677

Knob

$14.99

$

Usually ships in 3-6 days

0

11

MTD 753-06809

Handle

$24.99

$

Usually ships in 3-6 days

0

12

MTD 710-3013

Screw

$4.99

$

In Stock, only 1 left!

0

13

MTD 753-06813

Upper Bracket

$4.49

$

Usually ships in 3-6 days

0

14

MTD 753-06814

Lower Bracket

$4.99

$

Usually ships in 3-6 days

0

15

MTD 912-3027

Nut

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-1026

Bolt

$6.99

$

In Stock, Qty 20+

0

17

MTD 936-0451

Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 20+

0

18

MTD 912-3027

Nut

$4.49

$

In Stock, Qty 20+

0

19

MTD 753-06810

Shield

$18.99

$

Usually ships in 3-6 days

0

20

MTD 753-06812

Tube (Incl. 21)

$10.99

$

Usually ships in 3-6 days

0

21

MTD 753-04499

Flex Shaft

$29.99

$

In Stock, Qty 6

0

22

MTD 753-06817

Square Tube

$11.99

$

Usually ships in 3-6 days

0

23

MTD 714-04106

Clevis Pin

$3.49

$

Usually ships in 3-6 days

0

24

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

25

MTD 753-06816

Axle

$5.49

$

Usually ships in 3-6 days

0

26

MTD 753-06815

Spacer

$3.49

$

Usually ships in 3-6 days

0

27

MTD 791-182910

Washer

$7.99

$

Usually ships in 3-6 days

0

28

MTD 753-04437

Wheel (Incl. 29)

$22.99

$

Usually ships in 3-6 days

0

29

MTD 726-0299

Cap

$8.49

$

In Stock, Qty 20+

0

30

MTD 753-06811

Clip

$2.99

$

Usually ships in 3-6 days

0

31

MTD 753-05983

Tine (Left Inner, Right Outer)

$34.99

$

Usually ships in 3-6 days

0

32

MTD 753-05984

Tine (Left Outer, Right Inner)

$34.99

$

Usually ships in 3-6 days

0

33

MTD 791-182195

Screw

$7.49

$

In Stock, Qty 7

0

34

MTD 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

35

MTD 753-06063

Gearbox (Incl. 33)

$133.99

$

In Stock, Qty 5

0

MTD OL-216-OM

Oil, 2-Cycle 16 OZ.

Note: (Optional Accessory)

$10.99

$

In Stock, Qty 9

0

MTD 22216

32 oz. Sta-Bil fuel Additive
(Superseded to 22287)

Note: (Optional Accessory)

$

$

Not available
