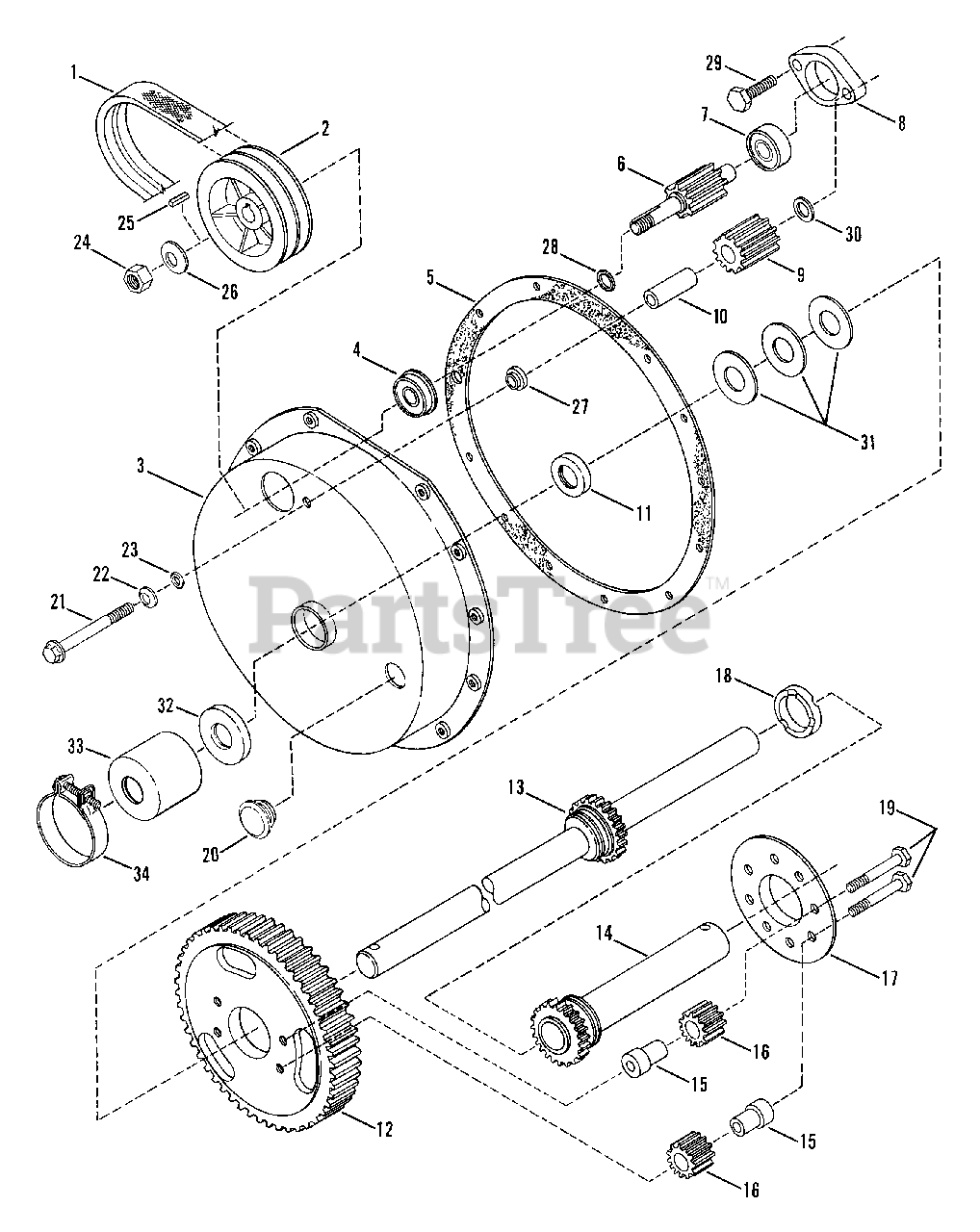

Y 30120 (88038) - Snapper 30" Walk-Behind Mower, 12hp Differential Parts Diagram

30" Walk-Behind Mower, 12hp

Differential Parts Diagram

  • Title

1

Snapper 7015754

BELT, Wheel Drive
(Superseded to 7015754YP)

$64.99

$

In Stock, only 1 left!

0

2

Snapper 7018879

PULLEY, Wheel Drive Belt
(Superseded to 7018879YP)

$136.99

$

Usually ships in 2-12 days

0

3

Snapper 7036186

COVER, Differential

$

$

Not available

4

Snapper 7015141

BEARING
(Superseded to 7015141YP)

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 7019786

GASKET, Differential Cover

$

$

Not available

6

Snapper 7015689

PINION GEAR & SHAFT
(Superseded to 7015689YP)

$51.99

$

Usually ships in 2-12 days

0

7

Snapper 7015696

BEARING
(Superseded to 7015696YP)

$10.99

$

Usually ships in 2-12 days

0

8

Snapper 7015690

HOLDER, Bearing

$

$

Not available

9

Snapper 7015687

GEAR, 11 Teeth, 10 Pitch
(Superseded to 7015687YP)

$17.99

$

Usually ships in 2-12 days

0

10

Snapper 7015688

SPACER

$

$

Not available

11

Snapper 7015769

SEAL, Differential

$

$

Not available

12

Snapper 7021158

GEAR, 63 Teeth, 10 Pitch
(Superseded to 7021158YP)

$109.99

$

In Stock, only 3 left!

0

13

Snapper 7075479

AXLE, Long
(Superseded to 7075479YP)

$136.99

$

Usually ships in 2-12 days

0

14

Snapper 7057398

AXLE, Short
(Superseded to 7600137YP)

$95.99

$

In Stock, Qty 13

0

15

Snapper 7022115

SPACER, Pinion
(Superseded to 7022115YP)

Note: Was 21126

$4.49

$

In Stock, only 2 left!

0

16

Snapper 7021127

PINION GEAR, Differential
(Superseded to 7021127YP)

$23.99

$

In Stock, Qty 12

0

17

Snapper 7038067

PLATE, Differential
(Superseded to 7038067YP)

$14.99

$

Usually ships in 2-12 days

0

18

Snapper 7074431

SPACER, Differential (1.25" ID x .425 Wide)
(Superseded to 7074431YP)

Note: Was 11026

$4.49

$

In Stock, Qty 11

0

19

Snapper 7012333

SCREW, 5/16-24 x 1-5/8" Hex Head Cap, Special Lock
(Superseded to 7012333YP)

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 7023036

PLUG, 3/4"
(Superseded to 7023036YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7090358

SCREW, 5/16-24 x 2-1/2" Hex Head Cap
(Superseded to 7090358YP)

$4.49

$

In Stock, only 1 left!

0

22

Snapper 7011782

WASHER, Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 19

0

23

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7090970

NUT, 7/16-20 Hex, Top-Lock
(Superseded to 7090970YP)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7015628

KEY, Square, 1/8 x 1/2" L.
(Superseded to 7015628YP)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7015672

WASHER, Belleville, 7/16"
(Superseded to 7015672YP)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7021990

SPACER

$

$

Not available

28

Snapper 7013906

O-RING, 15/32"

$

$

Currently unavailable

29

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

30

Snapper 7015686

WASHER, Shim, 5/16"
(Superseded to 7015686SM)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7015877

WASHER, Thrust

$

$

Not available

32

Snapper 7014662

SEAL, 3/4"
(Superseded to 7014662YP)

$9.49

$

In Stock, Qty 19

0

33

Snapper 7031732

CAP
(Superseded to 7031732YP)

$6.49

$

In Stock, Qty 20+

0

34

Snapper 7015943

CLAMP, 1-5/8"

$

$

Not available
