Y 30120 (88038) - Snapper 30" Walk-Behind Mower, 12hp Frame, Rear Parts Diagram

30" Walk-Behind Mower, 12hp

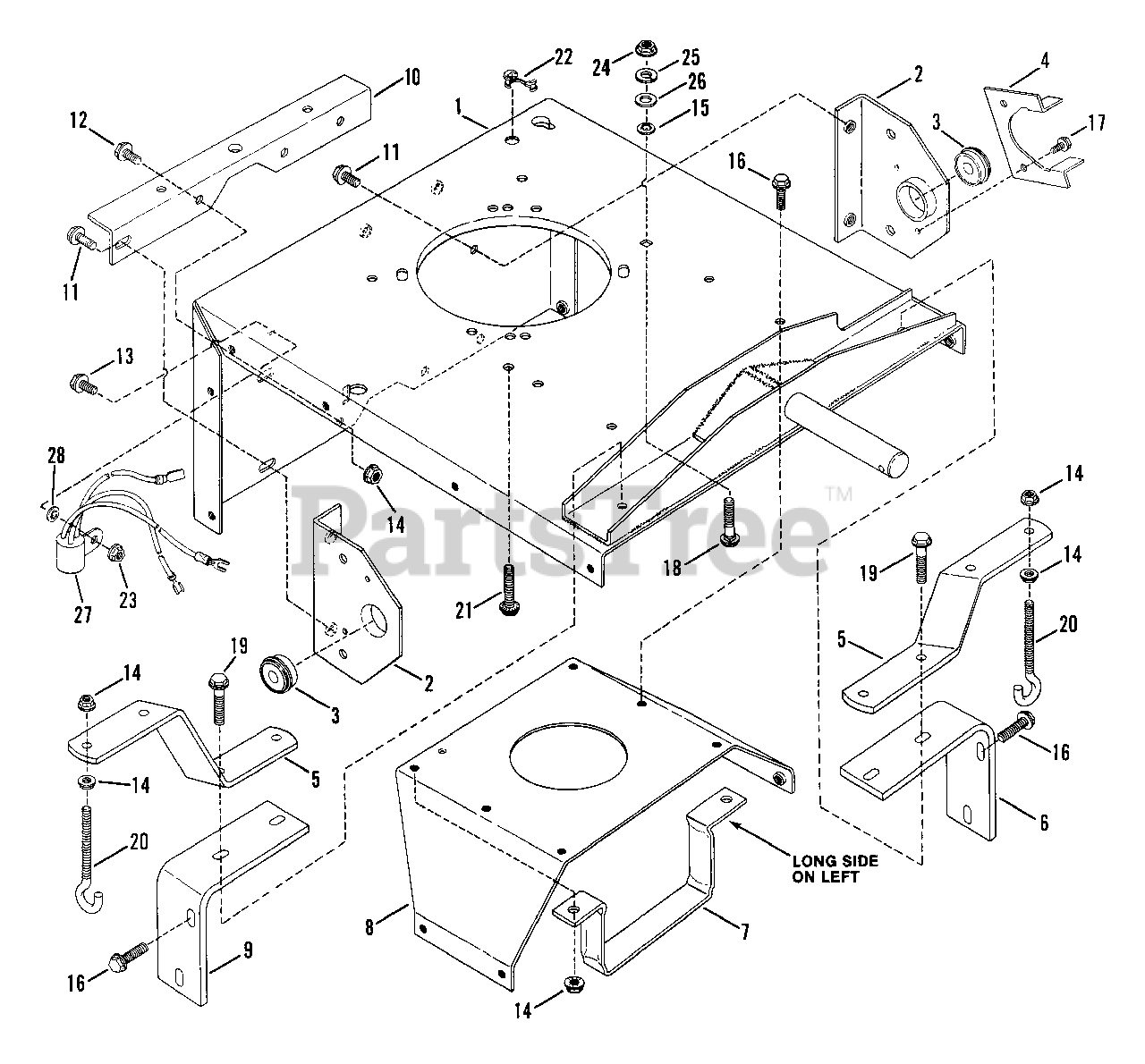

Frame, Rear Parts Diagram

  • Title

1

Snapper 7049977

FRAME, Rear

$

$

Currently unavailable

2

Snapper 7038263

BRACKET, Support
(Superseded to 7038263YP)

$10.99

$

Usually ships in 2-12 days

0

3

Snapper 7015141

BEARING
(Superseded to 7015141YP)

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 7032524

GUIDE, Belt

$

$

Not available

5

Snapper 7038261

SUPPORT, Deck

$

$

Currently unavailable

6

Snapper 7038281

STRAP, L. H.

$

$

Not available

7

Snapper 7038262

GUIDE, Belt

$

$

Currently unavailable

8

Snapper 7036188

SUPPORT, Deck

$

$

Currently unavailable

9

Snapper 7038280

STRAP, R. H.
(Superseded to 7038280YP)

$17.99

$

Usually ships in 2-12 days

0

10

Snapper 7036190

DRAW-BAR

$

$

Currently unavailable

11

Snapper 7090361

SCREW, 5/16-18 x 5/8" ST
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

12

Snapper 7090721

BOLT, 5/16-18 x 1/2" HFL
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

13

Snapper 7091122

SCREW, 1/4-20 x 1/2" HWHST
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

15

Snapper 7011791

RETAINER, Bolt, 5/16"
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7091541

SCREW, 5/16-18 x 3/4" ST
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7091084

SCREW, 1/4-20 x 3/8" ST
(Superseded to 703583)

Note: Was 90302

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7091303

BOLT, 5/16-18 x 1-1/2" SNC
(Superseded to 703800)

Note: Was 90958

$3.99

$

In Stock, Qty 16

0

19

Snapper 7091506

SCREW, 5/16-18 x 1-1/2 HWHST
(Superseded to 704318)

Note: Was 90484

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7012350

HOOK, Chain
(Superseded to 7012350YP)

$11.99

$

In Stock, only 3 left!

0

21

Snapper 7090700

BOLT, 5/16-18 x 1-1/2" HFL
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

22

Snapper 7014804

STRAIN RELIEF
(Superseded to 7014804YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7091584

NUT, 1/4-20 HFL
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, only 1 left!

0

24

Snapper 7090169

NUT, 5/16-18 Hex

$

$

Not available

25

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7090188

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7063064

INTERLOCK, B & S
(Superseded to 7063064YP)

Note: Was 12632

$81.99

$

In Stock, only 1 left!

0

28

Snapper 7012485

RETAINER, Bolt, 1/4"
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 12

0
