Y1-20OE02 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) ENGINE, FUEL & EXHAUST SYSTEMS-612-Z Parts Diagram

Zero-Turn Mower, Drive Unit Only

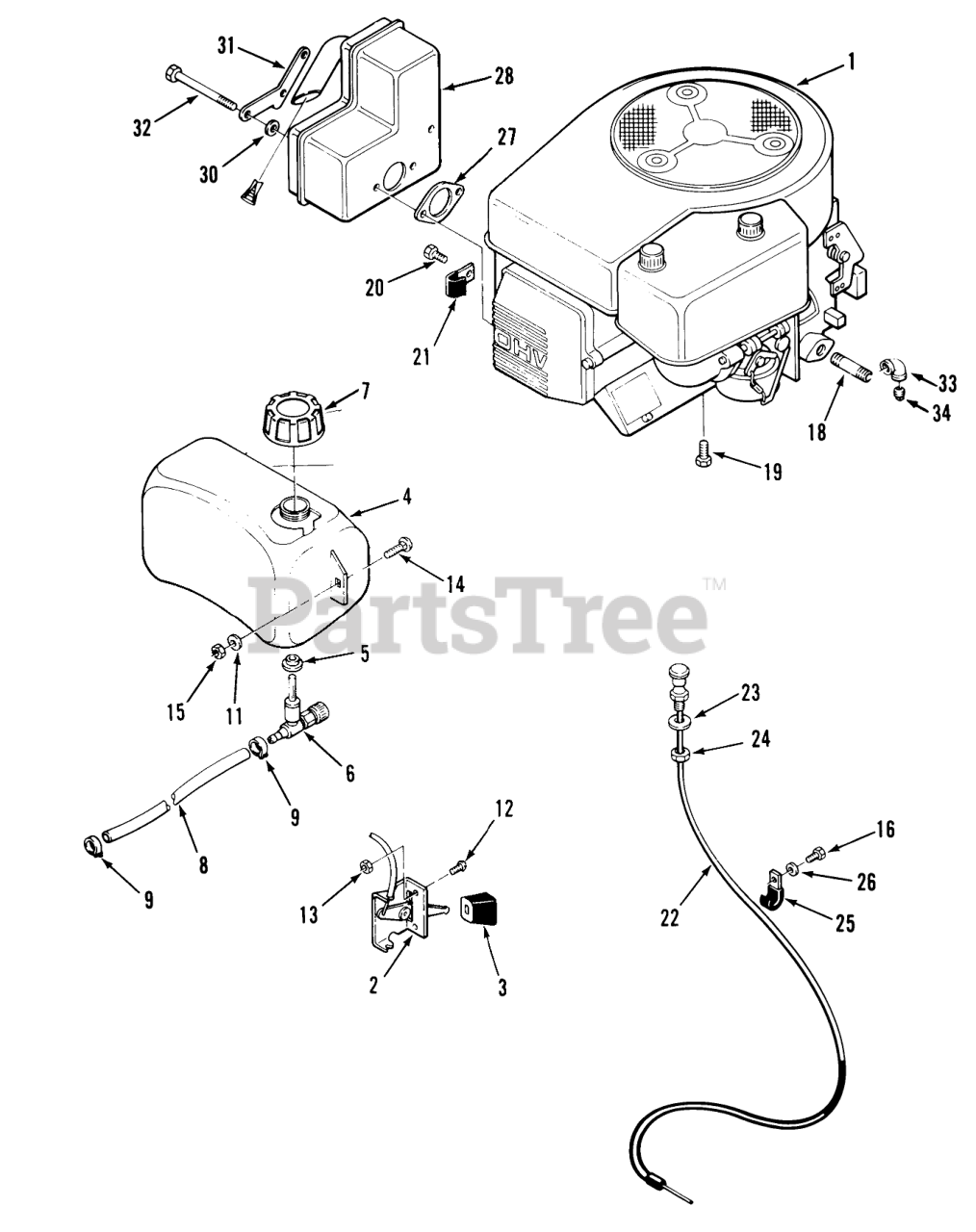

ENGINE, FUEL & EXHAUST SYSTEMS-612-Z Parts Diagram

  • Title

1

Toro 78-2750

Engine-12HP-Toro Power Plus Model E125V-N/11102B

$

$

Not available

2

Toro 78-7320

THROTTLE-CONTROL

$

$

Not available

3

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, Qty 10

0

4

Toro 116359

Fuel Tank
(Superseded to 116363)

$470.99

$

Usually ships in 3-6 days

0

5

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

6

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 7

0

7

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 19

0

8

Toro 119600

Fuel Line 25.5"
(Superseded to 100061)

$

$

Not available

9

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

11

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

12

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

13

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

14

Toro 906037

Carriage Bolt 5/16-18 x 3/4

$

$

Currently unavailable

15

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

16

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

18

Toro 119410

NIPPLE-PIPE (3.5 IN)

$

$

Not available

19

Toro 926696

Bolt
(Superseded to 9266964)

$7.99

$

Usually ships in 3-6 days

0

20

Toro 113114

HHCS M8X1.25X15

$

$

Not available

21

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

22

Toro 118270

CONTROL-CHOKE

$

$

Not available

23

Toro 920237

Washer
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

24

Toro 109530

NUT-HEX PALNUT

$0.99

$

In Stock, only 4 left!

0

25

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

26

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

27

Toro 117184

GASKET-EXHAUST

$31.99

$

Usually ships in 3-6 days

0

28

Toro NN10814

MUFFLER

$

$

Not available

30

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

31

Toro NN1081S

Bolt Retainer

$

$

Currently unavailable

32

Toro NN10702

HHCS-M8 X 100MM

$11.99

$

Usually ships in 3-6 days

0

33

Toro 943420

Plug
(Superseded to 281-2)

$2.49

$

Usually ships in 3-6 days

0

34

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0
