YM 26 SS (41AD26SC401) - Yard-Man String Trimmer Trimmer Parts Diagram

String Trimmer

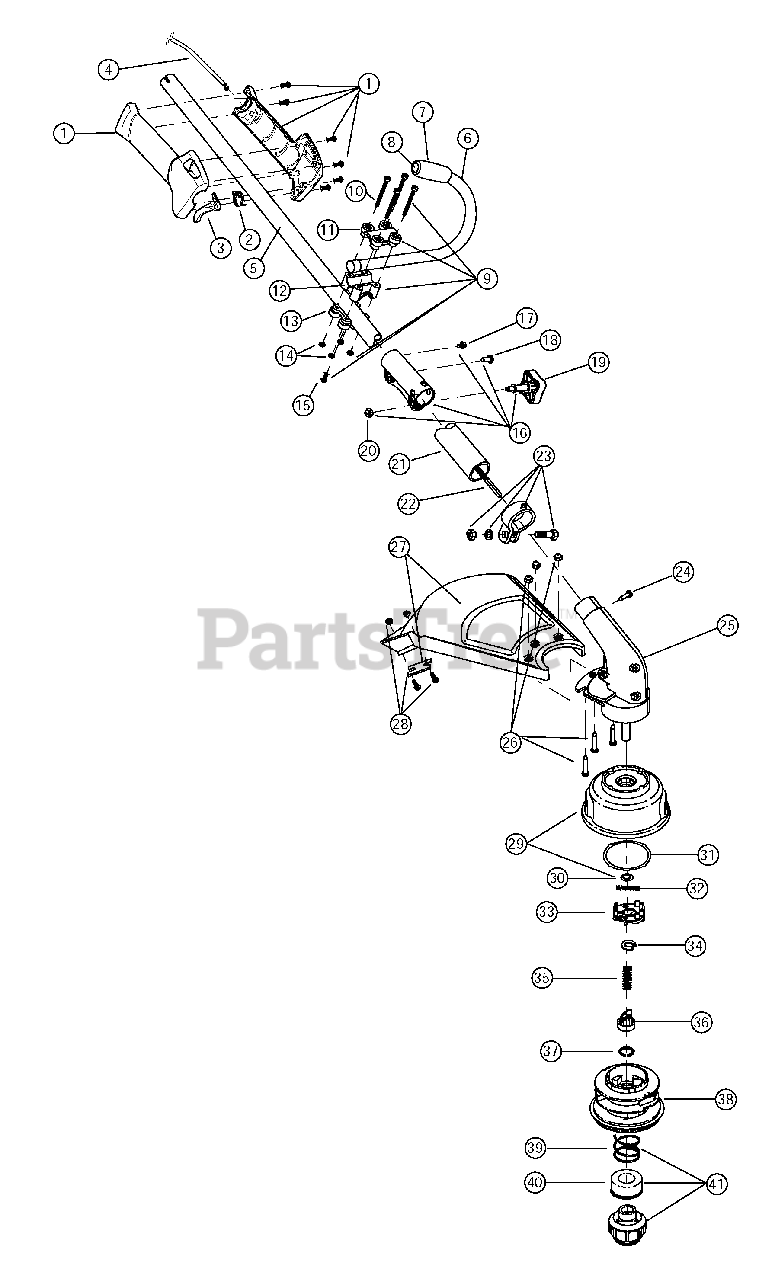

Trimmer Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-BQ01604

Throttle Trigger Spring

$

$

Not available

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-182357

Throttle Cable Assembly

$

$

Not available

5

MTD 753-1247

Upper Drive Shaft Housing Assembly
(Superseded to 753-04503)

$

$

Not available

6

MTD 791-180687

J-Handle Assembly

Note: (includes 7 & 8)

$41.99

$

Usually ships in 3-6 days

0

7

MTD 791-612831

Grip

$12.99

$

Usually ships in 3-6 days

0

8

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

9

MTD 791-683295

Handle Bracket Assembly

Note: (includes 10-15)

$45.99

$

Usually ships in 3-6 days

0

10

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

11

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

12

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

13

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

14

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

15

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 8

0

16

MTD 791-182928

EZ-Link Coupler

Note: (includes 17-20)

$

$

Not available

17

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

18

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

19

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

Note: (Includes 20)

$7.49

$

In Stock, only 1 left!

0

20

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

21

MTD 791-182388

Lower Drive Shaft Housing Assembly

Note: (Includes 22-24)

$

$

Not available

22

MTD 791-181166

Lower Flexible Drive Shaft

$28.99

$

In Stock, only 1 left!

0

23

MTD 791-153597

Lower Clamp Assembly

Note: (includes 24)

$

$

Not available

24

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 8

0

25

MTD 791-181470

Gearbox Assembly

$

$

Not available

26

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

27

MTD 791-180548

Shield and Blade Assembly

Note: (includes 28)

$

$

Not available

28

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

29

MTD 791-181457

Outer Spool and Eyelet Assembly

Note: (includes 30)

$39.99

$

In Stock, only 2 left!

0

30

MTD 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

31

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

32

MTD 791-181459

Small Spring

$4.49

$

In Stock, Qty 15

0

33

MTD 791-181461

Slider
(Superseded to 753-04257)

$7.49

$

In Stock, Qty 5

0

34

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 15

0

35

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

36

MTD 791-181462

Plunger

$

$

Not available

37

MTD 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

38

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

In Stock, Qty 6

0

39

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

40

MTD 791-181467

Foam Seal

$

$

Not available

41

MTD 791-181468

Bump Head Knob Assembly with Spring and Foam Seal
(Superseded to 791-181468B)

Note: (Includes 39 & 40)

$

$

Not available

MTD 791-181472

Replacement Line, 0.80 Diameter (Eight - 10 ft lengths)
(Superseded to 791-181460B)

Note: Optional Accessory; Not Shown

$32.99

$

In Stock, Qty 6

0

MTD 791-181460B

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$32.99

$

In Stock, Qty 6

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-181786

Ryobi 4-Cycle Oil
(Superseded to 737-05691)

Note: Optional Accessory; Not Shown

$2.99

$

In Stock, only 1 left!

0
