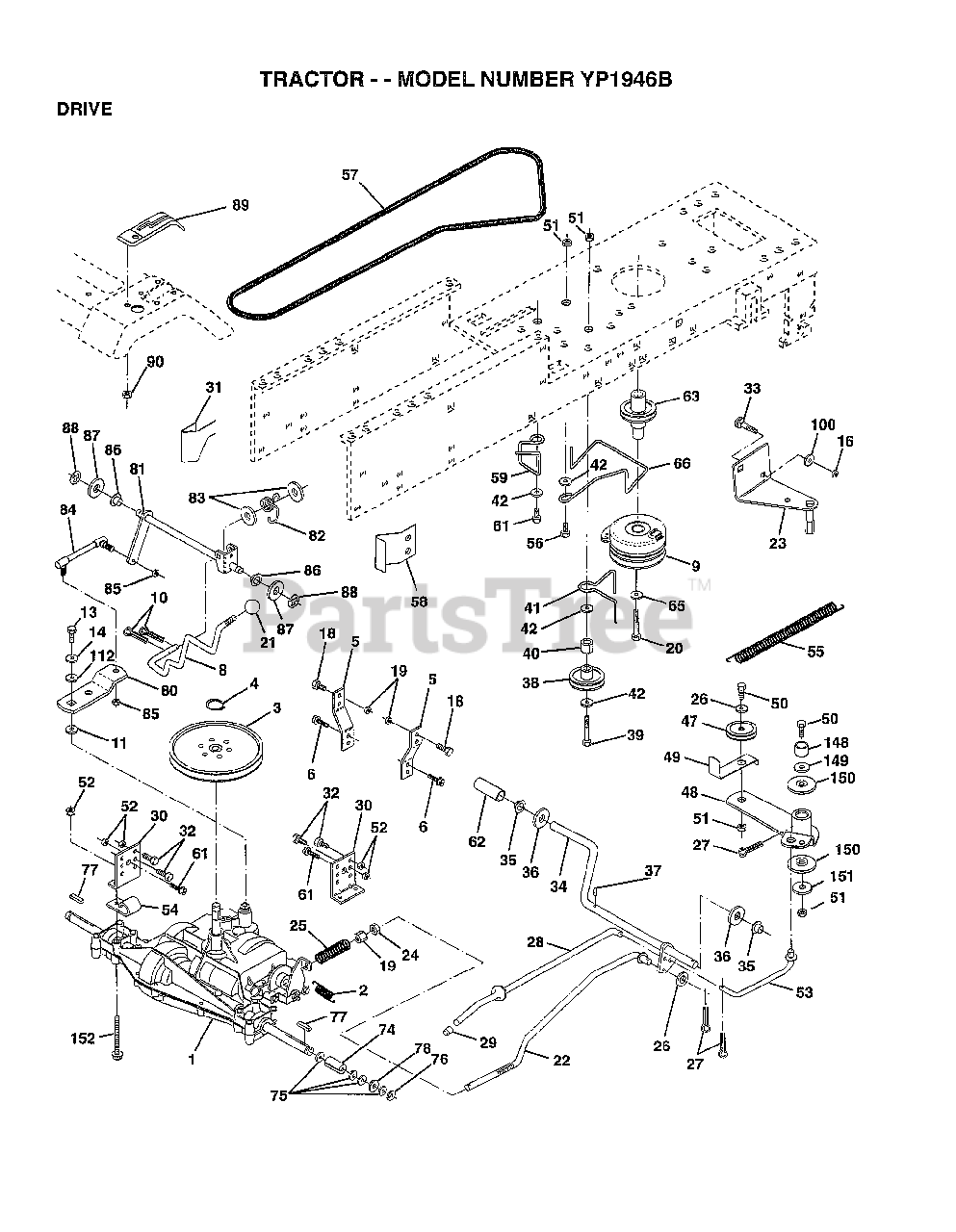

YP 1946 B - Electrolux/AYP Lawn Tractor (1998) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
1

Electrolux/AYP 161899

TRANSAXLE ASM
(Superseded to 170269)

$

$

Not available

2

Electrolux/AYP 146682

SPRING.BRAKE.RETU
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 123666X

PULLEY TRANS
(Superseded to 532123666)

$45.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

5

Electrolux/AYP 121520X

STRAP TORQUE
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

6

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 141002

ROD SHIFT FEND YT
(Superseded to 532141002)

$

$

Not available

9

Electrolux/AYP 160889

CLUTCH.ELECTRIC
(Superseded to 532160889)

$284.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74550412

BOLT.1/4-28.W/PAT
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 150280

BOLT.7/16-20X4.25
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 121274X

KNOB.DUCKHEAD.1/2
(Superseded to 532121274)

$10.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 130804

BRAKE ROD
(Superseded to 532130804)

$31.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 154978

BRACKET.CLUT.MTG.

$

$

Not available

24

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 145204

ROD.BRAKE.PARK.LT
(Superseded to 532145204)

$

$

Not available

29

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 130807

TRANSAXLE MTG BKT
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 127275X

"KEEPER,BELT LH T"
(Superseded to 532127275)

$

$

Not available

32

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 155071

SHAFT ASM-PEDAL F
(Superseded to 532155071)

$

$

Not available

35

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

SUB= 2882J

$

$

Not available

38

Electrolux/AYP 123674X

PULLEY.IDLER.FLAT
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 154777

SUB= 165692
(Superseded to 532165838)

$

$

Not available

42

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

47

Murray 127783

SUB= 139245

$

$

Not available

48

Electrolux/AYP 154407

BELLCRANK.CLUTCH
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

RETAIN BELT
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

55

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$11.99

$

In Stock, Qty 8

0

56

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 160855

"V-BELT,95.3"
(Superseded to 532138255)

$39.99

$

In Stock, only 2 left!

0

58

Electrolux/AYP 127274X

"KEEPER,BELT RH T"
(Superseded to 532127274)

$4.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 140312

KEEPER BELT CNTSP
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

62

Electrolux/AYP 123533X

"COVER,PEDAL"
(Superseded to 532123533)

$6.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 145868

PULLEY.CLUTCH.EVX
(Superseded to 532145868)

$100.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

KEEPER-BELT
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 109502X

SPACER LT
(Superseded to 532109502)

$

$

Not available

75

CHECK WITH SUPPLIER

$

$

Not available

76

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

78

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

80

Electrolux/AYP 161077

SHAFT ASSY CROSS

$

$

Not available

81

Electrolux/AYP 156044

SHAFT.CROS.20.STR
(Superseded to 161077)

$

$

Not available

82

Electrolux/AYP 123782X

"SPRING,TORSION"
(Superseded to 532123782)

$4.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 132183

TIE ROD
(Superseded to 532132183)

$60.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 150360

NUT.CNT.LOCK.1/4
(Superseded to 532150360)

$

$

Not available

86

Electrolux/AYP 71208

BUSHING
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 19212016

WASHER D
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 12000008

KLIP RING
(Superseded to 812000008)

$6.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 139991

CONSOLE SHIFT
(Superseded to 532139991)

$

$

Not available

90

Electrolux/AYP 124346X

NUT
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

100

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

149

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 3 left!

0

150

Electrolux/AYP 150935

BUSHING.NYLON
(Superseded to 532150935)

$

$

Not available

151

Electrolux/AYP 19133210

WASHER
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

152

Electrolux/AYP 74490544

BOLT.HX.FLG.5/16
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0
