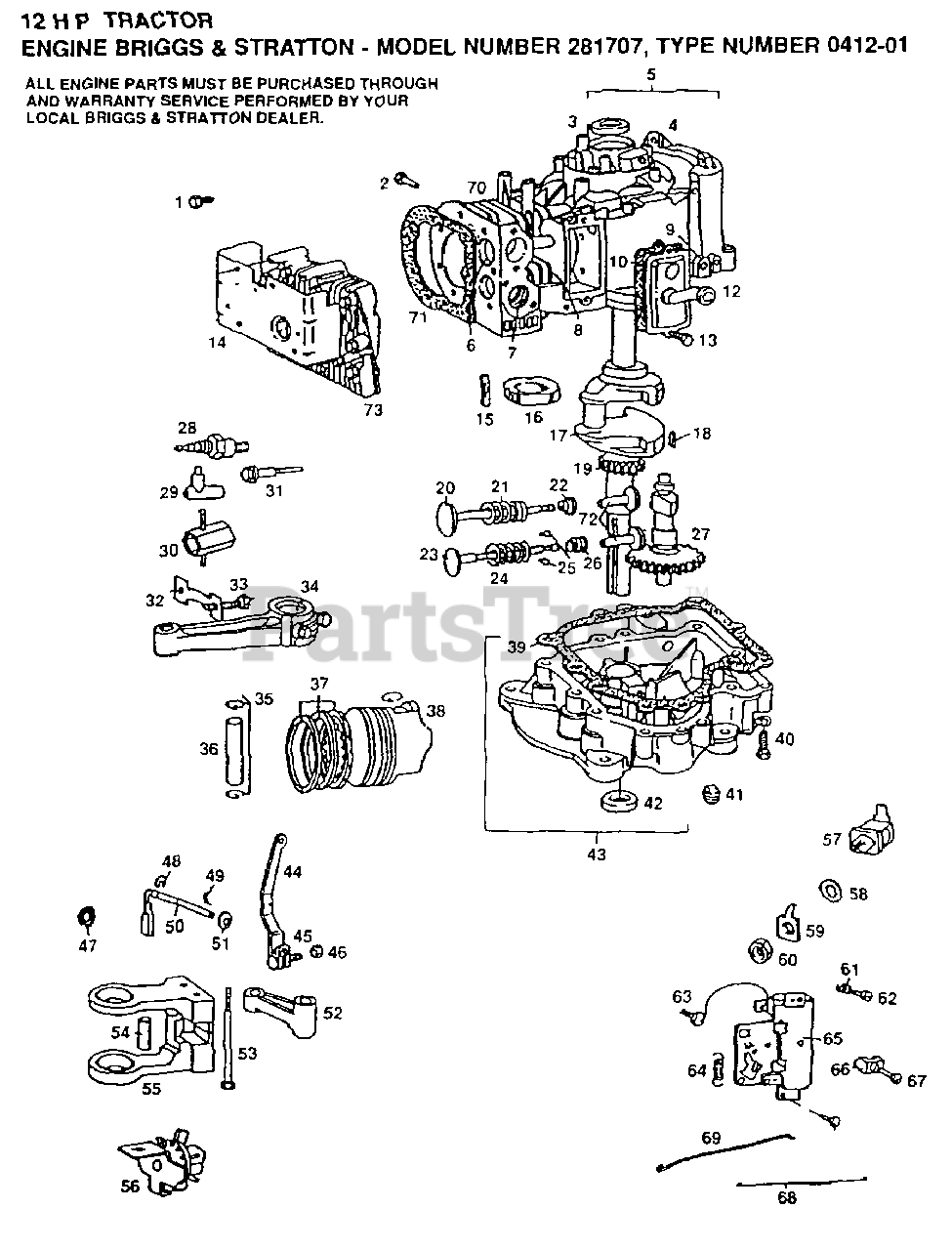

YP LT 120 DR - Electrolux/AYP Lawn Tractor ENGINE BRIGGS AND STRATTON Parts Diagram

Lawn Tractor

ENGINE BRIGGS AND STRATTON Parts Diagram

  • Title

2

Briggs & Stratton 93163

SCREW
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

3

Briggs & Stratton 399265

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 797673)

$18.99

$

In Stock, only 3 left!

0

4

Briggs & Stratton 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 490450

CYLINDER ASSEMBLY
(Superseded to 496413)

$344.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 261463

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 210940

SEAT]
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 261961

GUIDE, EXHAUST VALVE

$14.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 231597

BUSHING, GOVERNOR CRANK, 1/4" I.D.
(Superseded to 491986)

$

$

Not available

10

Briggs & Stratton 27803

GASKET, VALVE COVER
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 391406

BREATHER ASSEMBLY
(Superseded to 495735)

$63.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 280100

TUBE, BREATHER
(Superseded to 692253)

$9.99

$

In Stock, Qty 6

0

13

Briggs & Stratton 93394

SCREW, SEMS, BREATHER, MOUNTING
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

14

Briggs & Stratton 491490

COVER, CYLINDER HEAD
(Superseded to 698476)

$49.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94160

PIN, ECCENTRIC
(Superseded to 691679)

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 262243

ECCENTRIC

$36.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 490466

CRANKSHAFT
(Superseded to 693653)

$246.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 262135

GEAR, TIMING
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 262247

VALVE, INTAKE
(Superseded to 262247S)

$30.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 65906

SPRING, INTAKE VALVE
(Superseded to 691605)

$6.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 221596

RETAINER, INTAKE VALVE
(Superseded to 690656)

$

$

Not available

23

Briggs & Stratton 262246

VALVE, EXHAUST
(Superseded to 262246S)

$27.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 26828

SPRING, EXHAUST VALVE
(Superseded to 691597)

$10.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 93630

RETAINER, EXHAUST VALVE ROTOCOIL(2)
(Superseded to 494553)

$7.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 292260

RETAINER, EXHAUST VALVE
(Superseded to 691939)

$27.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 212897

GEAR, CAM
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 293918

PLUG, SPARK RESISTOR
(Superseded to 796112S)

$4.49

$

In Stock, Qty 16

0

29

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 14

0

30

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

31

Briggs & Stratton 93723

SCREW, CYLINDER HEAD 3"
(Superseded to 690904)

$11.99

$

In Stock, Qty 6

0

32

Briggs & Stratton 222299

LOCK, CONNECTING ROD SCREW

$

$

Not available

33

Briggs & Stratton 92909

SCREW, CONNECTING ROD
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 490348

ROD ASSEMBLY, CONNECTING

$50.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 260924

LOCK, PISTON PIN
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 299691

PIN ASSEMBLY, PISTON, STANDARD

$17.99

$

In Stock, only 1 left!

0

36A

Briggs & Stratton 391286

PIN ASSEMBLY, PISTON .005" OVER

$14.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 394665

RING SET
(Superseded to 499996)

$53.99

$

In Stock, only 2 left!

0

37A

Briggs & Stratton 391781

RING SET, PISTON .010" OVERSIZE

$

$

Not available

37B

Briggs & Stratton 391782

RING SET, PISTON .020" OVERSIZE
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

37C

Briggs & Stratton 391783

RING SET, PISTON .030" OVERSIZE

$

$

Not available

38

Briggs & Stratton 394661

PISTON ASSEMBLY, STANDARD
(Superseded to 499284)

$

$

Not available

38A

Briggs & Stratton 394662

PISTON ASSEMBLY .010" OVERSIZE

$

$

Not available

38B

Briggs & Stratton 394663

PISTON ASSEMBLY .020" OVERSIZE
(Superseded to 499292)

$

$

Not available

38C

Briggs & Stratton 394664

PISTON ASSEMBLY .030" OVERSIZE
(Superseded to 499296)

$86.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 392331

RING SET, PISTON, STANDARD SIZE

$37.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 271916

GASKET, CRANKCASE COVER 1/64"
(Superseded to 692226)

$6.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 94305

SCREW, SEMS, BASE MOUNTING
(Superseded to 692125)

$4.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 91084

PLUG OIL DRAIN
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

42

Briggs & Stratton 291675

SEAL, OIL
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 490452

BASE
(Superseded to 494238)

$

$

Not available

44

Briggs & Stratton 490927

LEVER ASSY, GOVERNOR

$16.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 92613

BOLT, GOVERNOR LEVER

$

$

Not available

46

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

47

Briggs & Stratton 491323

SEAL, GOVERNOR
(Superseded to 692407)

$7.99

$

In Stock, Qty 11

0

48

Briggs & Stratton 93307

RETAINER, E-RING

$5.99

$

In Stock, only 4 left!

0

49

Briggs & Stratton 93306

COTTER, HAIR PIN
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

50

Briggs & Stratton 231058

CRANK, GOVERNOR
(Superseded to 692012)

$13.99

$

In Stock, only 4 left!

0

51

Briggs & Stratton 222450

WASHER, GOVERNOR LEVER
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

52

Briggs & Stratton 212359

LINK, COUNTERWEIGHT
(Superseded to 691714)

$26.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 93875

SCREW, COUTENWEIGHT
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 4 left!

0

55

Briggs & Stratton 399891

COUNTERWEIGHT ASSY
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 490815

GOVERNOR GEAR
(Superseded to 691968)

$37.99

$

In Stock, Qty 7

0

57

Briggs & Stratton 398525

INSULATOR ASSEMBLY
(Superseded to 691972)

$8.49

$

In Stock, Qty 6

0

58

Briggs & Stratton 92791

WASHERLOCK
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 93722

TERMINAL, SPADE
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 90576

NUT, HEX
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

61

Briggs & Stratton 26157

SPRING, THROTTLE ADJUSTMENT
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 90200

SCREW

$3.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 93572

SCREW
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

64

Briggs & Stratton 260695

SPRING, GOVERNOR
(Superseded to 796260)

$4.99

$

In Stock, Qty 6

0

65

Briggs & Stratton 390784

PLATE
(Superseded to 491594)

$

$

Not available

66

Briggs & Stratton 221535

CLAMP
(Superseded to 691024)

$3.99

$

In Stock, only 1 left!

0

67

Briggs & Stratton 93496

SCREW, SEMS
(Superseded to 690804)

$

$

Not available

68

Briggs & Stratton 260584

SPRING, GOVERNOR LINK
(Superseded to 692207)

$6.99

$

In Stock, Qty 15

0

69

Briggs & Stratton 262348

LINK, GOVERNOR

$9.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 223715

SHIELD
(Superseded to 698477)

$19.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 271866

GASKET, CYLINDER HEAD
(Superseded to 271866S)

$9.49

$

In Stock, Qty 18

0

72

Briggs & Stratton 262248

TAPPET-VALVE
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 491491

HEAD, CYLINDER
(Superseded to 494240)

$110.99

$

Usually ships in 2-12 days

0
