YP LT 120 DR - Electrolux/AYP Lawn Tractor ENGINE BRIGGS AND STRATTON Parts Diagram

Lawn Tractor

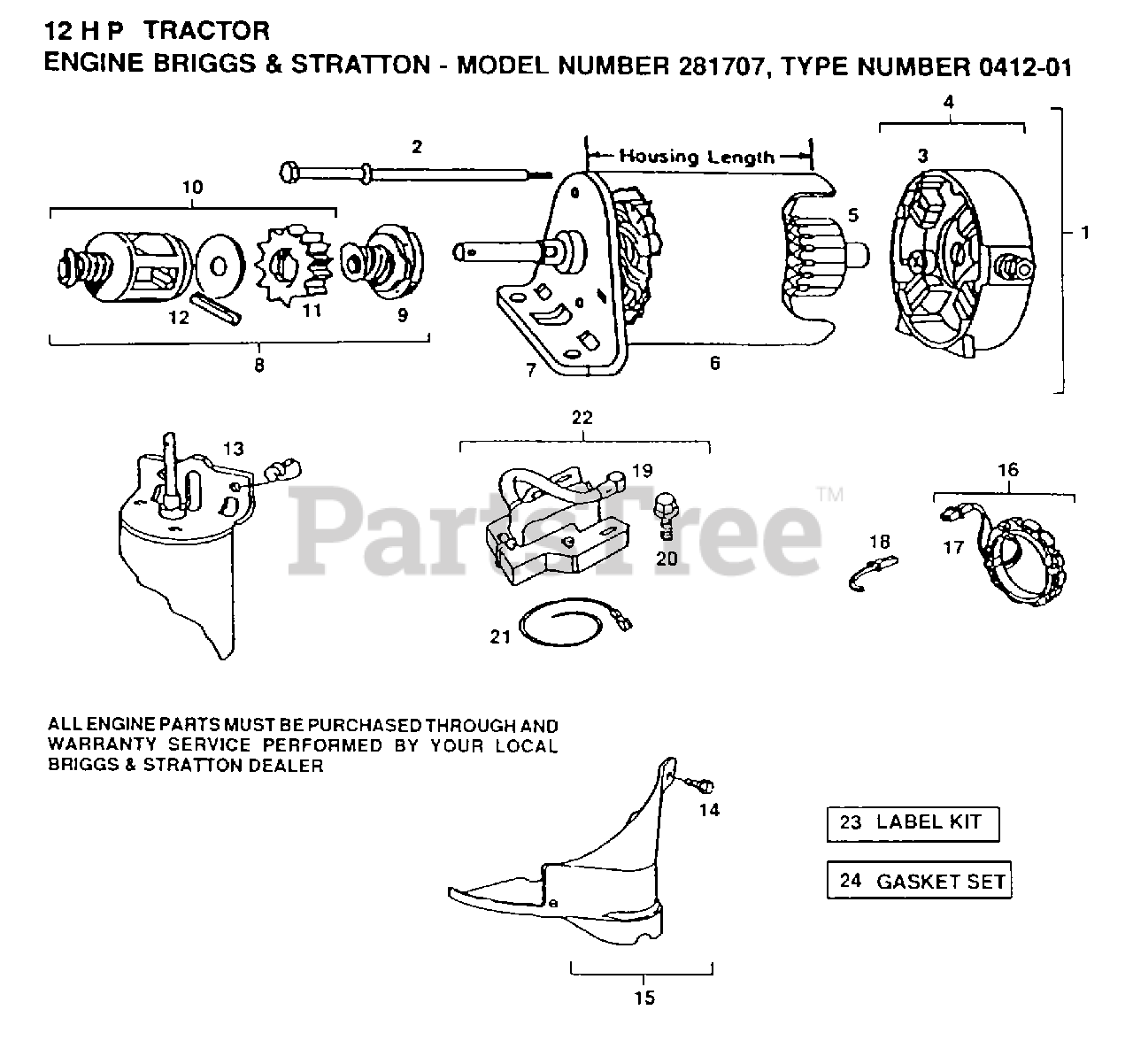

ENGINE BRIGGS AND STRATTON Parts Diagram

  • Title

2

Briggs & Stratton 94003

BOLT
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

3

Briggs & Stratton 395538

BRUSH ASSEMBLY

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 395537

END CAP ASS'Y. COMMUTATOR

$54.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 390837

ARRMATURE ASSEMBLY

$159.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 393825

HOUSING ASSEMBLY
(Superseded to 398159)

$80.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 394857

DRIVE END CAP ASSY

$56.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 490421

STARTER DRIVE GROUP
(Superseded to 696540)

$29.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 398003

CLUTCH ASSEMBLY
(Superseded to 692024)

$21.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 490467

PINION SPRING KIT
(Superseded to 696540)

$29.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 280104

GEAR, STARTER
(Superseded to 695708)

$6.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 94288

ROLL PIN
(Superseded to 691641)

$4.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 93535

SCREW, HEX HEAD
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

14

Briggs & Stratton 93984

SCREW, SEMS
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 490324

COVER, STARTER

$26.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 393474

STATOR, ALTERNATOR, DUAL CIRCUIT
(Superseded to 592831)

$101.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 393456

DIODE & CONNECTOR ASSY

$20.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 393362

HARNESS, ALTERNATOR
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 221798

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 93381

SCREW, SEM, ARMATURE MOUNTING
(Superseded to 691061)

$3.49

$

In Stock, Qty 17

0

21

Briggs & Stratton 398808

WIRE, GROUND

$11.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 492341

ARMATURE, MAGNETO
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

23

Briggs & Stratton 491252

LABEL KIT

$35.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 490525

GASKET SET
(Superseded to 494241)

$39.99

$

In Stock, only 1 left!

0
