YT 16542 - Husqvarna 42" Yard Tractor (2007-02) ENGINE Parts Diagram

42" Yard Tractor

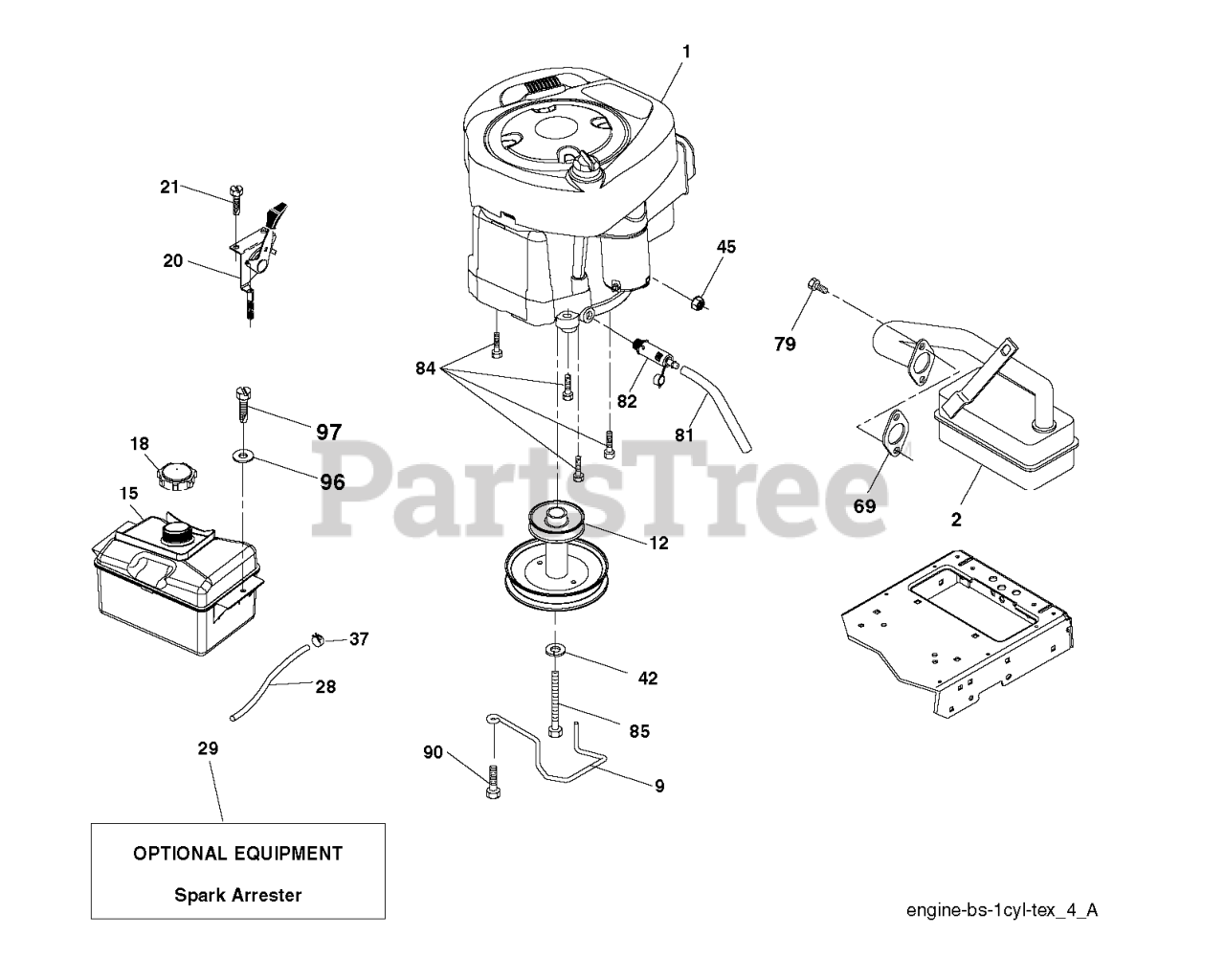

ENGINE Parts Diagram

  • Title

15

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, Qty 7

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

Note: OPTIONAL

$182.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 18

0

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

1

NEEDS DESCRIPTION

Note: "Engine B&S Model No. 31A707 - B&S 1-800-233-3723, Kohler Co. 1-800-544-2444, Tecumseh Products 1-800-558-5402, Honda Engines 1-800-426-7701, Kawasaki 1-949-460-5688"

$

$

Not available

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532401985

PULLEY ENGINE
(Superseded to 586729001)

$40.99

$

In Stock, Qty 8

0

96

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$34.99

$

In Stock, Qty 7

0

18

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 6

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$44.99

$

In Stock, only 4 left!

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$12.99

$

In Stock, only 2 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available
