YT 2344 (2690754) - Snapper YT400 Series 44" Yard Tractor, 23hp 44" Mower Deck - Height Adjustment Parts Diagram

YT400 Series 44" Yard Tractor, 23hp

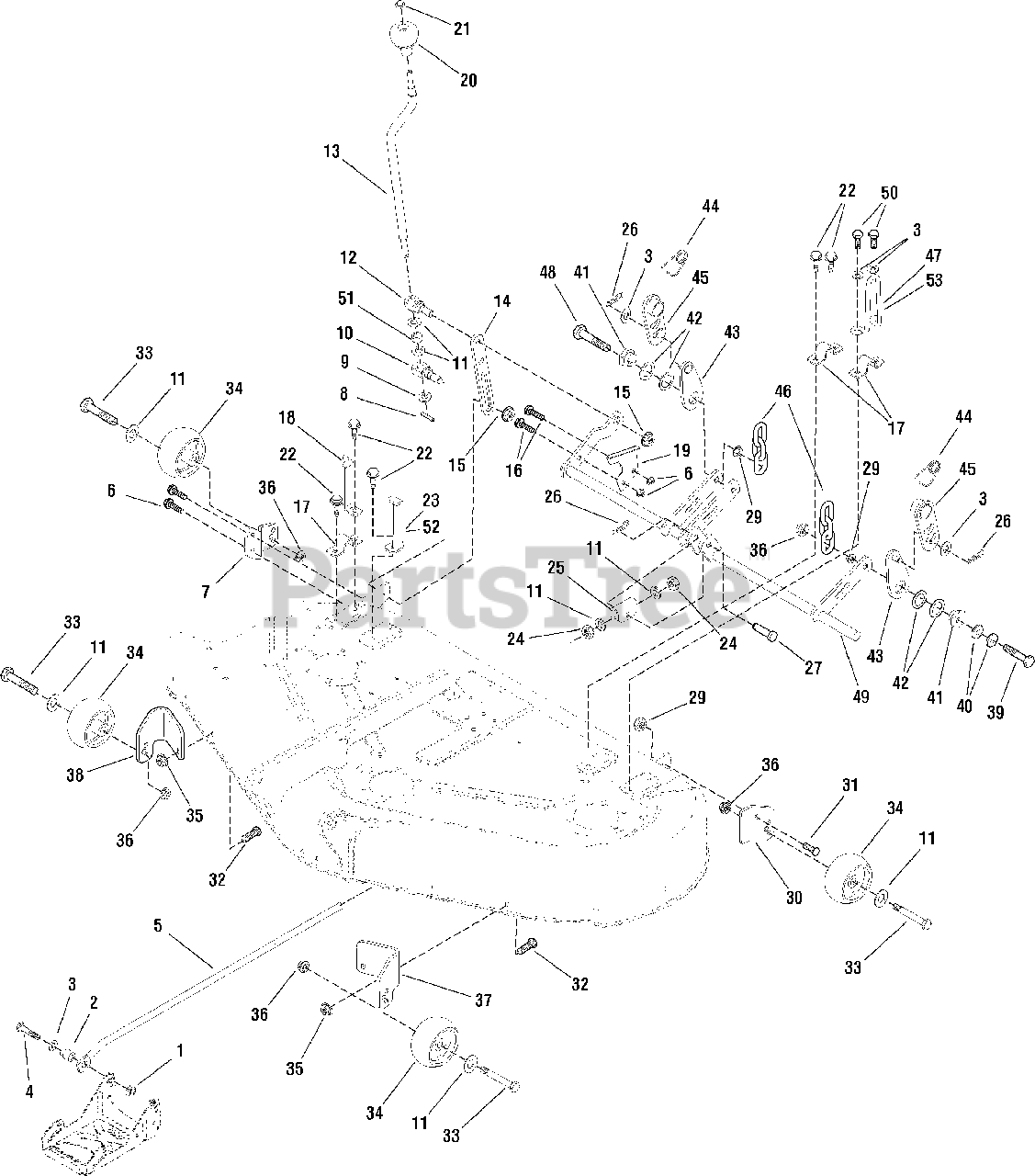

44" Mower Deck - Height Adjustment Parts Diagram

  • Title
1

Snapper 2860681

NUT, Locknut, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 11

0

2

Snapper 1706644

SPACER, 3/8 x 3/4 x 15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 3 left!

0

3

Snapper 1924940

WASHER. 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 1922606

CAPSCREW, Hex 3/8-16 x 1 3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

5

Snapper 1704093

ROD, Adjustment
(Superseded to 1704093SM)

$47.99

$

Usually ships in 2-12 days

0

6

Snapper 1927187

SCREW, Hex Tapit 3/8-16 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

7

Snapper 1734771A

SUPPORT, Wheel
(Superseded to 1734771AYP)

$19.99

$

Usually ships in 2-12 days

0

8

Snapper 2816001

PIN, Roll
(Superseded to 2816001SM)

$4.49

$

In Stock, Qty 11

0

9

Snapper 1704097

WASHER, Detent
(Superseded to 1704097SM)

$4.49

$

In Stock, Qty 11

0

10

Snapper 1733257

TRUNNION
(Superseded to 1733257SM)

$28.99

$

Usually ships in 2-12 days

0

11

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

12

Snapper 1733258

TRUNNION, Threaded
(Superseded to 1733258SM)

$

$

Not available

13

Snapper 1719901

CRANK, Height of Cut
(Superseded to 1719901SM)

$48.99

$

In Stock, only 1 left!

0

14

Snapper 1727143A

STOP, Height
(Superseded to 1727143ASM)

$12.99

$

Usually ships in 2-12 days

0

15

Snapper 1930644

NUT, Hex Flange Lock 1/2-13
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

16

Snapper 1930591

SCREW, Hex Whizlock,Flange 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

17

Snapper 1665374

STRAP, Rocker Shaft
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

18

Snapper 1720643A

INDICATOR, Height of Cut
(Superseded to 1720643ASM)

$19.99

$

In Stock, only 2 left!

0

19

Snapper 1704116A

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

20

Snapper 1714084

KNOB
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

21

Snapper 1960093

NUT, PUSH PAL
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 1664847

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1722748A

BRACKET, Upstop
(Superseded to 1722748ASM)

$19.99

$

Usually ships in 2-12 days

0

24

Snapper 1913744

NUT, Hex Jam, 1/2-13
(Superseded to 1913744SM)

$4.99

$

In Stock, Qty 20+

0

25

Snapper 1704081A

TRUNNION
(Superseded to 1704081ASM)

$7.99

$

Usually ships in 2-12 days

0

26

Snapper 1960074

CLIP, Hairpin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 2118053

PIN, Clevis
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

29

Snapper 1931211

NUT, Flange Whiz, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

30

Snapper 1727135A

SUPPORT, Gauge Wheel
(Superseded to 1727135ASM)

$9.49

$

Usually ships in 2-12 days

0

31

Snapper 1931350

BOLT, Carriage, 3/8- 16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

32

Snapper 1931334

BOLT, Carriage, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

33

Snapper 2108765

BOLT, Wheel, 3/8-16 x 2.781
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

34

Snapper 1714760

WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

35

Snapper 1927557

NUT, Hex Whiz Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

36

Snapper 1960687

NUT, Hex Nylock, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 1719852A

BRACKET, Wheel Gauge
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 1 left!

0

38

Snapper 1719853A

BRACKET, Gauge Wheel
(Superseded to 1719853ASM)

$29.99

$

In Stock, only 1 left!

0

40

Snapper 1922755

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

39

Snapper 1922130

CAPSCREW, 3/8-16 x 2 1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

41

Snapper 1704082

NUT, Adjuster
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 17

0

42

Snapper 2860208

WASHER
(Superseded to 2860208SM)

$4.99

$

Usually ships in 2-12 days

0

43

Snapper 1727356A

HANGER
(Superseded to 1727356ASM)

$21.99

$

Usually ships in 2-12 days

0

44

Snapper 2176012

PIN, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

45

Snapper 1727361A

HANGER ASSEM, Upper
(Superseded to 1727361ASM)

$40.99

$

Usually ships in 2-12 days

0

46

Snapper 1707514A

CHAIN, 3 Link
(Superseded to 1707514ASM)

$14.99

$

In Stock, only 1 left!

0

47

Snapper 1722747

UPSTOP, Wire 6-1/4
(Superseded to 1722747SM)

$21.99

$

Usually ships in 2-12 days

0

48

Snapper 1913709

CAPSCREW, 3/8-16 x 3
(Superseded to 1913709SM)

$4.99

$

Usually ships in 2-12 days

0

49

Snapper 1727138A

ARM ASSEM, Mower 44"
(Superseded to 1727138ASM)

$139.99

$

Usually ships in 2-12 days

0

50

Snapper 1931202

SCREW, Taptite, 5/16-18 x 1 1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 7

0

51

Snapper 1716953

SPACER
(Superseded to 1716953SM)

$13.99

$

In Stock, only 2 left!

0

52

Snapper 1722750A

BRACKET, Upstop
(Superseded to 1722750ASM)

$25.99

$

Usually ships in 2-12 days

0

53

Snapper 1720659

UPSTOP,Wire 5-1/4
(Superseded to 1720659SM)

$12.99

$

Usually ships in 2-12 days

0
