YT 2452 (2691250-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Engine Group - 24HP Briggs & Stratton, Twin Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

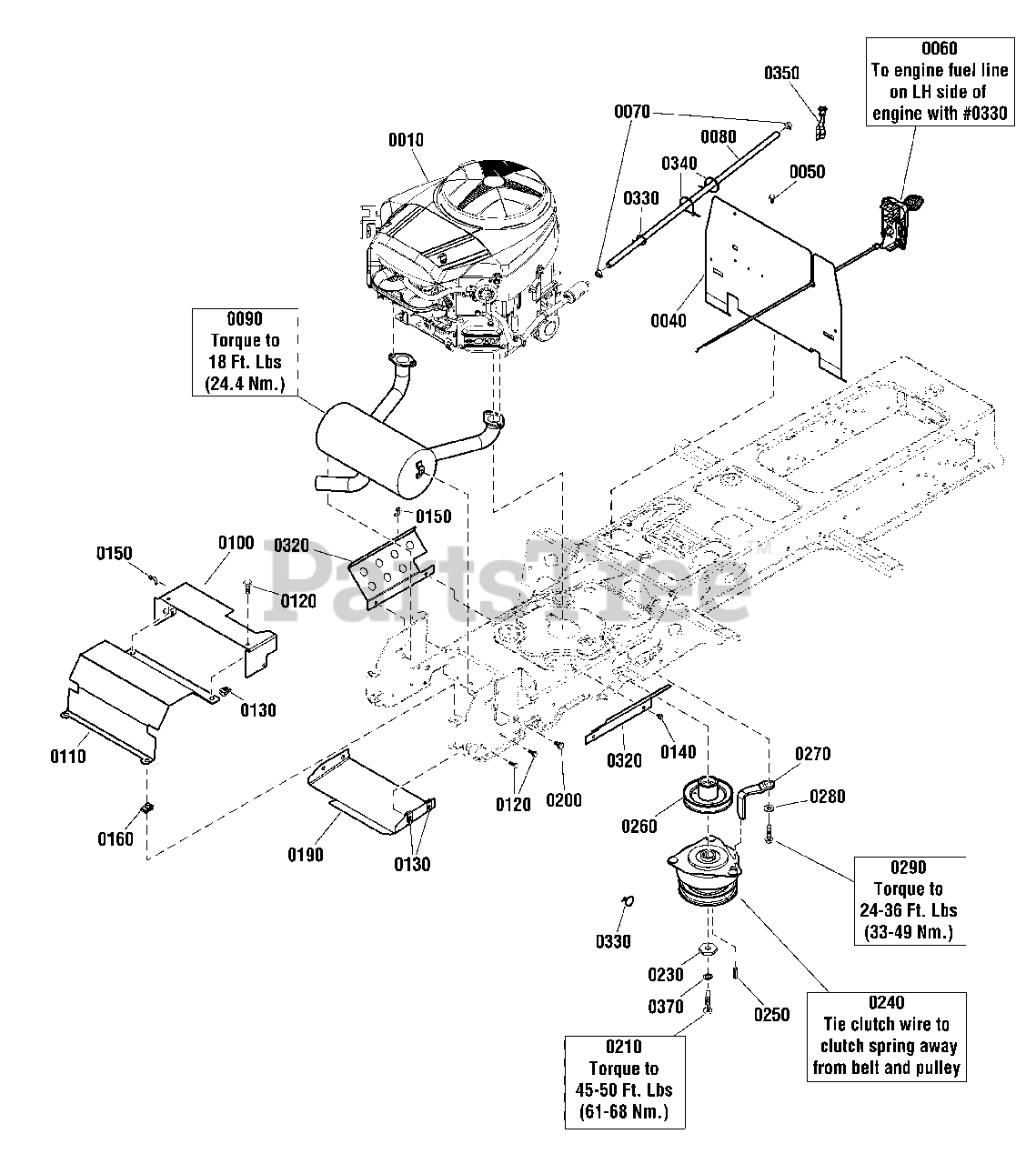

Engine Group - 24HP Briggs & Stratton, Twin Parts Diagram

  • Title

0010

Snapper 44S677-0022-B1

* ENGINE, 24 GHP Briggs & Stratton, Mod. 44S677-0022-B1

$

$

Currently unavailable

0040

Snapper 1755854AYP

FIREWALL, Engine

$92.99

$

Usually ships in 2-12 days

0

0060

Snapper 1754915YP

THROTTLE

$59.99

$

In Stock, only 1 left!

0

0050

Snapper 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0070

Snapper 93053B

CLAMP, Hose

$

$

Not available

0080

Snapper 199086X46YP

HOSE, Fuel

$16.99

$

In Stock, only 1 left!

0

0090

Snapper 1721706SM

MUFFLER, Briggs & Stratton, INTEK Twin

$231.99

$

Usually ships in 2-12 days

0

0100

Snapper 1722390ASM

DUCT, Muffler Extension

$12.99

$

Usually ships in 2-12 days

0

0110

Snapper 1722389ASM

DUCT, Muffler, Top

$80.99

$

Usually ships in 2-12 days

0

0120

Snapper 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0130

Snapper 1960368SM

NUT, Speed Lug Type, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

0140

Snapper 1927428SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

0150

Snapper 703176

CLIP, Wire

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, Qty 6

0

0190

Snapper 1722414ASM

SHIELD, Muffler Bottom

$20.99

$

Usually ships in 2-12 days

0

0200

Snapper 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 14

0

0210

Snapper 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

$6.99

$

Usually ships in 2-12 days

0

0230

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 7

0

0240

Snapper 1736105SM

CLUTCH, Ogura

$387.99

$

Usually ships in 2-12 days

0

0250

Snapper 5050407X8SM

KEY, 1/4 Square x 1

Note: (Not used this model)

$3.99

$

Usually ships in 2-12 days

0

0260

Snapper 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 1 left!

0

0270

Snapper 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, only 1 left!

0

0280

Snapper 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0290

Snapper 704010

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2 (For 1692768)

$4.99

$

In Stock, only 2 left!

0

0320

Snapper 1722392ASM

SHIELD, Side, Heat

$10.99

$

Usually ships in 2-12 days

0

0330

Snapper 2832747SM

TIE, Self Locking, 3-5/8 LG

$3.99

$

Usually ships in 2-12 days

0

0340

Snapper 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 1737462YP

HARNESS, Jumper, 4" LG

$9.99

$

In Stock, only 1 left!

0

0370

Snapper 1960769YP

WASHER, Belleville

$4.99

$

Usually ships in 2-12 days

0

--

Snapper 690341

SCREW

Note: (Not Shown)

$5.99

$

In Stock, only 2 left!

0

--

Snapper 799117

Gasket Set-Engine

Note: (Not Shown)

$129.99

$

Usually ships in 2-12 days

0
