YT 2452 (2691250-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Seat Deck Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

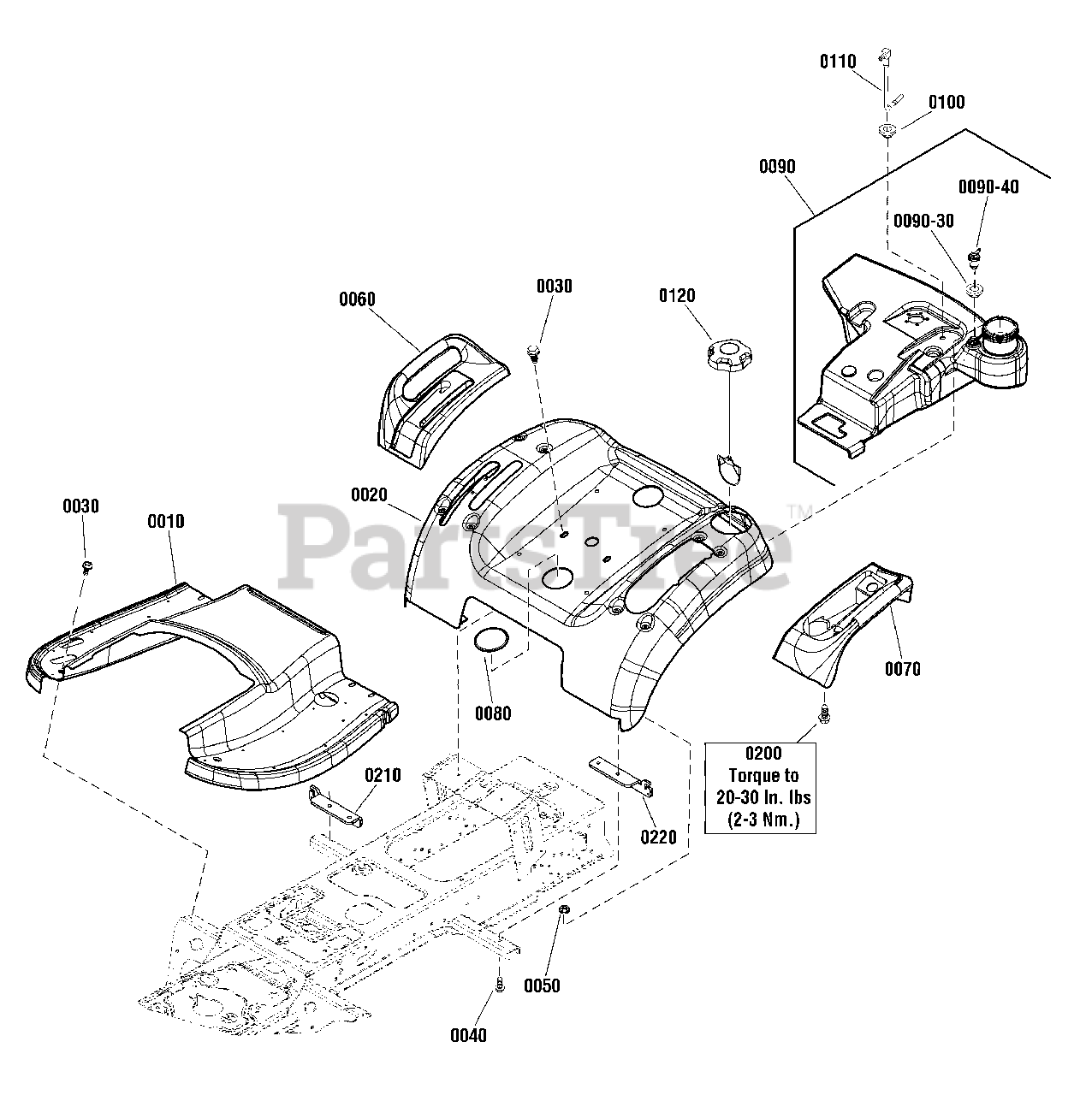

Seat Deck Group Parts Diagram

  • Title

0010

Snapper 1722105DSM

TUNNEL

$201.99

$

Usually ships in 2-12 days

0

0020

Snapper 1722106DSM

DECK, Seat

$512.99

$

Usually ships in 2-12 days

0

0030

Snapper 1930601SM

SCREW, Hex Washer Head, Taptite,5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0040

Snapper 770697

SCREW, Hex Flange, Whiz Lock, Dog Point, 5/16-18 x 1

$

$

Not available

0050

Snapper 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0060

Snapper 1722108SM

POD, RH
(Superseded to 1687790YP)

$103.99

$

Usually ships in 2-12 days

0

0070

Snapper 1729711SM

POD, With Cup Holder, LH
(Superseded to 1687789YP)

$103.99

$

Usually ships in 2-12 days

0

0080

Snapper 1722309SM

PLUG, Hole

$5.99

$

In Stock, Qty 11

0

0090

Snapper 1751622YP

TANK, Fuel

$365.99

$

Usually ships in 2-12 days

0

0090-30

Snapper 799624

GROMMET

$8.99

$

Usually ships in 2-12 days

0

0090-40

Snapper 7104638YP

REMOTE VENT ASSY, No Valve

$

$

Not available

0100

Snapper 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 10

0

0110

Snapper 1726902SM

TUBE & ELBOW ASMY, Fuel Line w/Screen
(Superseded to 1757609YP)

$19.99

$

Usually ships in 2-12 days

0

0120

Snapper 5103005YP

FUEL CAP
(Superseded to 1761224YP)

$48.99

$

In Stock, only 1 left!

0

0200

Snapper 2860664SM

SCREW, Conical Washer, 1/4-20 x 7/8 Dog Point

$5.99

$

In Stock, only 2 left!

0

0210

Snapper 1727102ASM

HANGER, RH

$30.99

$

Usually ships in 2-12 days

0

0220

Snapper 1727103ASM

HANGER, LH

$24.99

$

Usually ships in 2-12 days

0
