YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Lift Adjustment Parts Diagram

Yard Tractor

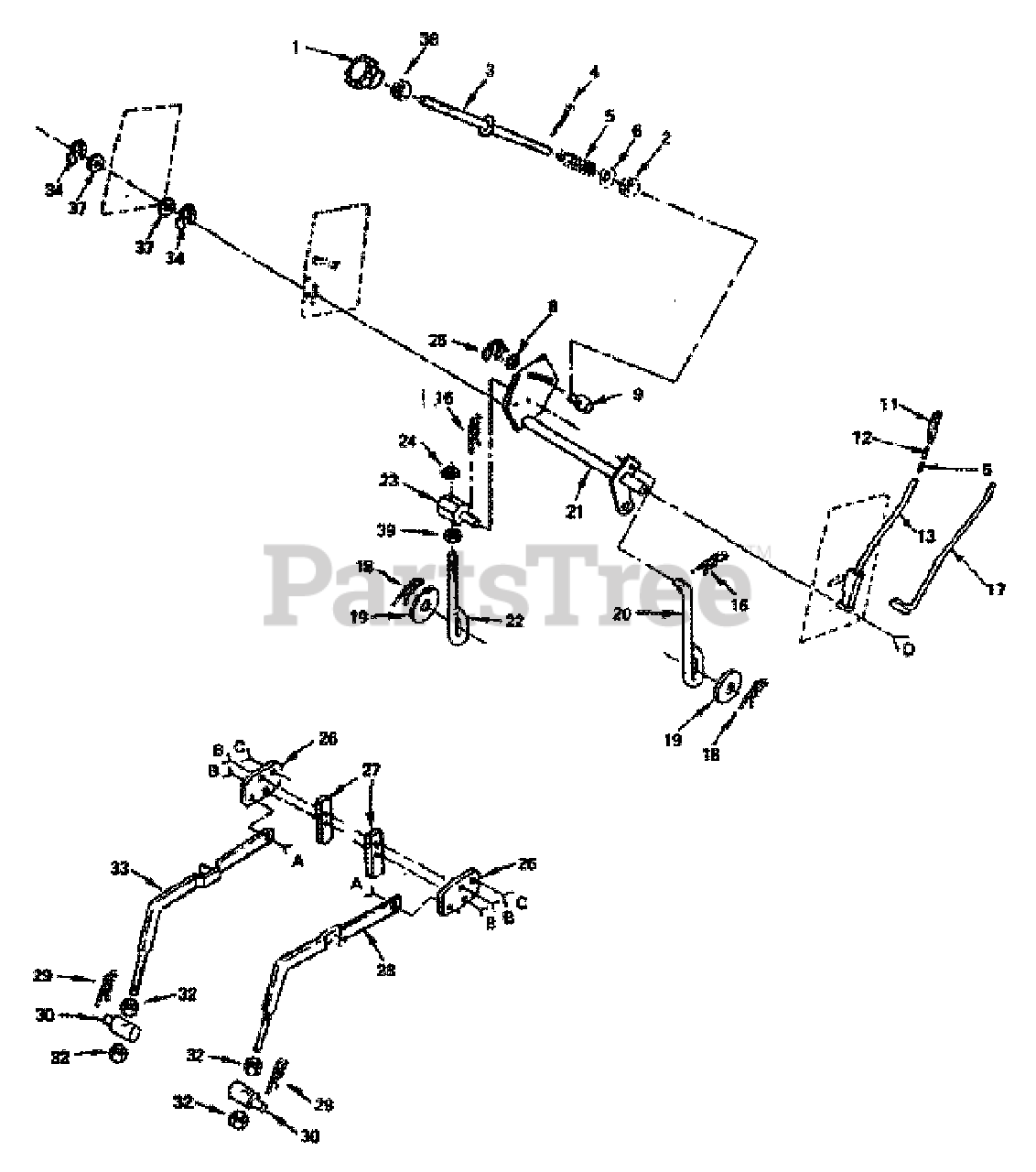

Lift Adjustment Parts Diagram

  • Title

1

Husqvarna 532121891

Knob, Depth Adjustment

$

$

Not available

2

Nut - Hex 3/8 - 16

$

$

Not available

3

Husqvarna 532110729

Rod - Adjust - Lid

$

$

Not available

4

Pin-Cotter 3/32 x 1/2

$

$

Not available

5

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

6

Washer 13/32 x 5/8 x 16 Ga.

$

$

Not available

7

Nut - Lock 3/8- 16

$

$

Not available

8

Washer 15/32 x 3/4 x 16Ga.

$

$

Not available

9

Husqvarna 532110810

Trunnion

$21.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532105848

Bob - Shoulder 3/8 - 16

$

$

Not available

11

Husqvarna 532109413

Grip Handle

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532122364

Plunger- Lever
(Superseded to 532125925)

$

$

Not available

13

Husqvarna 532121002

Lever - Lift
(Superseded to 532123096)

Note: (Includes Key No.17)

$

$

Not available

14

Husqvarna 532110739

Spring Washer

$4.99

$

Usually ships in 3-10 days

0

15

Center Lock Flange Nut 3/8 x 16

$

$

Not available

16

Husqvarna 532124670

Retainer - Spring

$

$

Not available

17

Husqvarna 532121006

Rod- Lever

$34.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532004921

Retainer Spring

$6.49

$

In Stock, only 1 left!

0

19

Washer 17/32 x 15/16 x 16 Ga.

$

$

Not available

20

Husqvarna 532110029

Link - Lift

$

$

Not available

21

Husqvarna 532124517

Shaft- Lift

$

$

Not available

22

Husqvarna 532110448

Link Lift - Adjust

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532110447

Trunnion - Lid
(Superseded to 532132793)

$

$

Not available

24

Nut - Lock 7/16- 14

$

$

Not available

25

Husqvarna 812000037

Klip Ring

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532105864

Bracket - Suspension

$

$

Not available

27

UNKNOWN

$

$

Not available

28

Husqvarna 532121598

Arm- Suspension R.H.

$

$

Not available

29

Husqvarna 532009135

Retainer- Spring

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532106308

Lift- Lower
(Superseded to 532175689)

$

$

Not available

32

Nut- Hex Fin.1/2- 13

$

$

Not available

33

Husqvarna 532121599

Arm - Suspension - L.H.

$

$

Not available

34

Husqvarna 812000022

E - Ring

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna 872140606

Bolt- Carriage 3/8- 16 x 3/4

$

$

Not available

37

Washer 29/32 x 1 - 1/4 x 16 Ga.

$

$

Not available

38

Husqvarna 532110807

Nut - Special

$

$

Not available

39

Nut, Hex Jam 3/8 x 16 UNC

$

$

Not available

40

Bolt - Hex 3/8 - 16 x 1 - 1/2

$

$

Not available

41

Husqvarna 532124526

Button.Plunger
(Superseded to 532125925)

$

$

Not available

42

Husqvarna 532123934

Scale.Height.Indicator

$

$

Not available

43

Husqvarna 532124763

Pointer.Height.Indicator
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0
