YTH 180 (954001082-A) - Husqvarna Yard Tractor (1994-07) Chassis And Enclosures Parts Diagram

Yard Tractor

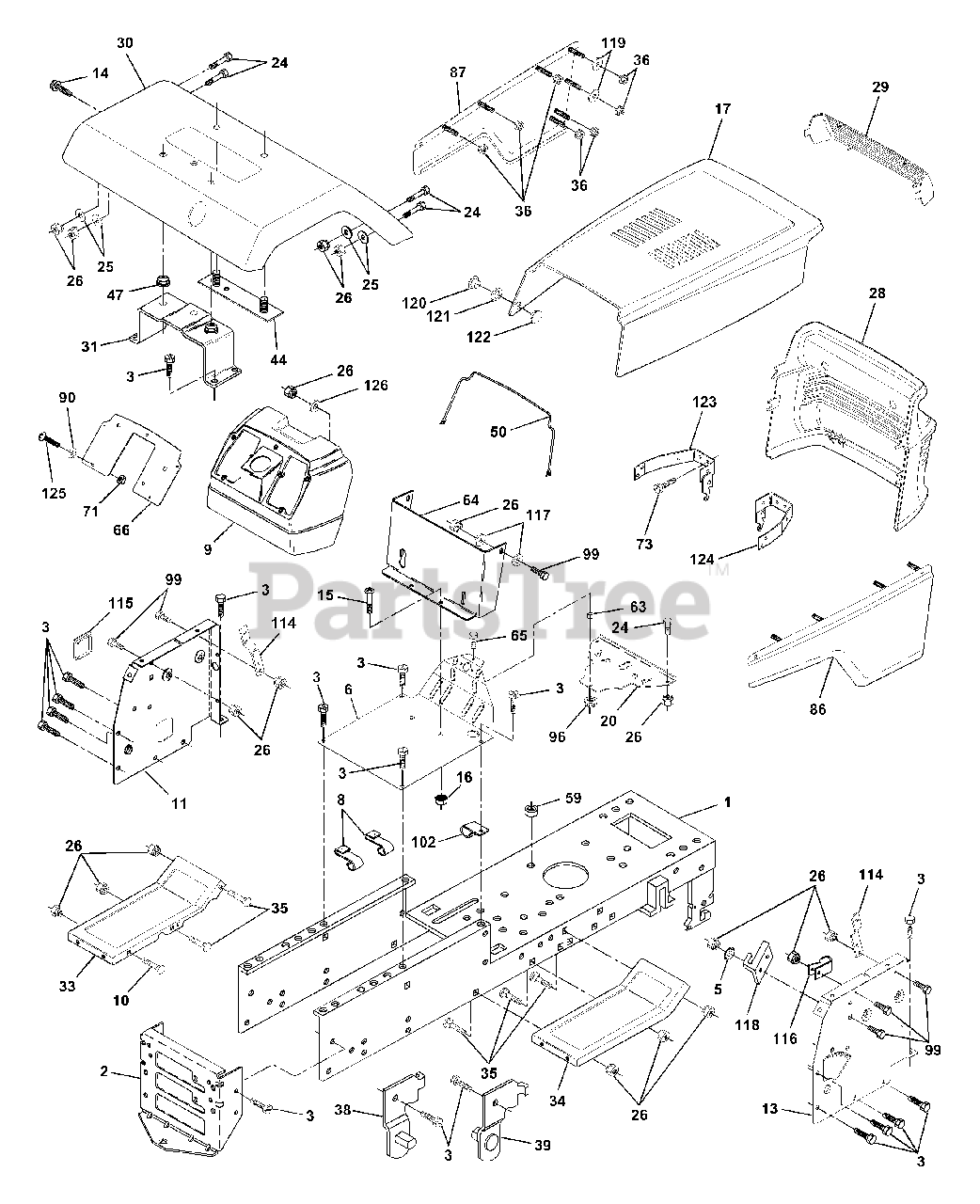

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532140341

Chassis Weldment 12 ga 38/42
(Superseded to 532145501)

$

$

Not available

2

Husqvarna 532140356

Drawbar Stretch
(Superseded to 532145009)

$

$

Not available

3

Husqvarna 817490612

Screw Thdrol 3/8 - 16 x 3/4 Ty-TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

6

Husqvarna 532127543

Saddle Slkscr

$

$

Not available

8

Husqvarna 532126471

Clip Insulator

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532140452

Dash Black Hole "a" 88

$

$

Not available

10

Husqvarna 872140608

Bolt Carriage
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

11

Husqvarna 532136967

Panel Pnt Dash Lh

$

$

Not available

13

Husqvarna 532136970

Panel Pnt Dash Rh

$

$

Not available

14

Husqvarna 817490608

Screw Thdrol 3/8 - 16 x Ty-TT

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 874180512

Screw Mach Trhd 5/16 - 18 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873510500

Nut Keps 5/16 - 18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532125454

Hood Pnt

$

$

Not available

20

Husqvarna 532140181

Plate Pnt Sprt Battery (blk)

$

$

Not available

24

Husqvarna 874780616

Bolt Hex 3/8 - 16 x 3/4

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 873800600

Nut Lock 3/8
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532127325

Grille YT GT Husqvarna
(Superseded to 532157236)

$

$

Not available

29

Husqvarna 532124251

Lens Headlight Rh Smoked
(Superseded to 532157069)

$

$

Not available

30

Husqvarna 532141449

Fender Pnt
(Superseded to 532167270)

$

$

Not available

31

Husqvarna 532137113

Bracket Pnt Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532124899

Footrest Pnt Lh

$

$

Not available

34

Husqvarna 532124914

Footrest Pnt Th
(Superseded to 532145243)

$

$

Not available

35

Husqvarna 872110606

Bolt Rdhd Sht Sqnk 3/8 - 16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532139886

Bracket Asm Pivot Lh

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532139887

Bracket Asm Pivot Rh

$8.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532124250

Lens Headlight Lh Smoked
(Superseded to 532157068)

$

$

Not available

44

Husqvarna 532140675

Strap Asm. Fender

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532127316

Retainer

$

$

Not available

47

Husqvarna 532105531

Nut Push Nylon

$2.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532124130

Support Pnt Dash

$

$

Not available

51

Husqvarna 873800400

Nut Lock w/Insert 1/4-20 UNC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532110436

Bushing Snap Split
(Superseded to 532009151)

$

$

Not available

63

Husqvarna 532121236

Spacer Split 59/ x 1.25 Blk/zin

$

$

Not available

64

Husqvarna 532104805

Dash Pnt Lower

$

$

Not available

65

Husqvarna 874760532

Bolt Fin Hex 5/16 - 18 Unc x 2 Gr. 2

$2.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532141626

Plate Silkscreened Dash
(Superseded to 532140130)

$

$

Not available

67

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 873510400

Nut Keps Hex 1/4 - 20 UNC
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532106784

Strap Asm Pnt Hinge Rear (blk)

$

$

Not available

70

Husqvarna 532104618

Strap Asm Pnt Hinge Front

$

$

Not available

71

Husqvarna 873640400

Nut Keps Blk Hex 1/4-20 UNC

$

$

Not available

72

Husqvarna 532124574

Support Asm Grille

$

$

Not available

74

Husqvarna 873680600

Nut Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532123481

Bolt, Shoulder 1/4 - 20 UNC
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

76

Husqvarna 874780620

Botl Fin Hex 3/8 - 16 Unc x 1-1/4
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

77

Husqvarna 874191008

Screw Mach Cr Pan #10-24 x 1/2
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

78

Husqvarna 810071000

Washer Lock #10

$4.99

$

In Stock, Qty 20+

0

79

Husqvarna 532125004

Nut Weld .327/.304 #10 - 24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

80

Husqvarna 532109808

Latch Chute Blk

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532123198

Nut Plastic Locking Wng 1/4 - 20
(Superseded to 532146525)

$

$

Not available

82

Husqvarna 874981020

Screw Mach Cr Pan #10 - 24 x 1-1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 16

0

83

Husqvarna 532007206

Spacer Split #10 x 3/4 Cad/Zin

$7.49

$

In Stock, Qty 15

0

84

Husqvarna 819070818

Washer 7/32 x 1/2 x 18 Ga

$9.49

$

Usually ships in 3-10 days

0

85

Husqvarna 873731000

Nut Keps #10 - 24 Unc
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532143365

Panel Pnt Rh Side
(Superseded to 532140677)

$

$

Not available

87

Husqvarna 532143364

Panel Pnt Lh Side
(Superseded to 532140676)

$

$

Not available

90

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga

$

$

Not available

91

Husqvarna 873220400

Nut Fin Hex 1/4 - 20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

92

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

93

Husqvarna 532127320

Grille Asm
(Superseded to 532157236)

$

$

Not available

94

Husqvarna 532110357

Cap Washer Snap Nat.

$

$

Not available

95

Husqvarna 532110356

Cap Snap Black

$3.99

$

Usually ships in 3-10 days

0

96

Husqvarna 873800500

Nut Lock Hex w/ins 5/16 - 18 Unc P

$3.99

$

Usually ships in 3-10 days

0

97

Husqvarna 532110853

Bracket Asm Fr Pvt Hinge Lh

$

$

Not available

98

Husqvarna 532110852

Bracket Asm Fr. Pvt Hinge Rh

$

$

Not available

99

Husqvarna 874760616

Bolt Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

109

Husqvarna 532141461

Bracket Extension Bumper
(Superseded to 532170310)

$

$

Not available

110

Husqvarna 532143679

Plug Plastic

$2.99

$

Usually ships in 3-10 days

0

111

Husqvarna 872140610

Bolt Carriage 3/8-16 x 1-1/4
(Superseded to 583611601)

$

$

Not available

112

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

113

Husqvarna 532141460

Bumper Asm.
(Superseded to 954040608)

$

$

Not available

Husqvarna 532121794

Cover Access Black Square

$

$

Not available

Husqvarna 532125085

Plug Dash Blk 5009 Dis. E. Lift

$

$

Not available
