YTH 180 (954140010-G) - Husqvarna Yard Tractor (1998-10) CHASSIS & ENCLOSURES Parts Diagram

Yard Tractor

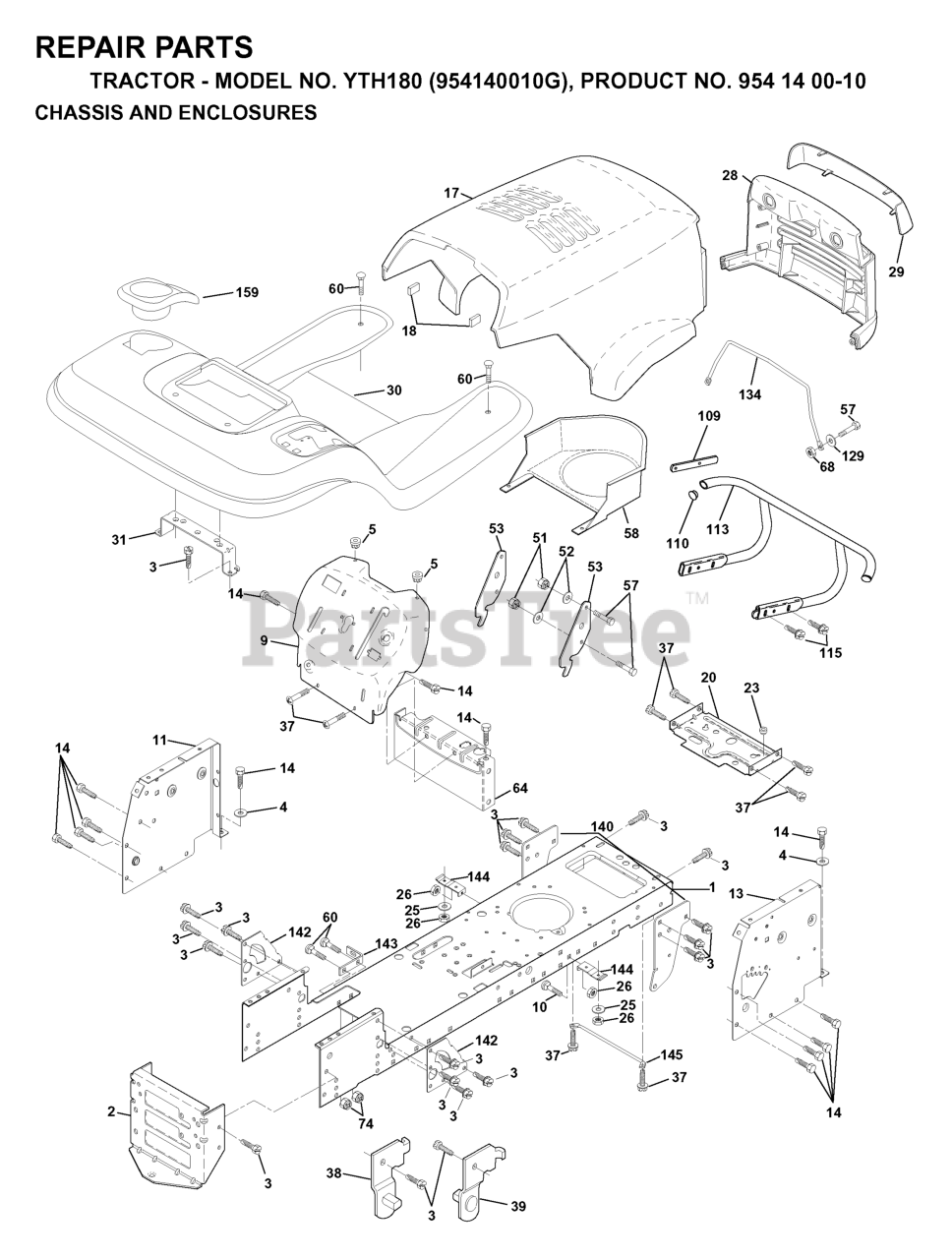

CHASSIS & ENCLOSURES Parts Diagram

  • Title

20

Husqvarna 532156437

PLATE MTG
(Superseded to 532180679)

$10.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532139886

BRACKET LH PIVOT

$8.99

$

Usually ships in 3-10 days

0

68

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

129

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532165867

PLATE
(Superseded to 532175702)

$7.49

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

110

Husqvarna 532143679

PLUG PLASTIC

$2.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532139976

BRACKET.SUPPORT.FENDER

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532165380

LENS
(Superseded to 532149777)

$

$

Not available

134

Husqvarna 532160219

ROD SUPPORT HOOD LT/PL HUS.

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532150067

BRACKET PNT PICK OFF LT/PL

$

$

Not available

28

Husqvarna 532165379

GRILL
(Superseded to 532156880)

$

$

Not available

11

Husqvarna 532155927

PANEL DASH LH
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532160392

CHASSIS

$122.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532153913

PANEL

$

$

Not available

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, Qty 5

0

23

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$6.99

$

In Stock, only 3 left!

0

58

Husqvarna 532151171

AIR DUCT

$47.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532141461

BRACKET BUMPER
(Superseded to 532170310)

$

$

Not available

64

Husqvarna 532154798

DASH LOWER

$31.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532154207

BRACKET FOOTREST
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

159

Husqvarna 532166508

CUPHOLDER
(Superseded to 532155123)

$

$

Not available

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532156490

DASH PANEL
(Superseded to 532154794)

$

$

Not available

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

39

Husqvarna 532139887

BRACKET RH PIVOT

$8.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532140356

STRETCH DRAWBAR
(Superseded to 532145009)

$

$

Not available

115

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

60

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

$

$

Not available

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

143

Husqvarna 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.49

$

In Stock, Qty 10

0

140

Husqvarna 532158418

BRACKET SUSPENSION FRONT

$

$

Not available

4

Husqvarna 819131216

Washer 13/32 X 3/4 X 16 Ga.

$

$

Not available

74

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0
