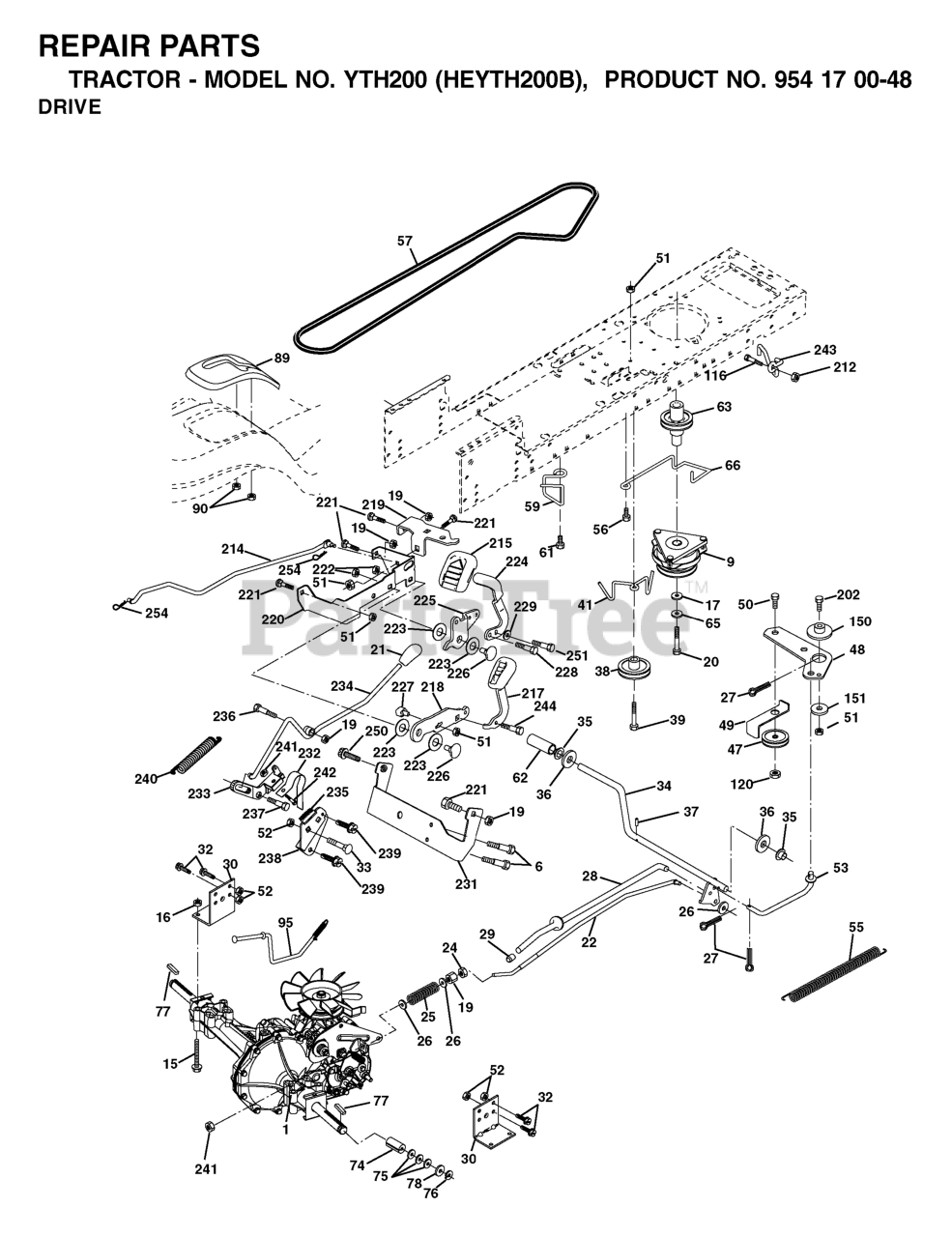

YTH 200 (954170048-B) - Husqvarna Yard Tractor (2002-06) DRIVE Parts Diagram

Yard Tractor

DRIVE Parts Diagram

  • Title

251

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532169691

KEEPER, BELT CENTER

$26.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 874760648

BOLT
(Superseded to 874780648)

$

$

Not available

220

Husqvarna 532174711

BRACKET MTG.PDL CONTROL

$14.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532180825

ROD BYPASS

$

$

Not available

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

231

Husqvarna 532174573

STRAP TORQUE
(Superseded to 583279501)

$9.49

$

Usually ships in 3-10 days

0

218

Husqvarna 532174713

ARM CONTROL PEDAL REVERSE

$

$

Not available

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

237

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

215

Husqvarna 532175646

COVER PEDAL FORWARD

$9.99

$

Usually ships in 3-10 days

0

238

Husqvarna 532175807

ARM MTG.CRUISE SECTOR

$

$

Not available

36

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 4 left!

0

34

Husqvarna 532175578

SHAFT, FOOT PEDAL

$30.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532175556

KEEPER, BELT IDLER

$9.99

$

In Stock, only 1 left!

0

226

Husqvarna 532174902

BOLT PIVOT SPACER

$

$

Not available

116

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 9

0

22

Husqvarna 532175896

ROD.BRAKE.HG-0510.PEDAL.CONTRL

$21.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532180220

TH210XP

$

$

Not available

222

Husqvarna 873680700

Nut, Crownlock Hex 7/16-14 unc

$2.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 7

0

6

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532140294

DRIVE BELT, LTH & YTH TRACTORS

$36.99

$

In Stock, Qty 20+

0

35

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, only 1 left!

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 5

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532179032

BOLT SHOULDER
(Superseded to 532171873)

$6.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

63

Husqvarna 532174607

PULLEY- ENGINE

$66.99

$

In Stock, only 1 left!

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

30

Husqvarna 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

219

Husqvarna 532174839

BRACKET FREST PDL

$9.99

$

Usually ships in 3-10 days

0

224

Husqvarna 532174736

PEDAL FORWARD

$62.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 7

0

61

Husqvarna 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

$

$

Not available

232

Husqvarna 532175570

ACUATOR CRUISE DISENGAGE

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532174857

SECTOR CONTROL CRUISE

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 17

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

38

Husqvarna 532179114

PULLEY IDLER COMPOSITE

$31.99

$

In Stock, Qty 20+

0

243

Husqvarna 532178289

BRKT ASM MTNG
(Superseded to 532190736)

$40.99

$

In Stock, only 3 left!

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

225

Husqvarna 532174712

ARM CONTROL PEDAL FORWARD

$

$

Not available

51

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532181494

PAD.FOOTREST
(Superseded to 583694001)

$27.99

$

Usually ships in 3-10 days

0

227

Husqvarna 532174710

CAM REVERSE PEDAL LT

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 532181454

NEEDS DESCRIPTION

$

$

Not available

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

241

Husqvarna 873930400

NUT CENTERLOCK
(Superseded to 873690400)

$3.99

$

In Stock, Qty 20+

0

229

Husqvarna 532176451

WASHER.SERRATED.5/16X.75

$4.99

$

Usually ships in 3-10 days

0

244

Husqvarna 532166880

SCREW

$6.49

$

Usually ships in 3-10 days

0

214

Husqvarna 532174735

LINK TRANSAXLE

$48.99

$

Usually ships in 3-10 days

0

239

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

150

Husqvarna 532175456

SPACER, RETAINER

$

$

Not available

250

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

In Stock, only 1 left!

0

234

Husqvarna 532174858

LEVER CONTROL CRUISE

$17.99

$

Usually ships in 3-10 days

0

236

Husqvarna 532128903

BOLT

$6.49

$

In Stock, only 3 left!

0

90

Husqvarna 532124346

NUT.PUSH.3/16

$4.99

$

In Stock, only 1 left!

0

75

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$6.99

$

In Stock, Qty 5

0

202

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

254

Husqvarna 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

223

Husqvarna 532174840

WASHER NYLON

$

$

Not available

29

Husqvarna 532071673

PLUNGER CAP

$4.99

$

In Stock, only 1 left!

0

240

Husqvarna 532175610

SPRING RETURN CRUISE CONTROL

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

233

Husqvarna 532174856

PAWL CONTROL CRUISE

$

$

Not available

76

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 14

0

217

Husqvarna 532179433

PEDAL REVERSE

$

$

Not available

221

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

$

$

Not available

242

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days
