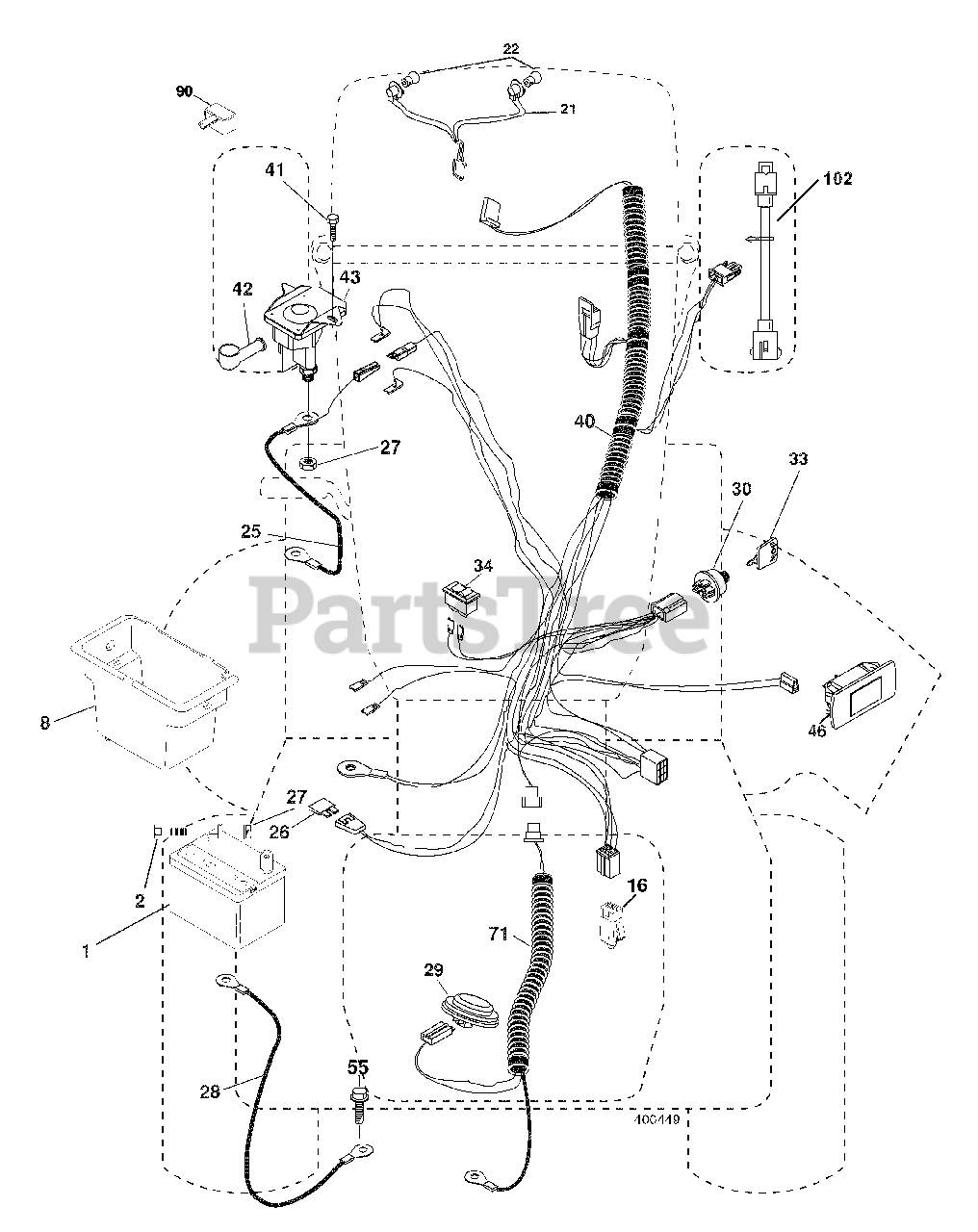

YTH 20K46 (960430033-00) - Husqvarna 46" Yard Tractor (2006-11) Electrical Parts Diagram

46" Yard Tractor

Electrical Parts Diagram

  • Title

1

Battery

$

$

Not available

2

Bolt Hex Head 1/4-20 x 3/4

$

$

Not available

8

Box Battery

$

$

Not available

16

Switch Interlock Push-In

$

$

Not available

21

Harness Socket Light W/4152J

$

$

Not available

22

Bulb Light

$

$

Not available

25

Cable Starter

$

$

Not available

26

Fuse

$

$

Not available

27

Nut Keps Hex 1/4-20 unc

$

$

Not available

28

Cable, Ground

$

$

Not available

29

Switch, Seat

$

$

Not available

30

Switch, Ign

$

$

Not available

33

Key, Ignition

$

$

Not available

34

Switch Light / Reset

$

$

Not available

40

Harness Ign.

$

$

Not available

41

Screw Thd Cut 1/4-20 x 1/2

$

$

Not available

42

Cover, Terminal

$

$

Not available

43

Solenoid

$

$

Not available

46

Gauge Servicereminder Hrmtr

$

$

Not available

55

Screw Thdrol 5/16-18 x 3/4 TYTT

$

$

Not available

71

Harness Ign. Dash

$

$

Not available

90

Cover Terminal

$

$

Not available

102

Harness Pigtail

$

$

Not available
